The invisible workhorse: Demystifying the central air handler unit

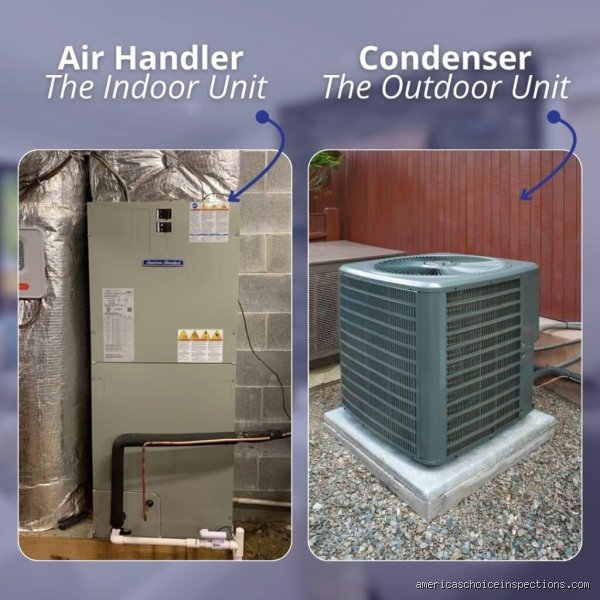

An air handler is not just a fancy metal box. It is the literal distribution hub of your indoor climate. While the outdoor AC unit grabs all the attention—mostly because it makes a racket in the backyard—the indoor air handler does the heavy lifting of filtration, dehumidification, and air movement. Inside that galvanized steel chassis, you will find a blower motor, an evaporator coil, an electronic expansion valve, and your air filters.
Air handler vs. Furnace: Clearing up the common identity crisis
Where things get complicated for the average homeowner is telling an air handler apart from a standard gas furnace. They look remarkably similar at a glance. But here is the distinction: a furnace burns fossil fuels to create heat, whereas a true air handler relies on a blower fan paired with an indoor coil connected to an external heat pump or air conditioner. I once inspected a home in Chicago where the owner insisted they had an air handler in the basement, yet a quick look revealed a 80% AFUE gas valve and a PVC exhaust pipe. If you have a heat pump system, that indoor unit is your air handler; if you see gas lines and a flue pipe, you are dealing with a furnace. There's no consensus on whether one setup inherently outlasts the other, but it's unclear because installation quality matters far more than the equipment type itself.
The architecture of airflow: Upflow, downflow, and horizontal configurations
How the unit sits determines how the air moves. An upflow configuration pulls cool air from the bottom and blasts it out the top, a setup you almost always see when the system is anchored on a concrete basement floor. But what happens when your mechanical room is in the attic? In that scenario, you use a horizontal configuration where the unit lies flat on its side, or a downflow setup that pushes air straight down into the living spaces below. It is a game of gravity and static pressure, where HVAC technicians must match the physical cabinet orientation to the layout of your home’s ductwork matrix.
Geographic anomalies: Where is the air handler located in a house based on your zip code?
Walk into a suburban home in Phoenix and you will likely find the air handler baking in a 140°F attic space, wrapped in thick insulation. Do the same in Boston, and it is almost certainly sitting comfortably next to the water heater on a damp basement slab. Why the massive discrepancy? It all comes down to local building codes, regional architectural traditions, and the historical evolution of residential construction practices across the United States.
The subterranean standards of the northeast and Midwest
In colder northern climates, basements are standard because foundations must be dug below the frost line, which can easily be 4 feet deep in places like Minneapolis. Builders naturally took advantage of this empty underground footprint to house noisy mechanical systems. Placing the air handler here keeps it within the thermal envelope of the home. This means the system doesn't have to fight extreme ambient temperatures just to do its job. Yet, this convenience comes with a hidden tax: basements are notorious for high relative humidity, often exceeding 65% RH in the summer, which forces the air handler's internal components to work harder against moisture-induced corrosion.
Slab foundations and the attic compromise of the Sunbelt
But head south, where high water tables and sandy soils make digging a basement financially ruinous, and homes are overwhelmingly built on concrete slabs. Without a basement, where do you put a 150-pound mechanical assembly? The attic became the default dump site. It was cheap for builders, out of sight for homeowners, and freed up valuable square footage inside the actual living areas. But putting a cooling machine in the hottest part of a house defies basic thermodynamic logic. When an attic hits scorching temperatures in July, the thermal gradient between the ambient air and the 55°F conditioned air inside the ductwork creates an intense energy drain, dropping system efficiency by up to 15% according to some regional energy audits.
The utility closet and the garage: High-Traffic hideouts
For homes without attics or basements, architects had to get creative, leading to the rise of the dedicated utility closet or the garage alcove installation. These locations offer a major perk: easy access. But they introduce a whole new set of headaches that can compromise your indoor air quality if you aren't paying close attention.
The hallway closet: A High-Density solution with acoustic consequences
Common in apartments, condominiums, and mid-century modern ranches, the interior utility closet centralizes the air handler. It sits right in the middle of the floor plan, which shortens duct runs and balances static pressure across the system. But here is the catch, noise. A blower motor spinning at 1,200 RPM just three feet from your living room television can sound like a jet taking off. Designers try to mitigate this with acoustic louvers and heavy drywall, but the issue remains that proximity equals noise, which explains why many homeowners loathe this particular layout choice.
The garage alcove: Dust, fumes, and the threat of backdrafting
Then we have the garage garage installation, a favorite in California and Florida. It seems perfect on paper because it takes up zero interior living space and makes filter changes incredibly easy. But things get risky when you consider what we store in our garages: cars, lawnmowers, gasoline canisters, and chemical fertilizers. If the return plenum of your air handler has even minor leaks, and studies show the average duct system leaks about 10% to 20% of its air, it can suck dangerous carbon monoxide fumes and volatile organic compounds straight out of the garage and blast them into your bedrooms. Because of this structural hazard, modern building codes mandate that garage-mounted air handlers must be elevated on a platform at least 18 inches off the ground to prevent the ignition of flammable vapors that pool near the floor.
Comparing accessibility and efficiency across every major location
Every single spot inside a house involves a fundamental trade-off between how easy the machine is to service and how efficiently it spins out cold or warm air. There is no perfect, holy grail location. Instead, it is a series of compromises that homeowners have to live with for the lifespan of the equipment.
The spatial dilemma: Maintenance convenience vs. Thermal performance
Consider the stark contrast between an attic install and a basement install. An HVAC technician trying to service a horizontal air handler in a low-clearance attic in August is going to charge you a premium just for enduring the miserable working conditions, and who can blame them? If the condensate drain line clogs up in an attic, that excess water cascades down through your ceiling drywall, causing thousands of dollars in structural damage. In a basement or utility closet, that same leak just flows harmlessly toward a floor drain. So the attic scores terribly for maintenance but wins on keeping mechanical clutter out of sight, while the basement wins on thermal stability but loses if the area ever floods during a heavy storm. It is a delicate balancing act where structural design choices made decades ago dictate your current monthly utility bills.
Common mistakes and misconceptions
The "out of sight, out of mind" trap
Homeowners often treat their HVAC equipment like an old storage trunk. You chuck it into the darkest corner of the crawl space and forget it exists. The problem is, an air handler needs room to breathe and, more importantly, room to be serviced. Mechanics routinely encounter units jammed tightly against drywall or buried under mountain ranges of holiday decorations. When the evaporator coil inevitably leaks, the technician faces a logistical nightmare. Because if they cannot remove the access panel, your repair bill skyrockets.
Ignoring the laws of thermodynamics
Another frequent blunder involves placing the unit in an unconditioned attic without adequate thermal protection. People assume insulation under the roof deck is a luxury. But baking an indoor blower unit in 130-degree summer heat forces the system to work twice as hard. The thermal transfer through the sheet metal casing completely saps efficiency.
Confusing the air handler with the furnace
They are not interchangeable terms. A furnace burns fossil fuels to generate heat. Conversely, the air handler utilizes an internal blower motor to circulate conditioned air through a network of ducts, regulating temperature via an attached heat pump or air conditioner coil.
The critical impact of static pressure
Why duct geometry dictates your layout
Airflow is lazy. It prefers the path of least resistance. When planning where is the air handler located in a house, amateur installers frequently overlook static pressure metrics. If you position the cabinet too close to a sharp, 90-degree duct elbow, you create massive turbulence. This bottleneck chokes the system. Consequently, the blower motor pulls excessive amperage, leading to premature component failure.
The condensation catastrophe
Expert installers always obsess over drainage. Did you know a standard five-ton residential system can pull over twenty gallons of water per day out of humid air? If the unit sits horizontally in a drop ceiling without a secondary drain pan and an emergency float switch, you are begging for a collapsed ceiling. A small, five-dollar plastic switch could save you ten thousand dollars in drywall restoration.Frequently asked questions
Can you locate an air handler in a garage safely?
Yes, but you must adhere to strict building codes to prevent deadly carbon monoxide pulling into your living spaces. When considering where is the air handler located in a house with an attached garage, the unit must be elevated on a platform at least eighteen inches above the floor to mitigate the risk of igniting spilled gasoline vapors. The return ductwork must be completely airtight, utilizing specialized mastic sealant rather than standard foil tape. Data from residential safety studies indicates that leaky garage returns can introduce up to thirty percent more particulate matter, including toxic vehicle exhaust, directly into your indoor breathing air.How much clearance space does a typical air handler require?
A standard residential cabinet needs a bare minimum of twenty-four inches of front clearance for basic filter replacements and control board access. However, top-tier HVAC technicians advocate for thirty-six inches of unobstructed space to allow for total coil removal. If your unit is crammed into a closet, the door must feature louvered vents providing at least one square inch of free area per 1,000 BTU per hour of system capacity. Neglecting these spatial dimensions ensures future labor costs will double when a component fails.Does the location of the air handler affect my monthly utility bills?
Absolutely, because thermal line losses in unconditioned spaces degrade system performance significantly. Field tests show that an air handler operating in a scorching attic can lose up to fifteen percent of its cooling capacity through the cabinet walls alone. This forces the compressor to run longer cycles, which explains why identical homes can have vastly different energy expenditures. Moving the apparatus into a centrally located, conditioned utility closet invariably slashes energy consumption.The definitive verdict on equipment placement
Stop letting architects relegate your mechanical system to the worst nooks of the floor plan. The collective obsession with hiding HVAC hardware has compromised indoor air quality and bloated utility bills for decades. We must prioritize equipment accessibility and thermal efficiency over minor aesthetic preferences. If you are building or remodeling, fight tooth and nail to place the primary air distribution hub inside the conditioned envelope of the home. It is a hill worth dying on. Your wallet, your service technician, and your lungs will thank you for generations to come.
