Decoding the HVAC Matrix: What Exactly Is an Air Handler and Where Does It Live?
To grasp why the air handler claims the indoors as its territory, we have to look at what it actually does. This is not just a fan in a box. It is the central nervous system of your indoor climate, a massive sheet-metal enclosure containing the blower motor, the evaporator coil, the filtration racks, and the integrated circuit boards that talk to your thermostat.The Indoor Sanctuary of the Blower Assembly
If you placed this machinery outside, the local humidity would wreck the electronics within a single season. Think about it. The indoor environment protects sensitive components from ambient moisture infiltration and extreme temperature swings. Inside, usually in a dedicated utility closet or an unconditioned attic space, the air handler pulls stagnant air from your living rooms through return ducts, forces it across a freezing or scorching coil, and pushes it back out. The thing is, people don't think about this enough: every cubic foot of air you breathe passes through this indoor hub multiple times an hour.The Split-System Divide That Fools Homeowners

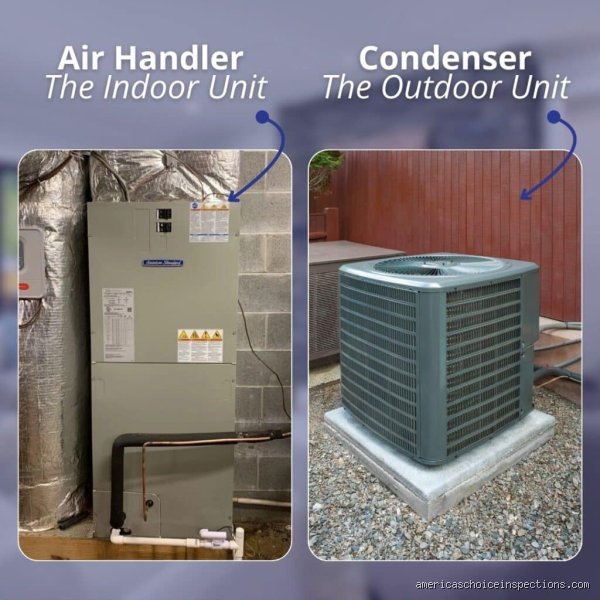

Where it gets tricky for the average homeowner is the concept of a split system, which happens to be the most common configuration across North American residential architecture. In a standard split-system air conditioner or heat pump installation, the workload is divided right down the middle. You have the outdoor condenser unit—the loud monster that rejects heat—and the indoor air handler that manages airflow. They are connected by a pair of copper refrigerant lines cutting through your foundation wall. I am always amazed at how many people view these as two separate, independent appliances rather than two halves of a single, closed-loop machine.The Technical Geography: Common Indoor Locations and Why They Matter
Where your builder decided to shove your air handler dictates not just how long the system lasts, but how much you pay every month in utility bills. It is a game of architectural compromises.Attic Installations: The Space-Saving Cost Trap
In the American South, particularly in homes built during the construction boom of the 1990s and 2000s, attics became the default dumping ground for air handlers. It makes sense on paper because it frees up valuable square footage in the living area below. Yet, from an engineering standpoint, placing a cooling machine in a space that regularly reaches 130 degrees Fahrenheit in July is borderline masochistic. The thermal stress on the sheet metal housing is immense. As a result: your system has to work twice as hard just to keep the air inside the cabinet cool before it even reaches your bedroom ducts.Basements and Closets: The Structural Sweet Spots
Go up to New England or parts of the Midwest, and the geography shifts entirely toward full basements or dedicated first-floor utility closets. This is where the air handler truly thrives. A basement offers a stable, conditioned or semi-conditioned baseline temperature—usually hovering around 55 to 65 degrees Fahrenheit year-round—which drastically reduces standby thermal loss. But there is a catch. If your air handler is in a tight hallway closet, the acoustic dampening becomes your primary headache, as the hum of a variable-speed blower motor at midnight can easily keep a light sleeper awake.Crawlspaces: The Forgotten Underworld
Then we have the crawlspace configuration, a layout nightmare often found in older homes throughout the Pacific Northwest. Here, the air handler is suspended horizontally beneath your floorboards. It is an environment rife with humidity risks, rodent threats, and structural challenges. If a condensate drain line clogs in an attic, your ceiling ruins; if it clogs in a crawlspace, you might not notice the rot for three years until your living room floor starts sagging.Anatomy of the Machine: Inside the Galvanized Steel Box
To appreciate why this box stays indoors, we need to strip away the outer panels and examine the high-stakes physics happening inside the cabinet.The Evaporator Coil and the Magic of Heat Transfer
The heart of the indoor air handler is the evaporator coil, a dense maze of copper or aluminum tubing interlaced with razor-thin fins. When your system is cooling, freezing liquid refrigerant enters this coil. As the blower forces warm, humid air from your house across these fins, the refrigerant absorbs the heat energy, causing the moisture in the air to condense on the coil surface just like sweat on a cold can of soda. This brings us to a critical piece of engineering: the condensate pan and drain line. Because this dehumidification process pulls gallons of water out of your air daily, the unit requires a gravity-fed or pump-assisted drain system to channel that water safely outside. Imagine trying to manage that delicate balance of condensation and drainage if the unit were sitting crooked on a muddy patch of grass next to your driveway!The Blower Motor: From PSC to ECM Technology
Directly behind the coil sits the blower assembly, typically featuring a squirrel-cage fan wheel turned by an electric motor. Older homes still rely on standard Permanent Split Capacitor (PSC) motors, which are basic on-and-off switches that run at 100% capacity regardless of your home's actual needs. Modern installations, however, almost exclusively utilize Electronically Commutated Motors (ECM). These are smart, variable-speed beasts that can ramp down to 10% capacity to maintain a whisper-quiet, continuous flow of filtered air. That changes everything for your energy bill, but these microprocessors are highly sensitive to dust and voltage spikes, further cementing the absolute necessity of a protected indoor environment.When the Rules Blur: The Packaged Unit Exception
Now, this is where conventional wisdom gets turned completely on its head and experts occasionally argue over terminology. While we have established that a standard air handler stays inside, there is a major exception that accounts for roughly 15% of residential HVAC installations in the United States: the packaged system.The All-in-One Backyard Solution
Common in the desert Southwest and across many commercial properties, a packaged HVAC unit strips away the indoor-outdoor divide entirely. Everything—the compressor, the condenser coil, the evaporator coil, and the blower fan—is crammed into a single, massive weatherproof steel cabinet mounted either on the roof or on a heavy concrete pad in the yard.How Air Handling Shifts Outside in Packaged Setups
In this specific scenario, the air handling component technically lives outdoors. Huge, insulated supply and return air ducts plunge directly through your home’s exterior wall or roofline to connect the outdoor box to your indoor ceiling vents. It is a highly efficient use of interior space, except that you are now exposing your entire thermal exchange process to the whims of torrential rain, blistering sun, and freezing winters. The issue remains that while a packaged unit simplifies installation, it accelerates the aging process of the air handling components compared to their coddled, indoor-only split-system cousins.Common Pitfalls and the Muddled Identity of HVAC Hardware
The Myth of the Monolithic AC Cube
Homeowners routinely point at the roaring, metallic cube sitting on their backyard concrete pad and declare it the entire climate control apparatus. This is a massive blunder. That exterior box is merely the compressor and condenser coil, a mechanical brute designed solely for heat rejection. The actual air handler inside your residence operates in near-total anonymity until a filter clogs or a blower motor dies. Confusing the outdoor condenser with the indoor air handler leads to catastrophic communication breakdowns when ordering replacement parts or summoning emergency technicians during a heatwave. They are separate entities entirely.
The Package Unit Paradox
Except that sometimes, the lines blur entirely, plunging DIY enthusiasts into sheer confusion. In specific architectural setups—most notably across the American Southwest or in tight commercial footprints—engineers deploy what the industry calls a package unit. Here, the question of whether an air handler is inside or outside receives a confusing answer: it is both, crammed into a singular chassis bolted to the roof or a ground-level slab. But let's be clear: for over 85 percent of residential split-systems globally, the circulation machinery remains firmly indoors. Do not let niche architectural anomalies warp your understanding of standard residential infrastructure.
The Phantom Heat Pump Illusion
Why does this spatial confusion persist so stubbornly? Because a heat pump looks identical to a traditional air conditioner from the curb. Property owners assume a heat pump handles everything outdoors, yet the indoor air handler remains a non-negotiable requirement to distribute that conditioned air through the ductwork. If you ignore the indoor chassis, you neglect the very heart of your ventilation network.
The Latent Threat of Unconditioned Space Deployment
The Thermal Bleed of Attic Installations
Let us take a strong position on a pervasive, subpar building practice: shoving your air handling unit into an unventilated attic is an engineering tragedy. Builders love it because it saves valuable square footage in the living zone below, yet the financial penalty falls squarely on the homeowner. When summer temperatures scale the heights of 130 degrees Fahrenheit in a dark attic rafters zone, your air handler inside an unconditioned space must fight a brutal thermal battle before it even pushes air into your bedrooms. The radiant heat penetrating the thin sheet metal cabinet forces the system to work up to 20 percent harder than a basement-dwelling counterpart.
The Condensate Disaster Catalyst
The issue remains deeply tied to gravity and moisture management. An air handler operating in a humid environment extracts gallons of water from the air daily through its evaporator coil. When this process occurs above your ceiling, you are essentially dangling a ticking plumbing bomb over your drywall. Secondary drain pans fail, float switches jam, and as a result: thousands of dollars in water damage manifest as ugly brown circles on your living room ceiling. Keeping the unit within the thermal envelope—like a dedicated utility closet—drastically reduces these catastrophic failure rates.
Frequently Asked Questions
Can an air handler inside a garage suffer from vehicle exhaust contamination?
Absolutely, which explains why strict building codes regulate this specific placement layout. If the return plenum or the cabinet chassis itself develops even a minor microscopic breach, the negative pressure generated by a powerful 1200 CFM blower fan will greedily suck in ambient garage air. This means deadly carbon monoxide molecules and volatile organic compounds from stored paint thinner can be actively distributed into your master bedroom within minutes. To mitigate this invisible hazard, modern regulations demand the unit be elevated on a platform at least 18 inches above the garage floor, alongside mandatory, airtight mastic sealing on every single duct joint. Installing a dedicated, hardwired carbon monoxide detector right next to that interior air handler zone is the only smart move here.
What is the average lifespan difference between indoor and outdoor HVAC components?
The stark disparity in environmental exposure dictates a highly unequal survival rate for these paired components. While the outdoor condenser coil undergoes an unrelenting bombardment from driving rain, sub-zero snow, blazing UV radiation, and neighborhood dogs, the air handler inside enjoys a cushy, climate-controlled existence. Consequently, a well-maintained indoor blower configuration can easily push past 18 years of operational service. Conversely, their outdoor counterparts rarely survive past 12 to 15 years before salt air corrosion or compressor valve fatigue forces a total system replacement. This operational gap means you will likely swap your outdoor unit long before the interior air handler requires a trip to the scrap yard.
How much clearance does an indoor air handling cabinet require for proper maintenance?
Mechanical code is utterly unyielding when it comes to the physical real estate surrounding your indoor air distribution machinery. Technicians require a absolute minimum of 30 inches of clear working depth in front of the main access panels to safely slide out a failing blower motor or clean a fouled evaporator coil. Furthermore, the access doorway to the utility closet must be wide enough to physically extract the entire metal housing should a premature structural failure occur. Shoving brooms, holiday decorations, or chemical cleaning supplies into this designated clearance zone is a recipe for restricted airflow and potential fire hazards. Safe operations dictate treating that utility closet as a sacred, completely empty mechanical sanctuary.
The Final Verdict on Spatial Climate Dynamics
Clinging to the lazy assumption that your climate control infrastructure begins and ends with the noisy metal box sitting outside in the weeds is an expensive delusion. The true magic of residential comfort, air filtration, and humidity extraction occurs entirely away from the sun, buried deep within the structural anatomy of your home. We must stop letting poor architectural choices banish these sensitive air handler inside units to the brutal, scorching wilderness of unconditioned attics just to save a few measly square feet of closet space. Demand that your air circulation machinery resides within the actual insulated envelope of the property. Your monthly utility bills, your equipment lifespan, and your lungs will thank you for making that definitive spatial boundary non-negotiable.
