Demystifying the Heavy Lifter: What Exactly is an Air Handler?
People constantly mistake the air handler for a furnace, but that changes everything when you are trying to fix a airflow problem. The air handler unit—or AHU—is the indoor quarterback of your split HVAC system, responsible for circulating the air your outdoor heat pump or air conditioner chills or warms. It houses the blower motor, the evaporator coil, the air filter, and sometimes integrated electric heat strips. It is the lungs of the house.
The Interior Anatomy That Dictates Where It Sits
Because the AHU holds a massive blower wheel spinning at 1200 RPM, it requires serious structural support and acoustic dampening. And then there is the weight. A standard 3-ton capacity residential unit weighs roughly 160 pounds, which explains why architects cannot just stick them anywhere without considering structural load limits. The unit must connect seamlessly to the supply plenum and return ductwork, meaning its physical footprint dictates the entire layout of your home's hidden ventilation pathways. Where it gets tricky is the condensate management; cooling air creates moisture, so the location must accommodate a drain line running downhill or a condensate pump to push water outside before your drywall gets ruined.
The Battle of the Levels: Attic vs. Basement Placements
This is where experts disagree, and frankly, the debate gets quite heated depending on whether you live in Minneapolis or Miami. In the American South, slab-on-grade foundation construction means the attic is the default home for the air handler unit, keeping it tucked away out of sight. But putting a machine that produces freezing air into an attic that hits 130 degrees Fahrenheit in August? It seems completely counterintuitive, and it is, because your system has to fight thermal gain before the air even reaches your living room.
The Attic Landscape: High and Out of Mind

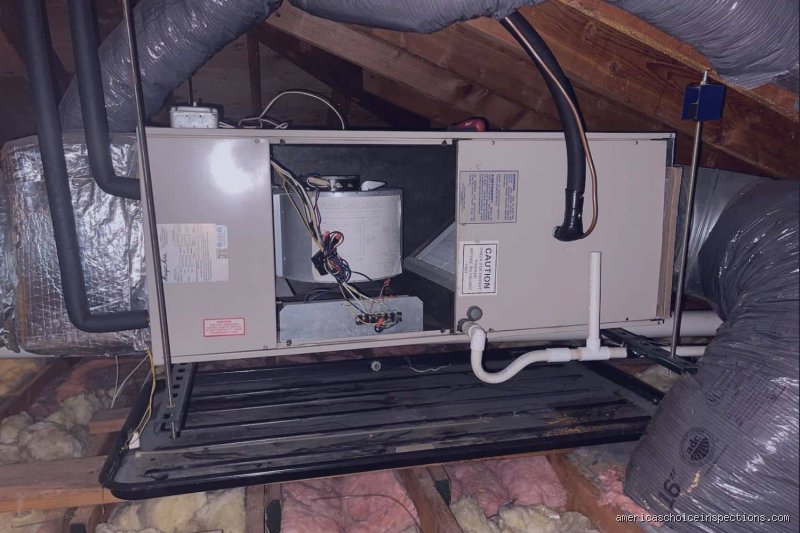

If your air handler unit is located in the attic, horizontal configuration is the name of the game. The unit lays flat on its side, cradled by joists or suspended from rafters by threaded rods with vibration isolation springs. But here is the thing: out of sight usually means out of mind, which is a recipe for disaster when the primary condensate pan plugs up with algae. To prevent a catastrophic ceiling collapse, modern building codes require a secondary drip pan beneath the unit equipped with a float switch to shut the system down if water rises. Did your AC suddenly die on a scorching afternoon? Check the attic pan first, because that safety switch might have just saved your living room plaster from a 200-gallon deluge.
The Basement Stronghold: Gravity and Efficiency
Northern homes, particularly those built during the post-WWII housing boom in places like Ohio or Pennsylvania, lean heavily toward basement installations. Here, the air handler stands vertically in an upflow configuration, pulling cool air from the floor and pushing conditioned air upward through the trunk line. It is an HVAC technician's dream because everything is accessible at eye level, making filter swaps and blower motor replacements remarkably easy. Yet, the issue remains that basements are notoriously damp, meaning the sheet metal casing faces a constant threat of rust if relative humidity levels exceed 60 percent over extended periods.
The Compact Hidden Zones: Closets and Crawl Spaces
What if you do not have a cavernous basement or a high-pitched roof? That is when engineers get creative, forcing the air handler unit into tight architectural nooks that will make your installer curse under their breath. In modern multi-family apartment complexes or tight southwestern ranch homes, you will likely find the unit tucked inside a central hallway utility closet, roaring like a jet engine every time the thermostat clicks on.
The Dedicated Mechanical Closet: Louvered Doors and Noise
When an air handler lives in a closet, it is usually a downflow or vertical arrangement. The bottom of the unit sits right on a return air plenum, sucking air directly through a grill in the door itself. But we are far from an ideal setup here. Noise attenuation becomes a massive headache because only a hollow-core door separates a humming 0.5-horsepower motor from your television set. If you are renovating a space with a closet-bound AHU, investing in high-density acoustic insulation for the closet walls is the single best decision you can make, period.
The Crawl Space Oblivion: Moisture and Hard Work
But what about the crawl space? It is arguably the worst possible environment for any mechanical equipment, yet thousands of homes in the Pacific Northwest rely on this layout. The air handler unit sits on concrete blocks or hangs from floor joists just inches above bare dirt or a plastic vapor barrier. Mechanics hate these with a passion, and who can blame them when they have to drag a 50-pound tool bag through spiderwebs and mud just to change a dirty filter? Because these spaces are prone to flooding and rodent infestations, the unit’s electrical connections and duct sealing must be absolutely flawless to prevent pulling toxic mold spores or radon gas straight into your breathing air.
Architectural Variables: How Home Style Dictates Machine Position
Your home's blueprint is the ultimate deciding factor for where the air handler unit is located. You cannot put a massive vertical furnace-and-handler combo into a 1970s contemporary home with vaulted ceilings and no attic clearance. Instead, these structures often utilize multi-zone split systems, hiding smaller air handlers in drop-ceilings or utilizing ductless mini-split fan coils mounted directly on the drywall. As a result: the age of your property generally dictates your mechanical layout, with older homes requiring retrofitted solutions that often sacrifice closet space or storage room to accommodate modern climate control demands.
Common mistakes and dangerous misconceptions
Out of sight, out of mind in the crawlspace
Homeowners frequently treat their mechanical ventilation systems like buried treasure—hidden away and completely forgotten. Jamming your air handler unit into an inaccessible, tight crawlspace seems like a brilliant space-saving maneuver until the condensate line chokes on slime. Suddenly, a routine filter change requires military-grade crawling maneuvers through spiderwebs and dirt. Let's be clear: if you cannot comfortably reach the chassis, your equipment will suffer from chronic neglect. Neglect breeds catastrophic component failure. Technicians will charge a premium just to wriggle into a suffocating 24-inch subterranean clearance, which explains why so many crawlspace installations end up abandoned to rust and mold.
The acoustic nightmare of central hallway closets
Placing the machinery right next to your primary living space constitutes a massive architectural blunder. Builders love this shortcut because it minimizes ductwork runs and slashes initial construction expenses. The problem is that a blower motor spinning at 1200 RPM creates an inescapable, low-frequency hum that penetrates standard drywall effortlessly. You expect a peaceful evening, yet you are subjected to a mechanical roar every time the thermostat calls for conditioning. Soundproofing a retrofitted hollow-core door with heavy mass-loaded vinyl helps, but it rarely cures the underlying structural vibration.
[Image of air handler unit installation diagram]
Ignoring the gravity of condensate drainage
Gravity is non-negotiable. Gravity dictates exactly where your air handler unit must sit relative to your home's wastewater infrastructure. A common, reckless oversight is mounting a horizontal system in an attic without a secondary overflow pan or a functional float switch. When the primary drain line freezes or plugs with algae, water seeks the path of least resistance. As a result: your pristine living room ceiling becomes a soggy, sagging sponge.
An unmonitored condensate leak can dump over 20 gallons of water per day straight into your structural framing before anyone notices the discoloration.
The microclimate reality and expert zoning secrets
Static pressure and the geometry of airflow
Experienced HVAC designers do not just look for empty square footage; they calculate the precise physics of systemic resistance. If you place the central air manipulation system at the extreme far end of an elongated ranch-style home, you guarantee uneven thermal distribution. The fan must push conditioned air through a hundred feet of twisting metal or flexible ducting, losing velocity and thermal energy along every single foot. By the time the airflow reaches the master bedroom, it feels like a pathetic, lukewarm whisper.
Thermal equilibrium in unconditioned zones
Installing your air handler unit within a scorching, unvented attic forces the machinery to fight an uphill battle against ambient physics. On a blistering summer afternoon, attic temperatures routinely skyrocket to
130 degrees Fahrenheit. Your system is tasked with delivering 55-degree air while encased in a literal oven. The radiant heat load penetrates the cabinet insulation, forcing the compressor to work up to
18 percent harder than a unit housed in a conditioned basement. Is it truly worth sacrificing equipment longevity just to save a few square feet of indoor storage space?
Frequently Asked Questions
Can an air handler unit be safely installed in a garage?
Yes, but you must strictly adhere to local building codes regarding combustible vapors and thermal barriers. Because gasoline fumes and carbon monoxide naturally pool near the floor, residential regulations typically mandate that the ignition and electrical components sits at least
18 inches above the garage floor surface. Furthermore, the cabinet requires robust protection from potential vehicular impacts, usually accomplished by erecting heavy-duty steel bollards. You must also ensure the return ductwork is perfectly sealed to prevent lethal exhaust fumes from being sucked into the airstream and distributed throughout your entire bedrooms.
How much clearance space does a technician need around the cabinet?
National evaluation codes dictate a minimum of
21 inches of front working clearance for routine maintenance access, though 30 inches is vastly preferred by the people turning the wrenches. Side and rear clearances can often be tighter, frequently requiring just 3 to 6 inches depending on the specific manufacturer specifications. If you violate these dimensional boundaries, a routine
$150 blower motor replacement transforms into a logistical nightmare requiring full system extraction. Always measure twice and leave breathing room for the humans who must fix your machinery when it inevitably breaks down in December.
Does the physical location of the indoor coils affect your monthly energy bill?
Absolutely, because proximity dictates friction and friction destroys operational efficiency. When an air handler unit is located dead-center in a multi-story home, duct runs remain exceptionally short and symmetrical, which optimizes static pressure. Long, tortuous duct pathways connected to poorly situated units force the blower fan to draw up to
200 additional watts per hour just to overcome fluid resistance. Over an average cooling season, this unnecessary electrical drag inflates your utility bills by roughly
12 to 15 percent.
Beyond the blueprints: A definitive stance on placement
The mechanical heart of your home should never be treated as an afterthought or a hidden inconvenience. Shoving sophisticated, expensive climate technology into filthy crawlspaces or suffocating attics is a compromise born of lazy design and cheap construction priorities. We must stop prioritizing aesthetics over operational accessibility and thermodynamic reality. A basement or a dedicated, insulated main-floor utility room remains the only sane choice for longevity. Pay the premium for dedicated square footage today, or prepare to pay the continuous tax of inflated energy bills and premature equipment failure tomorrow.
