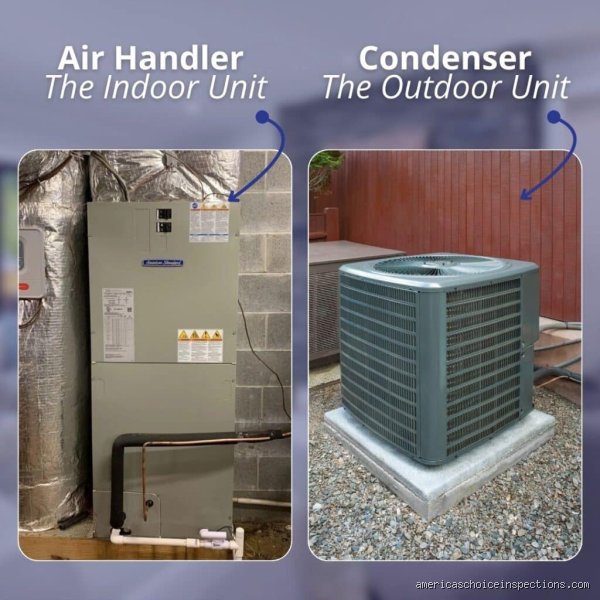

Walk into any suburban home built after the 1970s energy crisis and you will find a labyrinth of sheet metal hidden behind drywall. Most homeowners confuse the indoor unit with the outdoor compressor. The outdoor beast rejects heat, sure, but the indoor air handler does the heavy lifting of distribution. Let us face it, nobody wants a 150-pound galvanized steel box humming right next to their television. Consequently, builders treat these critical components like embarrassing family secrets, shoving them into the structural margins where they are out of sight, out of mind, and occasionally out of reach for routine maintenance.
The Metal Anatomy Behind Your Drywall: What Exactly Are We Hunting For?
Before scrambling up a pull-down ladder into your ceiling joists, we need to clarify what this machine actually looks like. An air handler is essentially a giant insulated box containing a blower fan, an evaporator coil for cooling or heating, and a slot for your air filter. It looks remarkably similar to a traditional gas furnace, which leads to massive confusion among DIY enthusiasts. The distinction matters. While a furnace burns fossil fuels to create thermal energy, an air handler merely circulates conditioned air that was warmed or cooled elsewhere, usually via an outdoor heat pump split-system configuration.
The Blower and the Coil Matrix
Inside that sheet metal skin lies a high-powered ECM motor—short for electronically commutated motor—that spins a squirrel-cage fan. This fan pulls stale air from your living rooms through return grilles, drags it forcefully across an array of copper piping intertwined with aluminum fins, and pushes the newly treated air back out. I spent three years inspecting residential mechanical layouts in Ohio, and honestly, it is unclear why builders still squeeze these massive four-ton capacity systems into spaces designed for a coat rack. Which explains why your HVAC tech sighs heavily the moment they step through your front door.
A Network of Sheet Metal Arteries
The air handler serves as the grand central station for your home ductwork. The supply plenum sits on top or on one side, acting as the pressurized staging area before air rushes into smaller branch ducts. Conversely, the return plenum pulls air back under vacuum pressure. You cannot have one without the other. If you see a cluster of silver, snake-like flexible ducts measuring 12 to 14 inches in diameter converging toward a single dark closet, you have successfully located the epicenter of your home ventilation network.
Vertical Versus Horizontal: The Spatial Logic of HVAC Placement
Where would an air handler be in a house? The definitive answer depends wildly on regional architectural trends and whether your home has a footprint that expands upward or outward. In the chilly climates of New England or the Midwest, basements reign supreme. Here, technicians prefer a vertical upflow configuration. The unit stands tall on the concrete floor, pulling cool air from the base and discharging warm air upward into the floor joists above. It is clean, accessible, and mechanically sound, except that basement humidity can cause premature cabinet corrosion over a 15-year operational lifespan.
The High-Heat Attic Scramble
Move down to Texas or Florida, where slab-on-grade foundations eliminate basements entirely, and the architectural calculus shifts dramatically. Here, the air handler routinely finds itself hoisted into a scorching attic space. Suspended by threaded rods or resting on wooden platforms, these units operate in a horizontal configuration. The air flows left-to-right or right-to-left. It is a brutal environment for machinery. When outdoor temperatures hit 95 degrees Fahrenheit, an unvented attic can easily skyrocket to 130 degrees Fahrenheit, forcing the system to work twice as hard just to keep the refrigerant inside the coils from boiling prematurely.
The Utility Closet Compromise
For tight, single-story ranch homes or modern urban townhouses, builders often resort to the dedicated mechanical closet. You will typically find these tucked away in a central hallway, a laundry room, or adjacent to a garage wall. These closets utilize a downflow or upflow vertical arrangement. While excellent for accessibility, they present a distinct acoustic challenge. Have you ever tried sleeping with a one-horsepower fan motor cycling on and off just six feet from your pillow? That changes everything regarding your indoor peace and quiet, forcing manufacturers to develop heavy internal acoustic insulation.
The Crawl Space Crypt: Below-Floor Climate Engineering
Then there are the homes built on pier-and-beam foundations or crawl spaces, particularly common across the American South and parts of the Pacific Northwest. Here, the air handler is forced into a subterranean existence. Technicians must slide on their backs through a clearance space that is sometimes a mere 24 to 30 inches deep to service the unit. The issue remains that these spaces are inherently prone to moisture intrusion, standing water, and pest infestations. Installing a complex electronic system in a dirt-floored trench feels like an engineering crime, yet it happens every single day.
The Nightmare of Secondary Condensate Management
Where it gets tricky with crawl space and attic installations is the water. When an air handler cools your home, it strips gallons of moisture from the air through condensation. This water drips into a primary pan and drains away via a PVC pipe. But what happens when that pipe clogs with algae? In a basement, it merely puddles on concrete. In an attic or crawl space, it can ruin your ceiling or rot your floorboards. Because of this catastrophic risk, building codes strictly mandate a secondary emergency drain pan equipped with a float switch that instantly kills power to the system the moment water starts to pool.
Regional Blueprints: Why Your Location Dictates the Machine's Home
We cannot talk about where would an air handler be in a house without analyzing regional building codes and historical eras. A home constructed in Minneapolis in 1985 has a completely different structural DNA than a sprawling desert oasis built in Phoenix in 2015. The differences are not accidental; they are driven by thermodynamic necessity and real estate economics. Experts disagree on the absolute best location for efficiency, but everyone agrees that climate zones dictate the initial architectural blueprint.
The Splitting of the Subdivisions
Consider the table below, which outlines the structural realities of where these systems hide across different territories based on standard housing stock data.
| Geographic Region | Primary Location | Configuration Type | Typical Accessibility Rating | |
| Northeast & Midwest | Full Basement | Vertical Upflow | Excellent (Walk-in access) | |
| Southeast & Gulf | Attic / Crawl Space | Horizontal Flow | Poor to Moderate | |
| Southwest Deserts | Garage / Closet | Vertical Downflow | Good (Eye-level access) | |
| West Coast Urban | Ceiling Plenum / Closet | Compact Horizontal | Variable |
People don't think about this enough, but placing an air handler outside the insulated thermal envelope of your home—like an unconditioned attic or a ventilated crawl space—introduces massive energy penalties. Every seam in that metal cabinet, no matter how well sealed with mastic tape or silicone, is subject to pressure differentials. A minor leak in your return plenum within a dusty attic does not just lower efficiency; it sucks fiberglass insulation particles, pollen, and superheated air directly into your breathing stream. We are far from achieving perfect residential isolation, but modern building scientists are pushing harder for bringing these units back inside the conditioned boundaries of the home.
Common HVAC Placement Blunders and Myths
The "Out of Sight, Out of Mind" Trap
Homeowners routinely banish their indoor air handling unit to the darkest, most inaccessible corners of their property. You want it hidden, obviously. But cramming a multi-ton pieces of machinery into a microscopic drywall closet guarantees a maintenance nightmare. Technicians need clearance to swap out clogged evaporator coils and faulty blower motors. When you wedge the equipment against a structural wall, you are effectively paying double for future labor hours. Worse, a restricted closet starves the system of return air, which suffocates the motor and causes the coils to freeze into a solid block of ice.
The Misconception of Universal Attic Superiority
Why do builders love putting the air handler up under the roof? Because it frees up precious square footage on the main living floors. Let's be clear: this is often a terrible compromise for energy efficiency. Attics in July easily reach 130 degrees Fahrenheit. Forcing your cooled air to originate in a scorching oven means your system fights a brutal thermodynamic battle before the air even hits your ducts. Thermal bridging through the thin sheet metal cabinet causes the system to sweat. This moisture regularly drips through the ceiling drywall, ruining your living room decor.
Ignoring the Laws of Gravity and Condensation
People assume an air handler simply blows air. They forget it actively extracts gallons of water from the household atmosphere every single day. If your unit sits on an upper floor without a secondary drain pan or an automatic float switch, you are playing Russian roulette with your ceilings. The main condensate line will clog with algae at some point. And when it does, gravity ensures that water finds the path of least resistance down into your pristine hardwood floors.
The Hidden Vector: Static Pressure and Sound Attenuation
The Acoustic Penalty of Centralized Closets
Where would an air handler be in a house if peace and quiet were the primary goals? Definitely not right next to the master bedroom. Homebuilders frequently slap a louvered door on a hallway closet and call it a day. Yet, the aerodynamic turbulence generated by a 1,200 CFM blower fan can easily register at 65 decibels. That is equivalent to a noisy restaurant operating right outside your sleeping quarters. To mitigate this acoustic assault, mechanical engineers specify heavy acoustic baffling or double-layered drywall dampening inside the mechanical enclosure, though residential builds rarely get this premium treatment.
The Structural Geometry of Duct Work
Every bend in your ductwork acts like a speed bump for moving air. When a mechanical room forces a 90-degree turn immediately out of the supply plenum, static pressure skyrockets. The blower motor has to spin significantly faster, consuming more electricity and wearing out its bearings prematurely. Ideally, the physical location of the air handler should allow for at least three feet of straight, unhindered duct expansion before any directional splits occur. Except that architects rarely consult HVAC engineers before drawing up the blueprint lines.
Frequently Asked Questions
Can an air handler be installed horizontally in a crawl space?
Yes, horizontal configurations are standard practice in homes featuring raised foundations or deep crawl spaces. This specific setup requires a minimum clearance of 24 inches from the ground to protect the electrical components from soil moisture. According to residential building codes, you must also install a continuous auxiliary drain pan underneath the entire length of the chassis to catch overflow water. Data shows that crawl space installations can suffer a 12 percent drop in overall efficiency if the under-floor perimeter is not properly encapsulated and insulated against ambient outdoor temperatures. Homeowners must also ensure the access hatch is wide enough for a technician to physically haul a replacement unit inside when the old one fails.
How do you locate a hidden air handler inside an apartment or condo?
In multi-family high-rise buildings, space is at an absolute premium, which means the equipment is usually tucked above a dropped ceiling or hidden inside a furr-down closet. Look for a large removable metal panel or a wooden access door located in your hallway or bathroom ceiling. These local air conditioning systems often utilize a compact water-source heat pump design tied into a central cooling tower on the roof. If you see a return air grille but no obvious machine, the unit is hiding directly behind that intake vent. Did you check the water heater closet yet? Often, engineers stack these two appliances together to centralize the plumbing lines and minimize the total structural footprint.
Does the location of the air handler affect your monthly energy bills?
The geographic position of your air handler within the thermal envelope dictates up to 15 percent of your total heating and cooling expenditures. Units residing in unconditioned spaces like vented attics or open garages waste energy via duct conduction losses and cabinet air leakage. When a system operates in a 100-degree garage, the temperature of the air entering your living room rises by roughly 3 degrees before it escapes the registers. This forces the compressor to run for longer cycles to meet the thermostat setting. Placing the air handler inside a centrally located, conditioned utility room eliminates these ambient thermal penalties entirely.
The Verdict on Mechanical Room Strategy
Stop treating your home comfort system like an unwanted piece of garbage that needs to be buried in the furthest corner of the attic. The physical location of your air handling unit dictates everything from the lifespan of the compressor to the acoustic quality of your daily life. Centralized, conditioned interior placement is the absolute gold standard for modern engineering design. It keeps the equipment safe from extreme weather anomalies while maximizing the volumetric efficiency of the airflow. Yes, you lose a few square feet of storage closet space on the main floor. The issue remains that we consistently sacrifice long-term mechanical performance for minor short-term aesthetic convenience. Smart homeowners make the compromise and keep their equipment where it can actually breathe.
