Let’s be entirely honest here: the jargon tossed around by heating and cooling technicians is notoriously muddy, and frankly, the industry itself is to blame for the collective confusion. When you walk down into a damp basement in Ohio or peer into a cramped utility closet in a modern Atlanta townhouse, that massive, galvanized steel box humming away in the dark is your air handler. It lives inside. Yet, if you tell an HVAC distributor you just need an "indoor unit," you might end up with a sleek, wall-mounted console meant for a studio apartment rather than the heavy-duty central cabinet your homestead actually requires.
Deconstructing the Anatomy: What Exactly Is an Air Handler and Where Does It Live?

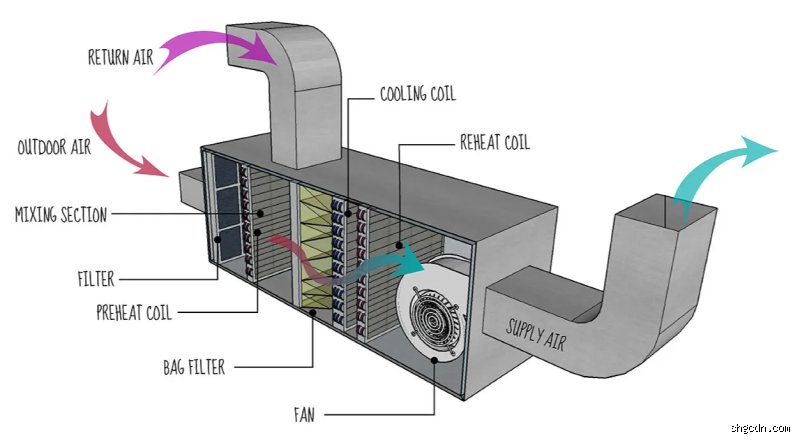

To grasp why an air handler is categorized as an indoor unit, we have to look at what it actually does with the air you breathe. It doesn't generate cooling out of thin air; instead, it acts as the grand central station for air distribution. Inside this metallic housing, you will find a blower motor—frequently an electronically commutated motor or ECM for modern efficiency—alongside an evaporator coil, air filters, and sound-dampening insulation. The box connects directly to your supply and return ductwork, pulling stagnant air from your living rooms, dragging it across a freezing or scorching coil, and shoving it right back out.
The Interior Imperative
Could you put one outside? Absolutely not, unless you want a catastrophic system failure within a single season. Because the cabinet contains sensitive electronic control boards, unsealed filter slots, and a massive blower assembly, it requires total protection from the elements. Rain, sub-zero snowstorms, and blistering summer dust would wreck the internal circuitry in days, which explains why these systems are strictly confined to conditioned or semi-conditioned interior zones like crawlspaces, attics, or dedicated mechanical rooms.
The Hidden Components Homeowners Rarely See
Where it gets tricky is how the air handler interacts with the outdoor half of the equation. In a standard split-system configuration, the air handler houses the indoorTXV—that is the thermostatic expansion valve—which regulates liquid refrigerant flow. If you look closely at the manufacturing data plates from brands like Carrier or Trane, you will notice these interior cabinets are paired precisely with specific outdoor condensers to achieve their rated SEER2 efficiency. It is a delicate dance of pressures and volumes; a mismatch here changes everything, often degrading your system's dehumidification capacity by up to 30%.
The Technical Divide: Indoor Units Versus Air Handlers in Modern Engineering
People don't think about this enough, but every air handler is an indoor unit, yet not every indoor unit can claim to be an air handler. It is a classic rectangle-and-square logic puzzle played out in copper and sheet metal. When an engineer at Daikin or Mitsubishi designs a ductless mini-split system, the sleek white plastic rectangle they mount high on your living room wall is technically an indoor unit, but calling it an air handler would make a mechanical engineer wince. Those wall units lack the static pressure capability to push air through even a single foot of traditional ductwork.
Static Pressure and Fan Curves
The real differentiator comes down to a boring but vital metric: external static pressure, measured in inches of water column. A true residential air handler is designed to overcome significant resistance, usually around 0.5 inches of water column, caused by twisty ducts and dirty filters. It requires a robust, high-horsepower fan to ram air through those restrictive passages. Conversely, a ductless indoor unit merely circulates the air within its immediate visual field, utilizing a whisper-quiet cross-flow fan that would completely choke if you tried to hook it up to a piece of sheet metal pipe.
Refrigerant Management Differences
But the variance goes deeper than mere airflow volume. A central air handler typically handles a massive volume of refrigerant flowing through a single, large A-coil or N-coil matrix. The indoor unit of a multi-split system, however, operates on a localized variable refrigerant flow principle, where electronic expansion valves constantly modulate to change the temperature of that specific room. The central air handler is a blunt instrument of collective comfort; the ductless indoor unit is a scalpel.
Decoding the Split-System Relationship: How the Inside Talks to the Outside
We cannot look at the indoor cabinet in a vacuum because its entire existence is tethered to the noisy compressor unit sitting out in your backyard next to the hydrangeas. In a standard heat pump application, the indoor air handler works double duty. During July, its coil runs cold to absorb your home's heat, but when January rolls around, the process reverses entirely, and that same indoor coil becomes intensely hot, transferring warmth brought in from the freezing outdoor air into your ductwork.
The Electrical Umbilical Cord
Connecting these two distinct halves is a complex bundle of copper lines, control wiring, and drain pipes known collectively as the line set. The indoor unit acts as the brains of the operation during daily cycles, sensing the temperature via your thermostat and sending a 24-volt signal down the line to wake up the outdoor compressor. Without this constant dialogue, your home comfort system is nothing more than an expensive, static collection of metal boxes. The issue remains that if your indoor blower fan fails, your outdoor compressor will keep chugging along until the entire indoor coil freezes into a solid block of ice, potentially destroying your compressor via liquid slugging.
Auxiliary Heat Considerations
Here is something else to consider: many indoor air handlers contain an extra secret weapon that standalone outdoor units lack entirely. I am talking about electric resistance heat strips, often referred to as emergency or auxiliary heat. When the outdoor temperature drops below a certain threshold—say, 15 degrees Fahrenheit in a place like Chicago—the outdoor heat pump struggles to extract ambient warmth. At that precise moment, the indoor air handler engages these heavy-duty electric coils, drawing massive amounts of juice to ensure your indoor spaces stay livable, a feature completely absent from standard outdoor machinery.
The Gray Areas: When Is an Indoor Unit Not an Air Handler?
Just when you think you have the terminology nailed down, the HVAC world introduces a curveball that confuses even seasoned real estate inspectors. Consider the humble gas furnace. In millions of homes across North America, a furnace sits in the basement, blowing air through the ducts during winter and housing an add-on evaporator coil on top for summer cooling. Is this an air handler? Technically, no, even though it performs the exact same indoor air-moving function. The industry reserves the term "air handler" specifically for all-electric units that do not create heat through fossil fuel combustion.
The Package Unit Exception
Then we have the strange case of the residential package unit, a common sight on rooftops in Arizona or sitting on concrete pads beside homes in North Carolina. In these configurations, the entire system—compressor, condenser coil, evaporator coil, and blower fan—is crammed into a single giant box located completely outdoors. The air is conditioned outside and traveled through insulated tubes straight into the house. In this scenario, the component doing the air handling is actually outdoors, which completely obliterates the neat "indoor equals air handler" paradigm that most people rely on.
Common Misconceptions Surrounding Indoor Assemblies
People often conflate every metal box humming in a basement with a standard furnace. It is a frequent oversight. The truth is that an air handler is an indoor unit specifically designed to circulate air through a ductwork system, yet homeowners constantly mix up its core function with other HVAC hardware.
The Furnace Identity Crisis
Let's be clear: a furnace generates its own thermal energy by burning fossil fuels like natural gas or propane. An air handler does not do this. Instead, it relies on an external source—like an outdoor heat pump or a chiller—to condition the air before pushing it through your home. Mistaking one for the other leads to catastrophic ordering errors. If you purchase a furnace expecting a simple blower mechanism, your installation costs will skyrocket due to unnecessary gas line configurations. The physical footprint differs too; a standard furnace requires complex venting systems for toxic exhaust, while an air handler occupies an entirely sealed indoor footprint.
The Evaporator Coil Blunder
Can an evaporator coil exist by itself? Yes, but it needs a driving force. Another frequent blunder is assuming that an air handler is just a fancy name for a cooling coil. The problem is that the coil is merely a passive heat exchanger. The air handler is the entire protective housing that encloses this coil, alongside a powerful blower motor, air filtration racks, and integrated electronic circuit boards. Think of the coil as the lungs and the handler as the entire respiratory system. Without the robust fan inside the chassis, that cold evaporator coil would simply freeze into a solid block of ice within 20 minutes of continuous operation.
Expert Optimization and the Static Pressure Trap
When dealing with these systems, most technicians overlook ductwork resistance. This is a massive mistake. An air handler is an indoor unit that must overcome the physical friction of your entire house's duct network to distribute air effectively.
The Hidden Threat of External Static Pressure
Every bend, trunk line, and register creates resistance. Experts measure this as external static pressure (ESP), usually calculated in inches of water column (wc). A standard residential blower is rated for a maximum ESP of 0.5 inches wc. What happens when you install a high-efficiency MERV 13 filter into a poorly designed plenum? The static pressure spikes instantly to 0.8 inches wc, choking the system. As a result: the blower motor works twice as hard, power consumption jumps by 30 percent, and the lifespan of your expensive variable-speed motor cuts in half. (And let's not even talk about the annoying whistling noise echoing through your living room vents.) You must match the blower speed taps to the actual measured resistance of the house, not the theoretical factory settings.
Frequently Asked Questions
Can you run an air handler without an outdoor unit?
Technically you can turn the blower fan on, but it will only circulate ambient air without changing the temperature. An air handler is an indoor unit that lacks any independent refrigeration mechanism, meaning it cannot cool your space unless it connects to an exterior condenser via copper line sets. If you operate the system completely isolated, the internal blower consumes roughly 400 watts of electricity per hour while accomplishing nothing more than a standard ceiling fan. Some configurations utilize internal electric heat strips, often rated between 5 to 15 kilowatts, to provide emergency backup warmth without an outdoor heat pump. However, relying solely on these resistive strips will cause your monthly utility bills to triple during freezing weather.
What is the average lifespan of a residential air handler?
A well-maintained model typically operates efficiently for 12 to 15 years before mechanical fatigue takes over. Because these structures reside entirely inside a conditioned space like a closet or attic, they escape the brutal thermal cycling, rust, and debris that destroy outdoor condensers in less than a decade. The issue remains that neglect kills the internal components prematurely. Neglecting monthly filter changes forces the blower motor to pull excessive amperage, which burns out the control board relays. If you ignore routine maintenance, expect the primary blower bearings to fail around year seven, forcing an expensive replacement that could cost up to 1200 dollars in labor alone.
How do you know if your indoor unit is a furnace or an air handler?
The easiest identification method involves checking for a gas supply line or a metal exhaust vent pipe exiting the top of the cabinet. A furnace requires a 0.5-inch yellow or black iron pipe to feed fuel to its burners, alongside a PVC or double-wall flue to safely discharge carbon monoxide outside. An air handler is an indoor unit that features none of these dangerous combustion components, relying instead on heavy-gauge electrical conduit and insulated refrigerant lines. Why guess when you can look at the data plate? Simply locate the manufacturer sticker on the front panel; if the model number begins with letters designating a fan coil or air handler, you are dealing with an electric-only air mover.
The Verdict on Indoor Air Architecture
Stop treating your climate control apparatus as a single, homogenous machine. The distinction between these components is not some pedantic semantic game played by contractors looking to inflate your invoice. Your air handler is the literal heart of your indoor environment, dictating your daily respiratory health and your long-term financial exposure to utility monopolies. Which explains why picking the wrong blower profile or ignoring static pressure calculations ruins even the most expensive heat pump investment. We see too many homeowners spend thousands on outdoor efficiency ratings while leaving a decaying, undersized air delivery box in their attic. Take control of your mechanical footprint by demanding a comprehensive airflow diagnostic, because an unoptimized system is nothing more than an expensive paperweight hiding in your utility closet.
