Most homeowners remain blissfully ignorant of this machine until the house turns into an oven in July. I once spent three hours in a cramped crawlspace in Columbus, Ohio, watching a technician dismantle a rusted 1990s Carrier unit, and it struck me how utterly utilitarian these things are. They are not built for aesthetics; they are engineered for airflow. The outer shell features tightly sealed access panels, fastened by heavy-duty latches or thumb screws, designed to keep conditioned air from escaping into unconditioned spaces.
The Anatomy of the Sheet Metal Monolith: Defining the Air Handler Unit
Let us strip away the industry jargon because, honestly, the terminology is a mess. People frequently confuse a furnace with an air handler, but the thing is, they serve entirely different masters. A furnace creates heat by burning fossil fuels, whereas an actual air handler—frequently abbreviated as an AHU—is a distinct indoor component that pairs specifically with an outdoor heat pump or air conditioner to regulate and circulate air through a complex network of supply and return ductwork.
The Shell and the Scale
The physical footprint varies wildly based on tonnage. A standard residential 3-ton air handler cabinet measures roughly 40 to 50 inches in height, 21 inches in width, and 22 inches in depth. It is a rigid, double-walled structure, often packed with dense fiberglass insulation or foil-faced closed-cell foam sandwiched between the metal layers to dampen the deafening roar of the internal blower motor. If you tap the side of a high-quality Trane or Lennox unit, it won't sound tinny; it yields a dull, solid thud. But where it gets tricky is the orientation, as these boxes can be installed vertically in an upright configuration (upflow or downflow) in a dedicated utility closet, or laid completely flat on their side in a dusty attic rafters arrangement.
External Connections and Appendages
An air handler never sits in isolation. It resembles a mechanical octopus, sproutings various lines, pipes, and conduits that break the clean lines of the rectangular geometry. You will immediately notice two thick copper refrigerant lines—the suction line wrapped in black elastomeric rubber insulation and the thinner, bare liquid line—penetrating the side casing through rubber grommets. Right below those lines, a white PVC condensate drain line, usually 3/4-inch in diameter, snakes out toward a floor drain or a small condensate pump, occasionally featuring a clear plastic P-trap to prevent sewer gases from being sucked into your breathing air.

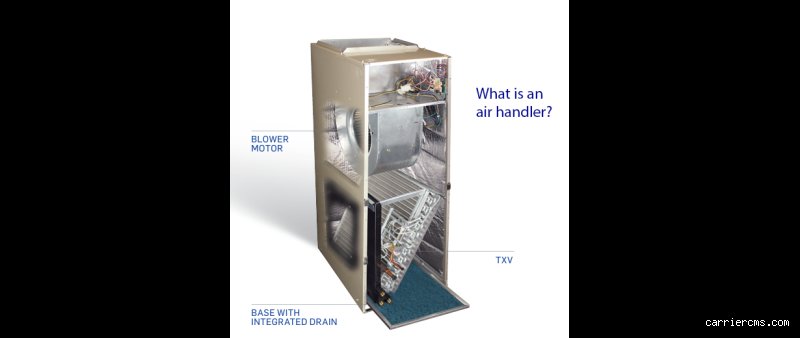

Peering Inside the Box: Visualizing the Interior Components of an HVAC Air Handler
Unscrewing the main access panels reveals a surprisingly cramped interior split into distinct, specialized chambers. It is a hostile environment of extreme temperature differentials and high velocity winds. If you expected high-tech microcircuitry to dominate the view, you will be disappointed, because the guts of an air handler are purely mechanical and thermodynamic.
The Blower Assembly and the Muscle
Occupying the lower or rear section of the cabinet is the blower assembly, which houses a large, metallic drum that looks suspiciously like a oversized squirrel cage. This centrifugal fan wheel is driven by an electronically commutated motor (ECM), a component that has largely replaced older, inefficient permanent split capacitor motors since federal efficiency regulations tightened. The motor itself is a heavy, cylindrical hunk of black-painted iron wrapped in copper windings, mounted directly to the center of the fan housing. You will see a bundle of brightly colored wiring harnesses running from this motor to a small, green integrated control board mounted on the interior wall, which acts as the traffic cop for thermostat signals.
The Evaporator Coil Topology
Directly in the airstream sits the evaporator coil, and this is where the actual cooling magic happens. In most modern residential setups, this takes the shape of a massive, inverted letter "A" or a slanted "A-coil," constructed from dozens of rows of thin copper or aluminum tubing threaded through thousands of razor-sharp, microscopic aluminum fins. It looks exactly like a car radiator, except it is perpetually dripping with water during the humid summer months. Beneath this shimmering metallic matrix sits a dark plastic or stainless steel condensate drain pan, designed to catch every single drop of moisture wrung out of your household air before it can rot your floorboards.
The Filtration Barrier
At the very point where the return air plenum bolts onto the cabinet, you will find the filter slot. Depending on the sophistication of the installation, this might look like a narrow, one-inch slot covered by a flimsy plastic door, or a massive, five-inch-wide media cabinet housing a pleated MERV 11 filter. People don't think about this enough, but a dirty filter changes everything about how the interior of this machine looks; a neglected unit will coat the pristine aluminum fins of the evaporator coil in a gray, velvety blanket of dust and pet dander, drastically reducing system efficiency.
Industrial Giantism vs. Residential Discretion: Scale and Geometry Modifications
The visual identity of an air handler undergoes a radical mutation when you transition from a single-family home to a commercial office building or a sprawling manufacturing facility. The core physics remain identical, yet the execution is entirely different.
Commercial Rooftop Packaged Variations
In commercial architecture, the indoor air handler frequently transforms into an outdoor Rooftop Unit (RTU). These are not just boxes; they are self-contained mechanical penthouses clad in heavy-gauge, weatherproof, UV-resistant painted steel. They can stretch over 15 feet in length and weigh upwards of 10,000 pounds, featuring walk-in access doors that allow technicians to literally step inside the machine to change belts or service the industrial-grade variable frequency drives (VFDs) that modulate fan speeds for multi-story buildings.
The Modular Approach
Unlike residential units that ship as a single, consolidated box, large-scale commercial air handlers are often modular. They are delivered to construction sites in separate, distinct sections—a fan module, a mixing box module with motorized dampers, a filter bank module holding dozens of pocket filters, and a heating coil module—which are then bolted together on-site. The sheer scale is dizzying, with some industrial blower wheels measuring over four feet in diameter, driven by 50-horsepower motors that require heavy steel structural I-beams just to support their weight.
Alternative Configurations: When an Air Handler Doesn't Look Like a Box
The conventional image of the silver metal box vanishes entirely when dealing with modern ductless technologies or specialized architectural constraints. Innovation has forced the air handler to adapt to spaces where traditional ductwork simply cannot go.
The Ductless Mini-Split Wall Head
If you install a ductless mini-split system, your air handler is right there on the wall looking directly at you. It is a sleek, elongated rectangle made of high-impact, glossy white plastic, measuring roughly 30 to 40 inches wide and sitting tight against the ceiling. It features a motorized louvers at the bottom that slowly oscillate to direct airflow, and a discrete LED display showing the current temperature setpoint. Inside this plastic shroud is a micro-engineered version of the traditional unit: a long, cylindrical cross-flow fan and a curved evaporator coil wrapped tightly around the internal chassis.
Ceiling Cassettes and Concealed Slim Ducts
For high-end renovations where visible plastic boxes are unacceptable, engineers hide the air handler inside the ceiling grid. A ceiling cassette air handler looks like a flat, square grille, usually 2 by 2 feet, that blends seamlessly with acoustic ceiling tiles, discharging air in four directions simultaneously. Alternatively, a slim-duct or concealed unit looks like a flattened, rectangular galvanized box only 8 to 10 inches deep, tucked neatly away above a drywall ceiling in a hallway or closet drop-down, completely invisible to the naked eye except for a standard supply register. The issue remains that while these sleek designs please interior designers, they turn routine maintenance into a game of architectural gymnastics, requiring technicians to balance on ladders while working through tiny access hatches.
Common mistakes and dangerous identity theft in your basement
Homeowners routinely mistake their indoor climate machinery for something else entirely. Look at that galvanized steel box crouching in the utility room; you might call it a furnace when it actually contains no burners whatsoever. Let's be clear: a furnace creates heat through combustion, yet an air handling unit merely shuffles thermal energy via refrigerant coils or hydronic loops. If your metal cabinet lacks a gas line, a flue pipe, or a combustion chamber window, you are staring directly at what does an HVAC air handler look like instead of a traditional boiler setup.
The phantom furnace syndrome
Why does this visual mix-up persist so stubbornly among property owners? Because both appliances share identical rectangular sheet-metal geometry and connect to the exact same sprawling network of supply ducts. But open the access panel of a dedicated blower cabinet and you will notice a complete absence of fire, burners, or heat exchangers. Instead, a massive centrifugal blower wheel sits at the bottom, paired with a dense matrix of copper and aluminum cooling fins. Mistaking these two machines can lead to expensive diagnostic errors when hiring technicians.
The filter location optical illusion
Another frequent blunder involves the placement and visibility of the filtration system. Many assume the air filtration rack lives deep inside the mechanical core of the blower assembly. The problem is that custom-built properties often feature filtration grilles hidden behind intake vents located throughout your living room walls. When inspecting the main physical cabinet, you might see nothing more than a smooth, unblemished sheet-metal skin without any obvious slot for a replacement media filter. Do not tear apart your heavy outer casing looking for a filter track that might actually reside thirty feet away in a hallway ceiling.
The hidden sweat factor and professional configuration secrets
Few people consider the sheer volume of liquid condensation these massive metal boxes generate during a sweltering July afternoon. Except that an expert knows exactly how to read the complex network of external plumbing attached to the chassis. A standard multi-position residential blower unit features secondary safety pans, overflow float switches, and complex trap geometries that dictate the overall physical profile of the installation. Which explains why a certified installation always looks radically different from a rushed, amateur DIY job done over a single weekend.
Decoding the external plumbing footprint
When studying what does an HVAC air handler look like from the outside, the metal box itself tells only half the story. Look closely at the lower quadrant where PVC drain lines protrude like a miniature industrial refinery. A professional installation boasts a transparent P-trap filled with water to block sewer gas backdrafts, accompanied by an electronic float switch wired directly into the low-voltage control board. If this external plumbing appears absent or poorly supported, the entire structural integrity of your drywall stands at immediate risk from hidden moisture overflow. Condensation lines must slope downward at a strict minimum gradient of one-quarter inch per foot of horizontal run to ensure proper gravity drainage.
Frequently Asked Questions
Can you easily distinguish an indoor air handler from a standard gas furnace by sight alone?
Yes, because a gas furnace requires a dedicated double-wall B-vent exhaust pipe made of galvanized steel or aluminum to safely route toxic combustion byproducts through the roof. An electric or heat-pump air handler features no such chimney structure, showing only insulated copper linesets and heavy-gauge electrical conduits entering the chassis. Furthermore, the overall physical footprint of an air handling cabinet is typically taller, often measuring between forty-eight and fifty-six inches in height compared to more compact modern gas furnaces. If you spot a thick PVC intake air pipe alongside a metallic exhaust vent, you are looking at a high-efficiency condensing furnace rather than a standard blower cabinet. The absence of these exhaust mechanisms remains the definitive visual differentiator for property owners.
What does an HVAC air handler look like when configured for a horizontal attic installation?
In tightly cramped attic spaces, the vertical metal tower is flipped completely on its side, resting horizontally across structural ceiling joists inside a secondary emergency drain pan. This configuration spreads the mechanical weight across a wider footprint, typically stretching the unit to a length of sixty inches or greater along the attic floor. You will observe heavy threaded rods suspending the entire sheet-metal apparatus from the roof rafters to minimize vibrational noise amplification through the living spaces below. The access panels face outward horizontally rather than forward, requiring technicians to lie flat on catwalk planks to service the internal blower motor or clean the evaporator coils. Thick layers of external fiberglass insulation wrap around the connecting duct plenums to prevent condensation from dripping onto the ceiling drywall below.
Why do some air handling units feature thick external blankets while others have smooth metal exteriors?
The visual difference comes down to whether the manufacturer opted for internal fiberglass liner insulation or an exterior insulation wrap. High-velocity systems or units installed in unconditioned garages often require a foil-faced external insulation blanket that is secured with heavy-duty mastic sealant and aluminum tape to maximize thermal efficiency. Standard residential units keep this insulation entirely hidden inside the double-walled cabinet casing, keeping the exterior sheet metal smooth, clean, and cool to the touch. If you see a unit covered in what looks like shiny silver foil padding, it usually indicates the system operates in an environment subject to extreme ambient temperature swings. This extra layer prevents the steel cabinet from sweating heavily when cold air blasts through the internal chambers during high-humidity weather cycles.
The final verdict on mechanical aesthetics
We need to stop treating our indoor environmental machinery like an embarrassing, unsightly secret that belongs hidden behind dusty closet partitions. A well-designed air handling assembly is a beautiful testament to modern fluid dynamics and thermal engineering, assuming it was installed by someone who actually cares about their craft. Look past the utilitarian gray sheet metal and appreciate the complex orchestration of linesets, control wires, and dampening hangers that keep your indoor climate stable. As a result: an educated homeowner can spot installation flaws from ten feet away simply by analyzing the geometry of the plenum transitions. Stop ignoring the metallic heart of your home. Demand a clean, square, professionally sealed layout because the visual precision of that metal box directly mirrors the operational efficiency of your entire climate control strategy.
