Every summer, homeowners make the exact same mistake. They panic because the house feels like a literal sauna, glance at the outdoor AC unit spinning away in the yard, and immediately dial an emergency technician who charges $150 per hour just to flip a tripped circuit breaker. The real culprit is usually hiding inside your attic, basement, or utility closet, quietly suffocating behind a clogged filter or a burned-out capacitor. The air handler is the literal lungs of your home comfort setup. If those lungs stop breathing, the whole system dies. Let us look at what this machine actually does before we start tearing off metal access panels with a nut driver.
The Hidden Anatomy of the Indoor Air Handling Unit
Most folks confuse the entire central air conditioning system with that loud, boxy metal cage sitting outside on a concrete pad. Except that outdoor unit is merely half the equation, responsible only for dumping heat. The actual air handler, or AHU, lives indoors, acting as the primary circulation hub that pulls stagnant air out of your rooms, forces it across a freezing or boiling coil, and shoves it back through the ductwork. It is a deceptively simple enclosure containing a heavy blower wheel, a drive motor, an evaporator coil, a complex circuit board, and a matrix of filtration slots.
The Fine Line Between a Furnace and an Air Handler
Where it gets tricky is differentiating an AHU from a standard gas furnace. A furnace burns fossil fuels like natural gas or propane to generate raw thermal energy. An air handler, by contrast, typically relies on a remote heat pump or an external chiller, using a sealed loop of R-410A refrigerant or R-32 refrigerant to condition the air. I have seen seasoned property managers mistake a hydronic air handler for a gas furnace simply because both systems use a galvanized steel cabinet. The internal mechanics are entirely distinct; one relies on combustion sequences, while the other lives and dies by electric fan relays and variable-speed motor modules.
Why Modern ECM Motors Change the Troubleshooting Game
Older systems used primitive Permanent Split Capacitor motors that ran at one speed: maximum blast. Today, if you bought a high-efficiency system from Carrier or Trane after the 2019 Department of Energy regulations took effect, you are likely dealing with an Electronically Commutated Motor. These ECM beasts use internal microprocessors to adjust speed dynamically. That changes everything for the DIY troubleshooter. A traditional motor either runs or it does not, but a malfunctioning ECM might spin at a pathetic 10% capacity, making you think the unit is working when it is actually dying a slow, digital death. Honestly, it is unclear why manufacturers made these control boards so fragile, but the reality is that a minor voltage spike can fry the motor's control module while leaving the physical winding completely unscathed.
Initial Diagnostic Protocols: The Zero-Cost Checklist
Before you go buying expensive multimeters or ordering replacement parts on the internet, you have to establish a baseline of operation. The issue remains that a system can appear totally dead due to a safety switch rather than a catastrophic mechanical failure. We need to rule out the external gatekeepers that dictate whether the air handler receives permission to run.
The Thermostat Testing Trick That Never Fails
Walk over to your thermostat. Is the display totally blank? If it is running on dead AA batteries, your air handler will never receive the 24-volt AC signal required to close the contactor. Switch the thermostat fan setting from Auto to On. This simple action bypasses the cooling or heating call entirely and sends a direct command to the G terminal on the air handler control board. If you hear the indoor blower kick on and feel air moving through the vents, congratulations: your blower motor and transformer are perfectly fine, and your problem lies within the outdoor unit, the thermostat wiring, or the cooling control loop itself.
Hunting for the Secret Safety Switches
And what if absolutely nothing happens when you flip that switch? Do not panic yet. Air handlers are rigged with defensive tripwires designed to kill power before a house floods or catches fire. Look for a standard light switch mounted directly on or next to the air handler cabinet. Someone might have bumped it while retrieving holiday decorations from the attic. More importantly, locate the condensate overflow float switch, which is usually a small plastic T-junction spliced into the PVC drain line. If the drain line clogs with algae, the water rises, lifts a floating magnet, and breaks the low-voltage circuit instantly. It is a brilliant safety feature, but people don't think about this enough when their AC suddenly quits on a humid July afternoon in Atlanta.
Advanced Electrical and Mechanical Verification

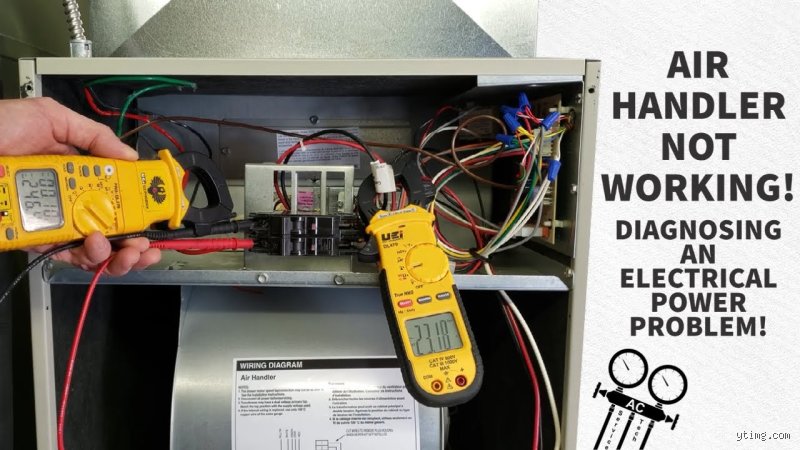

If the switches are on and the thermostat is demanding airflow, we have to graduate to physical inspection. Turn off the dedicated breaker at your main service panel. Seriously, do not skip this step because air handlers run on dangerous 240-volt electricity that can kill you instantly if your hand slips inside the cabinet. Remove the upper door panel to expose the blower assembly and the main integrated furnace control board.
Reading the Diagnostic LED Flash Codes
Modern air handlers are essentially giant computers that talk to you via blinking lights. Look through the small clear sight glass on the blower door or look directly at the circuit board once the panel is off. You will see a small LED emitting a sequence of flashes. A solid green or amber light usually means everything is fine, but a rapid red sequence is a cry for help. A 3-flash code on a Goodman unit might indicate an open limit switch, while a 5-flash code could point to an issue with the blower motor communication. Grab the schematic pasted to the inside of the door panel to decode exactly what the machine thinks is wrong with its own internal organs.
Testing the Capacitor and Spinning the Wheel
Reach in and gently give the metal blower wheel a spin with your hand. Does it rotate freely, or does it grind to a harsh stop? If it resists spinning, the bearings inside the motor casing are shot, which explains the total lack of airflow. If it spins beautifully like a bicycle wheel, the problem is likely electrical. Look for a silver cylinder shaped like a soup can, which is the run capacitor. If the top of that cylinder is bulged, domed, or leaking an oily residue, it has ruptured. Without that capacitor delivering a high-voltage phase shift, the blower motor cannot generate the torque needed to start spinning, leaving it to sit there getting scorching hot until the thermal overload switch trips.
Evaluating Airflow Performance Versus Component Longevity
Sometimes the air handler is technically running, but it is doing such a miserable job that your house remains a swamp. This is where we have to balance raw airflow metrics against the physical condition of the internal coils. A system that moves air poorly will eventually destroy its own compressor through liquid slugging.
The Static Pressure Nightmare Caused by Neglect
The absolute biggest killer of indoor air handling units is a filthy air filter. If you have not changed that 1-inch pleated filter in six months, your blower is trying to pull air through what amounts to a solid brick of dust and pet dander. This skyrockets the total static pressure within your duct network. The motor has to work twice as hard to move half as much air, pulling excessive amperage and generating destructive internal heat. In short: a $10 air filter can easily cause a $900 blower motor failure if left ignored. We are far from the days when HVAC equipment could tolerate decades of absolute neglect; modern tight-tolerance systems require pristine airflow to survive.
How to Spot a Frozen Evaporator Coil Before It thaws
When airflow drops below a specific threshold, typically around 350 to 400 cubic feet per minute per ton of cooling capacity, the temperature of the aluminum evaporator coil drops below freezing. The ambient moisture in the air freezes instantly upon contact with the metal fins. If you open the cabinet and see a solid block of ice encasing the copper lines, your air handler is technically operational but fundamentally failing. Turn off the cooling mode immediately and switch the fan to On to let the ice melt. Running an AC with a frozen coil will send unvaporized liquid refrigerant back down the suction line, which will instantly destroy the pistons or scrolls inside your outdoor compressor.
Common misconceptions clouding your diagnostics
The phantom airflow illusion
Most homeowners feel air whispering from a register and instantly assume the machinery is flawless. It is a trap. The blower motor might spin, but if the static pressure is choked by a clogged evaporator coil, you are merely circulating stagnant, lukewarm air. Measuring the actual velocity requires an anemometer. Low airflow velocity often masks an impending compressor failure because the system works twice as old-fashioned cycles to meet the thermostat demand. Did you actually check the temperature drop across the coil, or are you just trusting a faint breeze? People confuse mechanical motion with thermodynamic efficiency, which explains why utility bills skyrocket while families freeze.
The breaker fallacy and the reset trap
But a tripped breaker is never just a random fluke. Flipping the switch back on and watching the system kick to life gives a false sense of victory. The issue remains that an air handler drawing excessive amperage will trip a 20-amp or 30-amp circuit breaker due to a seizing blower bearing or a shorted capacitor. Ignoring this warning sign risks frying the control board entirely. Let's be clear: a machine that requires a manual reset more than once a month is actively dying, except that most people prefer to blame the electrical panel rather than the HVAC unit itself.
Filter ignorance and static pressure blindness
We love buying ultra-restrictive pleated filters to trap micro-particles, yet these thick fiberglass barriers often suffocate the system. A high MERV rating can reduce airflow by up to 40 percent if the ductwork is under-engineered. The air handler suffocates, ice builds up on the coils, and the unit shuts down via the high-limit switch. It is a vicious cycle. You think the motor is broken, when in reality, your pristine filter is acting as a brick wall.
The static pressure secret: Expert diagnostic triage
Why the manometer is your best friend
Forget listening for hums or rattles. True HVAC wizards rely on total external static pressure (TESP) to verify how an air handler is working. By drilling tiny holes before and after the handler and inserting static pressure probes, we measure the resistance the blower encounters. A healthy residential system should ideally operate around 0.5 inches of water column (wc). When your manometer reads 0.9 inches wc or higher, the motor is fighting a losing battle. This metric never lies. It uncovers crushed ductwork, hidden debris, and failing blowers long before the system completely gives up the ghost. (We admittedly cannot fix crushed metal with software, so manual inspection is still mandatory here). You can swap parts blindly, or you can use data to pinpoint the restriction within five minutes.
Frequently Asked Questions
What is the average lifespan of a residential blower motor?
A standard permanent split capacitor (PSC) blower motor typically lasts between 10 to 15 years under optimal operating conditions. However, electronically commutated motors (ECM) feature advanced control modules that frequently burn out within 7 years due to voltage surges or high static pressure. Replacing a high-end ECM can cost upwards of 800 dollars in parts alone, whereas a basic PSC motor rarely exceeds 200 dollars. Regular maintenance and clean filters directly extend these timelines by reducing operational friction. As a result: keeping a close eye on your system age helps predict when the air handler is working on borrowed time.
How much electricity should a functional air handler consume?
During normal operations, a residential air handler drawing power for just the blower and control board consumes between 300 and 600 watts per hour. If your system utilizes electric auxiliary heat strips during winter, that consumption drastically spikes to anywhere between 5,000 and 15,000 watts. You can verify this draw using a digital clamp meter around the main power wire to see if the amperage matches the manufacturer data plate. Sudden spikes in energy consumption indicate failing capacitor banks or mechanical binding within the wheel assembly. In short, monitoring your electrical panel provides immediate clues regarding system health.
Why is water pooling around the bottom of my vertical air handler?
Water accumulation indicates that the condensate management system has failed completely, which usually happens when the drain line clogs with algae. A typical system produces up to 2 gallons of condensate per hour during humid summer days, requiring a clear path through a PVC drain line. When the primary drain blocks, the water fills the internal pan and overflows onto your floor or triggers the safety float switch to shut the system down. Checking this pan should be your absolute first step whenever the system refuses to turn on. Clean the trap with vinegar twice a year to prevent these messy, frustrating shutdowns from ruining your drywall.
The diagnostic verdict: Stop guessing and measure
Relying on intuition to determine if an air handler is working is a recipe for expensive emergency repair bills. Slapping the side of the sheet metal casing or tweaking the thermostat dial will not fix a systemic airflow restriction or a degraded capacitor. We need to elevate our standards and treat HVAC diagnostics as a precise science involving specific electrical and pressure measurements. The data is right there if you possess the courage to hook up a manometer and a multimeter. Do not settle for lukewarm air or comforting mechanical hums that mask underlying electrical faults. True system health is measured in exact temperature drops and precise amperage draws, not wishful thinking. Take control of your home climate by demanding hard numbers from your equipment today.
