The Metal Monolith: Defining the True Anatomy of an Indoor Air Handler Unit
Let's clear up some rampant confusion right away because homeowners constantly mistake their furnace for an air handler, or vice-versa, and frankly, even some apprenticing technicians muck this up during their first month on the job. An air handler unit, technically designated as an AHU in commercial blueprints, is the indoor manifestation of your split-system air conditioner or heat pump. I spent years watching folks stare blankly at a gray metal enclosure in their utility closet, assuming the whole HVAC universe lived inside that single skin. But the thing is, an air handler is essentially an insulated box containing a blower, a cooling coil, and some electronics. Nothing more, nothing less.
Why Mechanical Confusion Reigns Supreme in North American Basements
People don't think about this enough, but if you heat your home with burning gas or heating oil, you do not have a standalone AC air handler; you have a furnace that happens to pull double duty by housing an evaporator coil on top. A true air handler operates paired with an electric heat pump or an exterior cooling-only condenser. It looks remarkably sterile on the outside. Why? Because there are no exhaust flues, gas valves, or burner viewing windows cutting into the chassis. It is just clean, unbroken sheets of 22-gauge steel secured by hex-head screws, engineered to prevent conditioned air from escaping into your unconditioned attic or crawlspace.

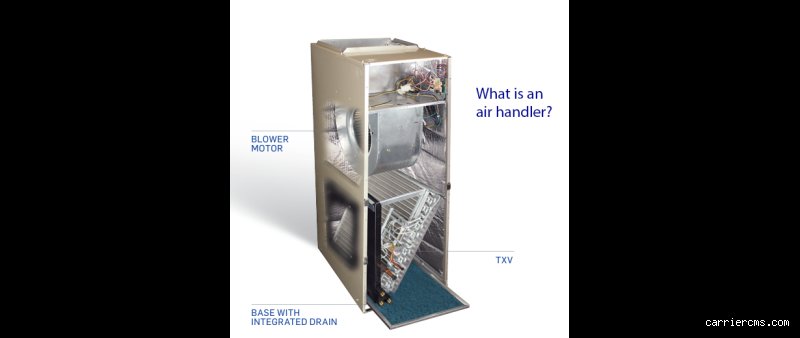

[Image of AC air handler unit]Chassis, Panel Lines, and Seams: Deciphering the Exterior Aesthetics
When you stand in front of a modern Carrier or Rheem residential unit, what does an AC air handler look like from a purely physical, tactile perspective? It is a study in industrial minimalism. The exterior cabinet usually sports a powder-coated paint finish—often a neutral battleship gray, off-white, or textured dark green—designed to resist the high humidity of damp crawlspaces. You will notice distinct seams and removable access panels running horizontally or vertically across the face. These panels are vital because they separate the pressurized interior zones, held tight by dense rubber foam gaskets to maintain static pressure.
The External Telltale Signs: Pipes, Wires, and Condensate Drains
You cannot fully identify an air handler by looking at the metal box alone; you have to trace the appendages sprouting from its sides. Two insulated copper refrigerant lines, one thick suction line wrapped in black elastomeric foam and one thin liquid line, pierce the cabinet wall through rubber grommets. Right below those lines, you will invariably spot a white PVC pipe slanting downward toward a floor drain or a small condensate pump. That is the drain line. When a system removes gallons of moisture from sticky July air, that water has to go somewhere. If you see a secondary plastic pan sitting underneath the entire machine, congratulations, your installer actually followed the International Mechanical Code to prevent ceiling ruins.
The Labeling Game: What the Data Plate Tells Your Eyes
Every major manufacturer, from Trane to Goodman, slaps a silver or white manufacturing data plate onto the front upper corner. This foil sticker contains a jumble of model numbers, serial numbers, and electrical ratings that look like gibberish but tell a definitive story. For instance, if you spot a number like 3624 buried in the middle of the model string, an expert immediately knows they are looking at a 3-ton capacity unit capable of moving approximately 1,200 cubic feet per minute of air. But the issue remains that these stickers fade, warp, or get covered by foil tape during hurried installations, leaving you to guess the system's identity based purely on its physical footprints.
What Lies Beneath: Visualizing the Interior Components Without Opening the Cabinet
If you were to use X-ray vision on that metal enclosure, the interior layout would instantly reveal why the box is shaped the way it is. Inside, the space is divided into two or three main chambers, depending on whether the configuration is an upflow, downflow, or horizontal installation layout. The air does not just wander through; it follows a strict, high-velocity highway. The lower section typically houses the heavy blower assembly, while the upper section holds the delicate, moisture-dripping coil matrix where the thermodynamic magic actually happens.
The Blower Assembly: The Giant Squirrel Cage Motor
Where it gets tricky for the average homeowner is visualizing the blower fan itself. This is not a propeller like your desk fan. It is a wide, heavy drum made of galvanized steel or composite plastic with forward-curved blades, which explains why the industry calls it a squirrel cage blower. Attached to this wheel is an electric motor, often a modern Electronically Commutated Motor (ECM) that automatically adjusts its RPM to combat restrictive ductwork. This fan wheel spins at high velocities inside its own scroll housing, drawing massive volumes of air through your return grille and shoving it upward through the rest of the cabinet.
The Evaporator Coil: An Intense Maze of Aluminum Fins
Directly in the path of that rushing air sits the evaporator coil, which is shaped either like an inverted "A" or an angled "N" to maximize the surface area exposed to the airflow. It is a dense, gleaming labyrinth of copper tubing laced with thousands of razor-thin aluminum fins that can slice your fingers open if you touch them carelessly. This coil is perpetually cold when the system runs. As warm, humid air passes through these fins, heat jumps into the refrigerant liquid inside the tubes, causing moisture to flash-condense onto the metal surfaces and rain down into a dark plastic drain pan hidden right at the base of the coil structure.
Configuration Variables: Multi-Position Profiles and Architectural Chameleons
An air handler is a shape-shifter because architectural constraints dictate how it must sit in a home. In a standard suburban home in Ohio, you might find the unit standing perfectly upright in a basement corner, drawing air from the bottom and blowing it up into the floor joists. But move down to a slab-foundation home in Florida, and the exact same model might be flipped sideways, suspended by threaded rods in an attic crawlspace, laying flat like a sleeping metal giant on a wooden platform.
Upflow Versus Horizontal: How Orientation Alters the Visual Silhouette
An upflow air handler stands tall and vertical. The return plenum attaches to the bottom, and the supply plenum shoots out of the top cap. But when that same unit is configured horizontally, the visual profile changes completely. It becomes a long, low-slung metal rectangle stretching six feet across an attic floor. The transition pieces, where the sheet metal ducts connect to the factory cabinet, are heavily wrapped in silver foil-faced fiberglass insulation, making the entire apparatus look less like an appliance and more like a shiny, industrial centipede hugging your rafters. Experts disagree on whether horizontal installations lose more efficiency due to attic heat gain, but honestly, it is unclear if the minor thermal loss outweighs the space-saving benefits in tight floor plans.
Common Misconceptions and Visual Blunders
The "Furnace Clone" Illusion
Walk into a basement. You see a galvanized steel monolith and immediately declare it a furnace. Except that, quite frequently, you are actually staring at a central cooling configuration. The external anatomy of a modern AC air handler mimics its heating cousin almost identically. They both feature a muted, metallic chassis. They both hook into the same cavernous duct network. The core differentiator lies hidden behind the metal skin, where a heavy-duty blower fan sits adjacent to a copper-tubed evaporator coil rather than a gas burner assembly. Let's be clear: unless you spot a gas line or a flue pipe venting combustion exhaust, do not assume that grey box is merely keeping you warm in January.
The "Just a Box" Fallacy
Homeowners frequently relegate this machinery to the status of a passive conduit. They assume it is an empty shell where air passes through unhindered. This assumption is a massive oversight. The structural profile of an indoor air handling unit is a sophisticated multi-chambered fortress. The upper quadrant typically houses the intricate coil matrix, while the lower section secures a high-torque fan motor. If you treat it like an hollow plastic crate, you will inevitably neglect the precise clearances necessary for adequate thermal exchange.
The Confusion with Condensers
Why do people constantly mix up the indoor and outdoor apparatus? It happens constantly. A neighbor points to the noisy, spinning fan unit sitting on a concrete pad next to their flowerbeds and calls it the handler. It is not. That exterior monstrosity is the condenser, responsible for shedding heat into the wild. The true AC air handler lives an isolated, indoor existence, shielded from rain and snow, quietly managing the equilibrium of your internal atmosphere.
The Hidden Geometry of Static Pressure
Aerodynamic Architecture Inside the Chassis
Here is something your average technician rarely explains during a routine tune-up. The physical shape of the internal housing is intentionally engineered to manipulate air velocity. It is a game of tight tolerances. The blower wheel is positioned with millimeter-level accuracy against a curved scroll. This specific geometry converts kinetic energy into static pressure, forcing conditioned air through hundreds of feet of restrictive ductwork. If the internal housing warped even slightly, the entire aerodynamic equation would collapse instantly. Air would swirl uselessly inside the cabinet, skyrocketing your utility bills while turning your master bedroom into a humid sauna.
The Condensate Trap Dimension
Look closer at the bottom edge of the metal casing. You will notice a small, inconspicuous PVC pipe protruding from the side, looping downward before heading toward a floor drain. This is the P-trap assembly. Because the internal blower creates a powerful negative pressure zone inside the cabinet, it would actually suck sewer gases or stagnant moisture backward into your breathing air without this water-sealed loop. It is a brilliant bit of mechanical engineering hidden in plain sight. We often marvel at digital thermostats, yet this simple plastic pipe prevents your living room from smelling like a swamp.
Frequently Asked Questions
Can you install an AC air handler in an unconditioned attic?
Yes, builders execute this configuration frequently across the southern United States, though it forces the machinery to operate under brutal thermal stress. When ambient roof temperatures spike to 130 degrees Fahrenheit, the metallic cabinet must fight aggressively against radiant heat intrusion. The exterior skin of the configuration requires minimum R-8 fiberglass insulation blankets internally to prevent sweating. Without this internal barrier, condensation will warp the outer casing and eventually ruin your drywall ceiling below. As a result: routine inspections become mandatory to ensure the primary drain pan hasn't cracked under the intense heat cycles.
How do you distinguish an air handler from a standard furnace visually?
The primary visual giveaway requires inspecting the utility connections entering the sheet metal enclosure. A gas furnace invariably features a yellow brass or black iron gas pipe alongside a wide concentric PVC or double-wall metal vent pipe designed to carry away toxic carbon monoxide. The dedicated cooling system air handler lacks these combustion elements completely, presenting a cleaner silhouette punctuated only by two insulated copper refrigerant lines and a low-voltage control wire bundle. Do you really want to guess which system you have when an emergency shut-off is required? Look for the copper lineset; if it enters a plain metallic box without a gas valve, you are looking at your cooling unit.
What is the average lifespan of a residential air handling cabinet?
A properly maintained metallic housing structurally endures for roughly 12 to 15 years before internal corrosion compromises the integrity of the framework. Over a decade of heavy operation, the constant presence of moisture from the evaporator coil slowly degrades the galvanized zinc coating on the lower panels. The issue remains that microscopic biological growth can degrade the internal acoustic insulation foam, causing it to peel away from the metal walls and clog the blower wheel. If your unit experiences chronic high humidity, the structural fasteners can rust completely through, which explains why older units often rattle violently during startup cycles.
The Verdict on Domestic Air Management
We spend thousands of hours staring at sleek smart thermostats while entirely ignoring the hulking steel monolith hidden inside our utility closets. The visual identity of your AC air handler matters because it represents the literal heart of domestic respiratory health. It is a complex network of pressurized chambers, heavy blowers, and thermodynamic coils masquerading as a boring grey box. Stop treating this machinery like a passive piece of basement furniture. The next time your home feels sticky or stagnant, bypass the digital screen on the wall, grab a flashlight, and inspect the steel enclosure downstairs. Your comfort depends entirely on the physical integrity of that metallic fortress.
