Understanding the Proportional Term in Classical Control Engineering
Back in 1911, visionary engineer Elmer Sperry pioneered automatic ship steering systems that relied on primitive feedback loops. But the mathematical rigor arrived later. Proportional control calculates an output value that is strictly linear to the current error value. The issue remains that engineers often confuse raw gain with actual stability. When you tweak that knob, the system responds instantly. Yet, people don't think about this enough: a high gain causes violent oscillations, whereas a low gain leaves the system sluggish.
The Historical Evolution of Feedback Loops
Nicolas Minorsky formalized the three-term mathematics in 1922 while designing automatic steering gear for the US Navy. He noticed that helmsmen naturally applied rudder angle proportional to the yaw error. But he also added correction based on the rate of change. That is where things get fascinating. Minorsky never actually built a full PID controller himself. Instead, Taylor Instrument Company commercialized the first pneumatic PID controller in 1933 using his blueprint. We are far from those clunky brass pipes today, yet the core math remains identical inside silicon chips running at 100 kilohertz.
Mathematical Foundations of Error Amplification
Mathematically speaking, the proportional action multiplies the error signal $e(t)$ by a tuning constant $K_p$. The resulting control output $P_{out} = K_p e(t)$ seems deceptively simple. That changes everything. Because it lacks memory, a pure proportional controller almost always leaves a permanent steady-state error under constant loads. I have spent hours staring at temperature curves in reactor vessels where zero error was mathematically impossible without adding integral action. Experts disagree on whether modern autotuning algorithms handle this gracefully, and honestly, it is unclear if software heuristics will ever fully replace veteran technicians.
Deep Dive Into Proportional Gain Dynamics and System Response
Let us look at a concrete instance. Imagine the 300-meter-long container ship Emma Mærsk navigating the Suez Canal on a windy Tuesday in November 2024. If the rudder uses only proportional control with a gain set too low, the vessel drifts off course before the actuator wakes up. Conversely, set it too high, and the ship snakes violently from bank to bank like a startled serpent. The proportional band defines the percentage of the input range where the output changes from zero to one hundred percent. As a result: narrowing that band amplifies the reaction, turning a gentle nudge into a violent shove.
Tuning Parameters and the Reality of Gain Saturation
Actuators have physical limits. A valve cannot open past 100 percent, no matter what the proportional equation demands. This creates windup nightmares in multi-stage loops. In 2018, a chemical processing facility in Antwerp suffered a minor thermal excursion because an operator cranked the proportional gain past safe thresholds. The valve slammed back and forth 40 times a minute until the stem sheared off. Which explains why veteran instrument techs treat the proportional knob with deep respect. You cannot just crank it up and walk away.
Transient Behavior Versus Steady-State Accuracy
Every control loop faces a brutal compromise between rise time and overshoot. If you want the system to reach a target temperature of 150 degrees Celsius inside a semiconductor diffusion furnace instantly, you need aggressive proportional action. Except that doing so causes the temperature to spike to 175 degrees before settling down. Silicon wafers warp at those tolerances. Therefore, engineers deliberately sacrifice speed to maintain strict thermal boundaries. We find this trade-off everywhere from cruise control in a 2025 Tesla Model Y to the stabilization gimbals on the James Webb Space Telescope.
Comparing Proportional Control With Derivative and Integral Actions
Standing alone, the proportional term is like a driver who only looks at how far they are from the car ahead right now, ignoring both their current speed and upcoming traffic jams. The integral term looks backward to eliminate cumulative drift, while the derivative term looks forward to predict future trajectory based on velocity. Yet, the P term carries the heaviest workload during sudden disturbances. Think of it as the shock absorber on a rally car hitting a sudden pothole at 120 kilometers per hour. The spring compresses immediately, absorbing the initial shock before the dampers can even process the event.
Why Pure Proportional Loops Fail in Complex Industrial Environments
Dropping the I and D terms creates a proportional-only controller, widely abbreviated as P-only. These are cheap, easy to understand, and completely useless for precise chemical dosing. If you are mixing hydrochloric acid and sodium hydroxide at a plant in Houston, a P-only loop will settle at the wrong pH balance every single time the inflow rate shifts. The steady-state offset is a mathematical certainty. You can minimize it by cranking up the gain, but that triggers instability. Where it gets tricky is balancing that eternal tug-of-war between sluggish precision and unstable speed.
Common mistakes/misconceptions
Confusing Proportional Gain with integral windup
Many engineers assume that tuning the P in PID is solely about cranking up the proportional gain until the system responds instantly. Yet, this approach often triggers catastrophic overshoots that ruin mechanical components. As a result: the system oscillates wildly instead of stabilizing smoothly. You see, proportional control cannot eliminate steady-state error by itself. Which explains why blindly raising this parameter causes severe instability rather than precision. (We have all witnessed a motor twitching uncontrollably on a workbench.)
Treating the proportional term as a standalone fix
The issue remains that operators frequently isolate the P parameter from its derivative and integral siblings during tuning sessions. Let's be clear: tuning a PID controller in a vacuum is a fool's errand. Because the proportional term only reacts to the present error, ignoring future trends and past accumulation guarantees suboptimal performance. Concrete example: a heating element controlled purely by proportional action will settle below its target temperature because it lacks the integral boost needed to bridge the final gap.
Little-known aspect or expert advice
Leveraging derivative damping to tame aggressive proportional responses
Most textbooks treat the P in PID as a static multiplier, but experienced practitioners know it behaves dynamically with the error rate. When you push the proportional gain past 85 percent of the ultimate sensitivity threshold, the system begins to chatter. To combat this, you must introduce derivative damping early in the tuning cycle. This hidden synergy allows you to use a higher proportional gain—often exceeding a multiplier of 4.2 in industrial loops—without inducing unwanted resonance. Irony dictates that the best way to make a fast proportional response behave is to let the derivative term act as a digital brake.
Frequently Asked Questions
What happens if the proportional gain is set too high in a thermal system?
When the proportional gain exceeds safe limits, the heater will overshoot its setpoint by up to 30 percent in milliseconds. This aggressive reaction causes rapid thermal stress, degrading heating elements 45 percent faster than normal operation. The system enters a permanent oscillation loop where temperatures swing wildly between extremes. In short, excessive proportional action destroys hardware longevity for the sake of temporary speed.
Can proportional control completely eliminate steady-state error on its own?
No, a pure proportional controller always leaves a residual offset known as droop. For instance, in a 100-bar pressure regulation valve, a 5 percent load disturbance will permanently sit below the target. The controller requires an error to generate a corrective output, meaning zero error equals zero correction. Except that relying on P alone leaves systems chronically under-corrected.

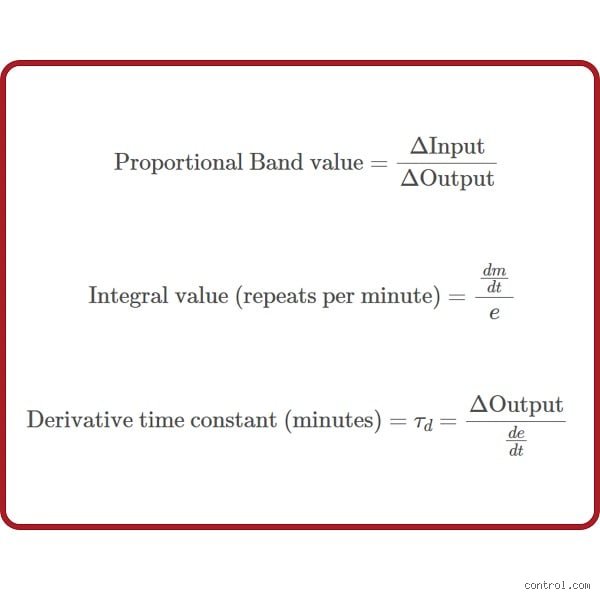

How does the proportional band relate to proportional gain mathematically?
Proportional band is simply the inverse of proportional gain expressed as a percentage. If a controller has a gain of 2.0, its proportional band sits precisely at 50 percent of the total input span. This metric dictates the exact range over which the output scales linearly from zero to full capacity. Understanding this ratio helps technicians scale inputs accurately across different hardware architectures.
engaged synthesis
The proportional term is the beating heart of any control loop, demanding absolute respect from every automation specialist. We must abandon the lazy habit of tuning PID systems through trial-and-error guesswork alone. Mastery requires recognizing that the P parameter sets the baseline aggression for every movement a machine makes. If you fail to balance this immediate reaction with proper damping, your entire automation architecture will eventually fracture under its own weight. Let us build systems that honor the mathematical reality of feedback instead of fighting it.
