Demystifying the Derivative Term in Modern Control Systems
The Anatomy of Error Velocity
If you have ever driven a car with cruise control on a hilly highway, you have felt proportional and integral logic at work. Yet the derivative action is the invisible hand that prevents whiplash when you hit a steep incline. Rate of change matters because it tells the controller how fast the process variable is sprinting toward or away from the setpoint. In 1911, Elmer Sperry patented the first practical marine autopilot using early stabilizing feedback, though the full three-term PID algorithm took decades to standardize across manufacturing plants.
Mathematical Foundations of Predictive Correction
The math behind this specific letter in the acronym involves calculating the slope of the error curve over a tiny time interval delta $t$. Because of this calculation, the system reacts to the trend rather than just the current discrepancy. That changes everything. Experts disagree on whether derivative gain should act on the process variable or the error directly (to avoid derivative kick during setpoint changes), and honestly, it is unclear which method dominates every single legacy PLC setup in operation today across over 10 million deployed industrial nodes worldwide.
How Derivative Action Anticipates System Disturbances
Damping Oscillations in High-Speed Manufacturing

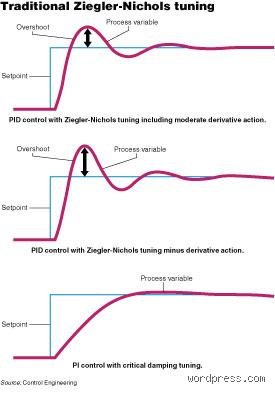

Consider a robotic arm assembling microchips at a factory in Munich circa 2023. If the arm moves too fast, it overshoots the soldering pad by 0.05 millimeters, ruining a component worth hundreds of euros. The derivative term acts like an electronic shock absorber by applying counter-pressure the moment acceleration spikes. We are far from the days of purely manual tuning where technicians relied solely on guesswork and trial-and-error heuristics developed back in 1942 by John G. Ziegler and Nathaniel B. Nichols.
The Danger of Noise Amplification
The issue remains that derivative control hates electronic noise with a fiery passion. Because it calculates the slope of a signal, even a microscopic sensor jitter gets multiplied into a massive output spike that can fry a valve actuator in milliseconds. Engineers combat this by throwing a low-pass filter into the feedback loop, which introduces a tiny phase lag (a trade-off nobody loves making). You get stability, but you lose a fraction of your predictive edge.
Proportional Integral Derivative Versus Pure Proportional Loops
Why PI Control Often Wins Popularity Contests
Many plant operators simply turn the D term off and run a PI controller instead, especially in temperature regulation where sluggish thermal mass makes fast predictions useless. Integral action eliminates steady-state error completely over time, whereas derivative action remains completely silent if the error is sitting still—even if that static error is massive. (Think about a car stuck on a hill unable to move forward.) Hence, in slow-moving chemical reactors found in Houston refineries, derivative control is frequently disconnected entirely.
Transient Response Analysis Across Industries
When comparing control strategies in aerospace stabilization versus municipal water treatment, the presence of the derivative term is the exact boundary line between chaotic instability and surgical precision. In a drone flight controller updating at 8000 Hertz, the D term consumes most of the computational horsepower because angular velocity needs instantaneous dampening. We're talking about microsecond adjustments that keep quadcopters from flipping upside down in mid-air gusts.
Common mistakes/misconceptions
Misinterpreting the Derivative Gain As Predictive Magic
Most beginners assume that the derivative action possesses some sort of mystical clairvoyance. They genuinely believe the D term predicts future errors before they happen. Let's be clear: math cannot gaze into tomorrow. The algorithm merely calculates the instantaneous slope of the error curve. If the process variable starts moving wildly, the derivative response spikes. Because of this reactive velocity measurement, sudden changes trigger aggressive output corrections. You are not forecasting destiny; you are just reacting to the immediate speed of change.
Ignoring the Perils of Measurement Noise
The problem is that real-world sensors are messy. Raw physical signals always carry high-frequency electronic jitter. When you pass a noisy signal through a differentiator, that innocent fuzz gets magnified into a massive, erratic storm. As a result, your actuator spends its entire life twitching violently against phantom disturbances. Experienced engineers spend hours filtering this noise out. If you skip low-pass filtering, the PID controller will destroy mechanical valves through sheer vibration.
Turning Up D to Stop Ordinary Oscillations
Many operators crank up derivative gain whenever a loop oscillates. They think dampening solves every stability issue. Yet, excessive D amplification usually amplifies sensor noise until the system destabilizes anyway. The issue remains that tuning requires delicate balance rather than brute force. You need to respect physical limitations instead of leaning on a single parameter to rescue a poorly designed process.
Little-known aspect or expert advice
The Derivative on Measurement Trap
Most standard textbooks teach you to calculate the derivative based on the error signal. Professional control practitioners know this is a rookie trap. Whenever your setpoint changes abruptly, the error jumps instantly from zero to a massive number. This creates a terrifying vertical spike in the derivative calculation, known as derivative kick. To bypass this headache, elite tuners configure their hardware to calculate the derivative on measurement instead. By differentiating only the process variable rather than the error, you keep the actuator calm during setpoint transitions.
Frequently Asked Questions
Why does the derivative term amplify high-frequency noise?
Mathematical differentiation calculates the rate of change between consecutive data points over a tiny time step. When minor sensor fluctuations occur rapidly, the slope between those samples becomes artificially steep. This mathematical amplification scales inversely with the loop sampling interval. Therefore, a 1 millisecond update rate can turn a harmless 0.01-volt sensor wobble into a violent output swing. Engineers must deploy digital filters to strip out frequencies above 10 hertz before the math block ever sees them.
How do I know if my derivative gain is set too high?
Your control valves will emit a high-pitched squeal or a rapid clicking sound as they constantly oscillate by microscopic amounts. Process trend charts will display fuzzy, jagged lines where the control output is thrashing back and forth by 5 to 10 percent continuously. Motor temperatures will rise noticeably because the internal windings are fighting micro-movements. If you touch the actuator housing and feel rapid buzzing, your D gain is destroying the hardware.
Can I run a PID loop with zero derivative gain?
Thousands of industrial temperature loops operate purely on proportional and integral control without any derivative action whatsoever. Temperature processes tend to change sluggishly, meaning the rate of change is too slow to provide a reliable derivative signal anyway. Flow loops also frequently disable D because turbulence creates too much noise for a differentiator to handle safely. In short, derivative is an optional luxury reserved for fast-moving mechanical systems like motor drives.
engaged synthesis
The derivative term is neither a useless gimmick nor a magical fix for sloppy engineering. It represents a calculated gamble on velocity, demanding pristine sensor data and careful tuning discipline to yield results. If you treat it with respect, your system gains supreme stability and lightning-fast settling times. Ignore its appetite for noise, and you will watch mechanical hardware self-destruct in real time. The choice is yours, but remember that clean data always wins over aggressive math.
