How Industrial Control Systems Actually Evolve From Relays To Silicon
The Relays That Started It All
Back in 1968, General Motors Hydra-Matic division desperately needed a replacement for massive, failure-prone rooms filled with thousands of electromechanical relays that cost fortunes to rewire every time a car model changed. Invented by Bedford Associates, the Modular Digital Controller (Modicon 084) changed everything by replacing copper wiring with solid-state memory and ladder logic programming. Because factory floors resemble warzones filled with electrical noise, extreme thermal swings, and violent vibrations, standard office computers would have melted down instantly. This harsh reality forced hardware designers to build industrial controllers with optocouplers, heavy-duty galvanic isolation, and cast-aluminum enclosures capable of surviving ambient temperatures up to 60 degrees Celsius without blinking.
The Architecture Of Modern Processing Units
Modern microprocessors inside these ruggedized chassis execute cyclic scan routines millions of times faster than their 20th-century ancestors, reading thousands of discrete inputs and computing outputs in microseconds. Yet, raw processing muscle means nothing without rigorous deterministic timing, which explains why a PLC guarantees an absolute execution window unlike standard desktop operating systems prone to background updates. You see, the operating system inside a typical industrial controller sacrifices multitasking flexibility for absolute execution predictability, ensuring a safety-stop input triggers an output relay in under 10 milliseconds flat. We are far from the days of simple timing cards; today's modular racks manage decentralized remote I/O drops via gigabit industrial Ethernet protocols like PROFINET and EtherNet/IP.

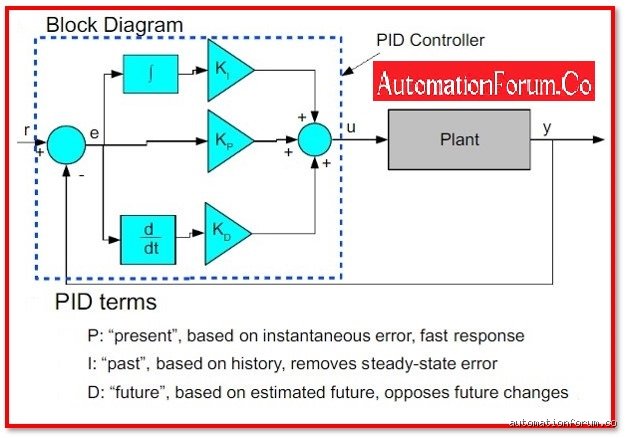

Deconstructing The Mathematical Core Of Proportional-Integral-Derivative Loops
Proportional Action And The Immediate Error Response
Once a controller reads physical data, managing continuous variables requires calculating an error value representing the difference between a desired setpoint and an actual process variable. The proportional term immediately multiplies this instantaneous error by a specific gain constant, generating a corrective push that scales directly with the magnitude of the discrepancy. But relying solely on proportional control introduces a permanent steady-state offset, meaning the system settles slightly below or above the target because the corrective force drops to zero precisely when the error vanishes. Honestly, it is unclear why novice technicians still expect proportional-only loops to eliminate error completely without adding integral action to sweep up the remaining offset over time.
Integral And Derivative Magic
The integral component accumulates past errors over a rolling time window, steadily increasing the control output until historical offset vanishes completely, though this aggressive memory can trigger violent process overshoot if tuned too aggressively. Meanwhile, the derivative component acts as an electronic crystal ball, evaluating the rate of change of the error to apply braking friction before the variable overshoots the target setpoint. The issue remains that derivative action amplifies high-frequency sensor noise catastrophically, forcing control engineers to insert low-pass software filters just to keep analog input cards from burning out. By combining all three terms into a unified mathematical equation, a PID loop achieves a level of steady-state stability that human operators simply cannot replicate manually during a high-speed chemical reaction.
The Hidden Mechanics Of Closed-Loop Control In Heavy Industrial Environments
Closed-Loop Synchronization Across Complex Networks
Executing a closed-loop control strategy requires a continuous, unbroken feedback circuit where sensors measure a physical state, the controller computes a mathematical correction, and an actuator physically alters the process. In a 500-megawatt coal-fired power plant located in Wyoming, a Siemens S7-1500 controller coordinates thousands of these loops simultaneously to regulate boiler feedwater pressure, fuel-air ratios, and turbine steam valves at a blazing update rate of 50 milliseconds per cycle. If a single pressure transmitter fails or drops off the fieldbus network, the entire subsystem switches to manual fallback mode to prevent catastrophic turbine cavitation. This deep integration proves that hardware durability and algorithmic precision must work in absolute harmony, because a brilliant control algorithm running on a faulty processor core is essentially useless.
Tuning Nightmares In Real-World Plants
Tuning these complex control loops remains an art form wrapped in rigorous calculus, where veteran instrumentation technicians rely on heuristic methods like the Ziegler-Nichols tuning technique or automated relay feedback identification algorithms embedded in modern engineering software suites. Experts disagree fiercely on whether manual trial-and-error tuning outperforms automated tuning algorithms, and honestly, the best approach usually depends entirely on the specific nonlinear dynamics of the thermal or fluid process being regulated. When a PID loop begins to oscillate violently due to aggressive integral gain settings, the resulting mechanical fatigue can snap heavy-duty stainless steel control valves right off their mounting flanges within a matter of days.
Comparing Traditional PID To Advanced Model Predictive Control Alternatives
PID Versus Modern Multi-Variable Solutions
Traditional PID loops operate as single-input, single-output entities, meaning they struggle immensely when controlling highly interactive multi-variable processes where changing one valve inadvertently affects five different downstream pressure zones. Advanced Process Control and Model Predictive Control algorithms bypass these limitations by utilizing mathematical process models to forecast future behavior over a sliding time horizon, calculating simultaneous optimal trajectories for dozens of manipulated variables at once. Yet, deploying a complex Model Predictive Control package requires massive computational overhead and continuous maintenance contracts costing hundreds of thousands of dollars, making standard PID controllers the undisputed workhorse for 90 percent of basic industrial applications.
The Economics Of Industrial Automation Hardware
Choosing between a legacy relay-based architecture and a modern software-defined automation stack often comes down to upfront capital expenditure versus long-term operational downtime costs, especially when a single hour of unplanned line stoppage at an automotive plant in Detroit bleeds upwards of $50,000 in lost revenue. Hardware platforms from manufacturers like Rockwell Automation and Schneider Electric have evolved from isolated rack-mounted boxes into hyper-connected edge nodes capable of streaming raw telemetry data directly to cloud-based predictive maintenance dashboards via MQTT and OPC UA protocols. The balance of power in factory automation has shifted toward software flexibility, yet the foundational requirement for robust, deterministic PLC scanning and precise PID loop execution remains completely immutable.
Common mistakes/misconceptions
Tuning by trial and error
Many novice technicians approach a PID loop like a broken radio dial, twisting gains blindly until the plant output stops oscillating. The problem is that guessing wastes valuable production hours and frequently damages mechanical actuators. Instead of scientific observation, operators rely on sheer luck, which explains why boilers start rattling on a Tuesday afternoon. We must abandon guesswork because precision requires structured mathematical tuning methods like Ziegler-Nichols or relay feedback tests. If you ignore proper system identification, stability vanishes instantly.
Treating the PLC as a simple relay
Let's be clear: a modern programmable logic controller operates far beyond the humble electromechanical relays of the past. Amateurs often design ladder logic as if they are simply wiring physical switches on a workbench, ignoring scan-time constraints and memory allocation. As a result, catastrophic race conditions emerge when multiple routines attempt to modify identical register values simultaneously. We admit our own past code looked like a bowl of digital spaghetti before adopting strict modular programming standards. Treat your controller like a high-speed computer, because it actually is one.
Ignoring sensor noise filtering
Raw hardware signals are messy, jumping around unpredictably due to electromagnetic interference from nearby variable frequency drives. Beginners frequently plug raw analog inputs straight into their control algorithms, causing the control output to jitter furiously. Yet, ignoring software filters like exponential moving averages wears out valve stems prematurely. The issue remains that hardware alone cannot save a poorly conditioned feedback signal. You need robust digital filtering inside the industrial automation architecture to keep your control loops smooth and reliable.
Little-known aspect or expert advice
The hidden danger of integral windup
When a process hits a physical limitation—like a control valve slamming fully open—the error keeps accumulating inside the controller memory anyway. This sneaky phenomenon, known as integral windup, causes massive overshoot once the system finally tries to recover. To combat this, advanced engineers implement conditional integration or back-calculation tracking circuits that freeze the accumulated error when saturation occurs. Except that most out-of-the-box software blocks hide these settings deep in undocumented parameters. Master this hidden mechanism, and you will eliminate those frustrating recovery spikes that plague factory floors.
Frequently Asked Questions
How fast does a typical PLC execute a program scan cycle?
Modern industrial controllers process ladder logic instructions at blistering speeds, typically executing a complete scan in 1 to 10 milliseconds depending on program size. During this tiny window, the processor reads all physical inputs, solves the user logic, and updates the output tables. If your physical process changes faster than this update rate, the controller will miss critical transients entirely. Therefore, engineers must always match the processor execution speed to the specific physical dynamics of the machinery they are regulating.
What is the primary difference between P, I, and D actions?
Proportional action reacts directly to the current error, integral action corrects for past accumulated offset, and derivative action predicts future trends based on the rate of change. By combining these three distinct mathematical behaviors, a closed-loop control system achieves zero steady-state error without overshooting the setpoint. In practical applications, over 80 percent of industrial loops run successfully using only proportional and integral control because derivative action is too sensitive to noise. Tuning each term properly transforms a sluggish mechanical response into a razor-sharp, responsive operation.
Can a software-based PLC replace traditional hardware controllers?
SoftPLCs running on standard industrial PCs have evolved significantly, achieving deterministic execution rates as low as 0.5 milliseconds using real-time operating system patches. While traditional DIN-rail mounted hardware still dominates harsh environments due to rugged physical design, software controllers handle heavy data logging and complex math much faster. Facilities migrating toward edge computing frequently adopt software alternatives to reduce hardware footprint and lower overall system costs. However, you must still ensure your operating system kernel guarantees zero jitter before deploying it on high-speed motion tasks.
engaged synthesis
Engineering robust control systems is not about memorizing equations or blindly trusting default factory settings. We build reliable automation by respecting the invisible mathematical bridges connecting digital logic to physical reality. If you treat your hardware and software algorithms with the rigorous discipline they demand, unexpected failures shrink into manageable puzzles. The future belongs to builders who look past the marketing hype and master the raw, deterministic mechanics running beneath the surface. Stop guessing your gains, respect the scan cycle, and let precision guide your next installation.
