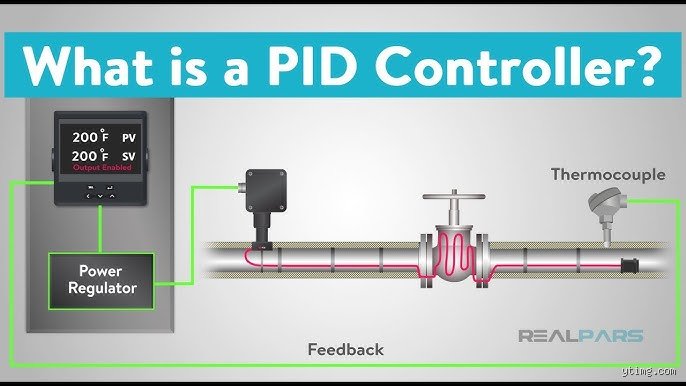

Understanding the Core Anatomy of Proportional Control Loops
The Historical Origins of Automatic Regulation
Back in 1911, an engineer named Elmer Sperry built the first automatic ship steering system using feedback principles that laid the groundwork for everything we use today. Yet, the actual mathematical formulation we rely on now was not formally analyzed until 1922 by Nicolas Minorsky for naval autopilot systems. We are far from it when looking at those clunky mechanical gears compared to modern microprocessors executing calculations at 1,000 Hz in 2026. The issue remains that tuning these systems is an art form as much as a science.
Breaking Down the Proportional Term
The proportional response gives an output that is directly proportional to the current error value. Because the error is multiplied by a gain factor ($K_p$), a larger error yields a larger corrective push—which explains why the system reacts aggressively when things drift far off. But if you rely solely on this term, the system will never actually settle precisely at the setpoint; it leaves a permanent steady-state error. Imagine trying to park a car by pushing the pedal based only on how far away the garage wall is: you slow down as you get closer, but you might stop an inch short, never quite touching it. Experts disagree on how much weight beginners should put into tuning this single parameter first, though honestly, it is unclear why anyone skips the foundational math.
The Mathematical Nuances of Integral and Derivative Actions
Integrating the Past to Eliminate Steady-State Error
The integral component takes accumulated past errors over time and adds them up to force that stubborn residual error down to zero. That changes everything for precision applications, like maintaining a 150 degree Celsius chemical reactor core in Stuttgart or keeping a semiconductor furnace stable within 0.01 degrees. But here is the catch: if the error persists too long, the integral term accumulates so much muscle that the system overshoots wildly—a phenomenon known as integral windup. As a result, software engineers must implement anti-windup algorithms to cap this runaway accumulation.
Anticipating the Future with Derivative Dynamics
Instead of looking at the present error or past mistakes, the derivative term looks at the rate of change to predict where the system is heading next. It acts like a shock absorber, dampening the oscillation caused by the proportional and integral components. When a sudden disturbance hits—say, a 50 psi pressure drop in a Munich pipeline—the derivative action reacts instantly to counteract the spike before it gets out of hand. Yet, noise in the sensor signal can completely poison this derivative term, turning helpful dampening into violent jitter.
Real-World Deployment and Tuning Methodologies
Ziegler-Nichols and Practical Tuning Challenges
John G. Ziegler and Nathaniel B. Nichols published their famous tuning rules back in 1942, and technicians still use modified versions of those heuristics today across over 80 percent of industrial loops. You crank up the proportional gain until the system oscillates continuously, note the ultimate period ($T_u$), and then calculate your parameters using specific formulas. The thing is, real industrial plants are nonlinear and messy; a tuning matrix that works at an oil refinery in Houston at noon might fail completely when the desert temperature drops by 20 degrees at night. We see operators resorting to trial-and-error adjustments because theoretical models rarely match physical reality on the factory floor.
Alternative Control Strategies in Modern Engineering
Model Predictive Control Versus Traditional Loops
While PID remains the undisputed workhorse of process control, advanced facilities increasingly turn to Model Predictive Control (MPC) to handle multi-variable interactions that would break standard loops. MPC uses an internal mathematical model of the process to forecast future behavior over a moving time horizon, optimizing inputs while respecting strict operational constraints. Yet, the sheer computational overhead of MPC means it cannot replace the simple, lightweight footprint of a PID controller running on a cheap microcontroller inside a valve actuator.
Common Mistakes and Misconceptions Around PID Systems
People often ask: What does PID stand for? While the three letters represent proportional, integral, and derivative, vast numbers of practitioners misunderstand how these three terms interact inside physical loops. You might assume that cranking up the proportional gain accelerates system response without consequence. It sounds logical on paper. The problem is that excessive proportional action introduces violent oscillations that can shake mechanical actuators apart. When you push the proportional term too hard without balancing integral memory, the system overshoots its target repeatedly. As a result: temperature controls cycle wildly, motorized valves wear out prematurely, and chemical mixing tanks fail quality checks. (And believe me, I have seen plant technicians burn out expensive heating elements this way in less than twenty-four hours.) You cannot force a slow thermal system to act like a high-speed servo motor simply by multiplying the error multiplier by ten.
Ignoring Integral Windup in Real-World Hardware
Another major mistake centers around what control engineers call integral windup. When an actuator reaches its physical limit—such as a valve opening to 100% capacity—the error between the setpoint and process variable might persist. The integral term continues accumulating this error relentlessly over time. Because the math keeps adding numbers to memory while the physical hardware cannot open any further, the internal controller output climbs to absurd virtual levels. When the process variable finally crosses the desired setpoint, the controller refuses to respond immediately. The system remains trapped in saturation until the accumulated error drains away. Which explains why heating tanks frequently overshoot target thresholds by 15% or more during cold start-ups. Yet engineers often blame the sensor calibration rather than fixing the integrator clamping logic inside the firmware.
Confusing Automation Terms with Operating System Utilities
Context matters immensely when asking what the acronym means in everyday technical work. In industrial automation, you are calculating setpoints for fluid dynamics or thermal balance. In software engineering, however, the exact same letter combination refers to a Linux process identifier. System administrators inspecting server performance via terminal commands interact with a numeric process identifier ranging from 1 to 32768 rather than a closed-loop controller. Similarly, environmental hazard teams use the same abbreviation to refer to a photoionization detector capable of measuring volatile organic compounds down to 0.1 parts per million. Mixing up these definitions during cross-departmental planning meetings creates immediate confusion. Let's be clear about which domain you are discussing before writing specifications or troubleshooting system behavior.
Expert Advice on PID Loop Optimization and Unknown Dynamics
If you want to achieve smooth control without continuous manual tweaking, you must focus on noise suppression before touching derivative settings. Most technicians attempt loop tuning by adjusting all three gains simultaneously. That approach fails. Why do engineers still rely on a century-old algorithm in modern AI-driven factories? Because the three-term loop remains remarkably robust when properly filtered. The issue remains that derivative action calculates the instantaneous rate of error change, making it hypersensitive to electrical noise on sensor wires. If your analog input line picks up tiny millivolt spikes from nearby motor drives, the derivative term calculates massive instantaneous spikes. The controller then commands frantic, high-frequency valve movements that destroy mechanical components.
Mastering Derivative Filtering Before Adding Gain
The solution lies in placing a low-pass filter directly on the derivative path before increasing derivative gain. By smoothing raw sensor signals over a rolling window of 50 ms, you eliminate high-frequency noise while retaining genuine trend data. Once filtered, the derivative calculation acts as a true predictive brake, counteracting overshoot before it occurs. But ignoring derivative noise filtering guarantees erratic control loops regardless of how expensive your programmable logic controller is. I take a strong position here: auto-tuning software built into modern hardware is vastly overrated, and manual Ziegler-Nichols tuning method adjustments paired with physical signal filtering produce far more stable results under real operating conditions. To be completely fair, non-linear chemical reactors with unpredictable dead times exceed what standard three-term loops can safely handle without custom feedforward compensation. Nothing says engineering precision quite like spending four hours tweaking a gain value only to end up right where you started.
Frequently Asked Questions
What does PID stand for in automation versus software engineering?
In automation engineering, the acronym stands for proportional-integral-derivative algorithm, which serves as a closed-loop feedback control mechanism created by Nicolas Minorsky in 1922. In software development and operating systems like Linux or Windows, the exact same letters stand for process identifier, which represents a unique numerical index assigned by the kernel to track active running programs. Industrial feedback controllers calculate continuous mathematical corrections within 0.1 milliseconds, whereas operating system process identifiers simply manage memory allocation and CPU execution tasks. Over 80% of automated manufacturing facilities worldwide rely on three-term control loops to maintain precise pressure, flow rate, and temperature balance daily. Knowing which definition applies depends entirely on whether you are adjusting physical control valves or managing software threads.
How do you tune a PID controller without crashing the system?
Safe tuning requires setting integral and derivative gains to zero while slowly raising proportional gain until the system exhibits consistent, stable oscillations. Once you record the ultimate gain and oscillation period, you apply standard mathematical formulas to establish initial baseline parameters without driving hardware into dangerous resonance states. Modern digital controllers execute these sampling loops every 10 milliseconds, allowing technicians to test small step-change responses safely. Implementing strict software output limits prevents actuators from reaching extreme physical boundaries during step testing. Proper gain calibration regularly yields up to 30% energy reduction across heavy industrial heating and cooling applications when performed systematically.
Why is the derivative component turned off in over 80% of industrial applications?
Plant operators frequently disable the derivative component because unfiltered sensor noise causes severe mechanical wear on control valves and actuators. Derivative action reacts sharply to rapid input variations, amplifying tiny measurement fluctuations into massive output swings that stress physical hardware. For standard liquid level or pressure loops where fast response times are unnecessary, a basic proportional-integral setup provides sufficient stability without risk. Filtering signal noise requires advanced signal processing setup, which many field technicians bypass to save commissioning time. Consequently, turning off the derivative term remains the standard practical choice across high-noise factory floors.
Synthesis and Final Verdict on PID Architectures
Understanding What does PID stand for? is merely the starting point for mastering closed-loop control systems across modern industry. We must stop treating three-term loop algorithms as mysterious magic boxes and start handling them as precise mathematical instruments. While software vendors continuously promote artificial intelligence replacements, classical feedback control remains unmatched in reliability, speed, and mathematical predictability. Relying blindly on automated auto-tuning buttons without understanding core physical dynamics is a recipe for system failure and equipment damage. Proper signal filtering combined with disciplined manual gain adjustment will always beat over-engineered, opaque control schemes on real factory floors. Master the underlying physics first, control the sensor noise second, and your control loops will perform flawlessly for decades.
