Common Mistakes and Misconceptions in PID Control Setup
Treating Derivatives as Magic Speed Boosters
The derivative term sounds incredible on paper. It anticipates future trajectory based on current slope. But in actual hardware installations, raw sensor signals carry electrical noise from nearby high-voltage motors, variable frequency drives, or dirty power grids. When you feed a noisy signal into a derivative calculation, the derivative amplifies every micro-spike into a violent control reaction. Derivative action acts as a noise multiplier when un-filtered. Your control valve will chatter incessantly, destroying its mechanical actuators within months. In practice, seasoned engineers cap or completely disable the derivative gain unless high-frequency filtering cleans the input signal first.
Over-Relying on Autotuning Algorithms
Can built-in software routines calculate perfect gain coefficients automatically? Sometimes. Yet the issue remains: autotuning functions perform a basic step response test on a cold system, assuming the process response is completely symmetrical. When heating an industrial oven, adding energy is rapid, but cooling down relies on passive ambient dissipation. A single set of mathematical parameters cannot govern two fundamentally dynamic behaviors. Uncritical acceptance of autotune parameters frequently results in severe overshoot during initial startup, wasting energy and potentially scorching sensitive batches of raw material.
Ignoring Dynamic Process Dead Time
The physical distance between an actuator and its downstream measurement sensor creates transport delay. If you pump liquid down a 50-foot pipe, your sensor does not know temperature changed until seconds later. Increasing controller aggressiveness while waiting for that sensor to react causes catastrophic hunting. Process lag breaks standard PID math because the mathematical engine assumes immediate feedback. Pushing proportional values up during a lag state guarantees violent, endless oscillations.
Little-Known Aspects and Expert Advice for Complex Loops
How do high-end automated facilities achieve rock-solid stability when basic math falls short? They cheat the basic feedback loop. Standard feedback is fundamentally reactive; it must suffer an error before it decides to fix it. If a massive cold slab of steel drops onto a conveyor line entering a furnace, waiting for internal temperature to drop before opening gas valves is already too late.
Integrating Feedforward Architecture with Standard Loop Math
To fix reactive delays, control architects combine feedback loops with feedforward predictive models. When sensors detect an incoming load change, the system immediately shifts baseline control output upward before ambient temperature even drops a fraction of a degree. The classical feedback loop then simply cleans up residual inaccuracies. Feedforward control prevents massive transient dips by anticipating disturbances rather than reacting to them post-facto. Incorporating this hybrid strategy reduces peak recovery times by up to 75 percent in continuous processing lines. Let's be clear: relying exclusively on pure feedback for high-mass industrial processes is an outdated design choice that belongs in the last century.
Frequently Asked Questions

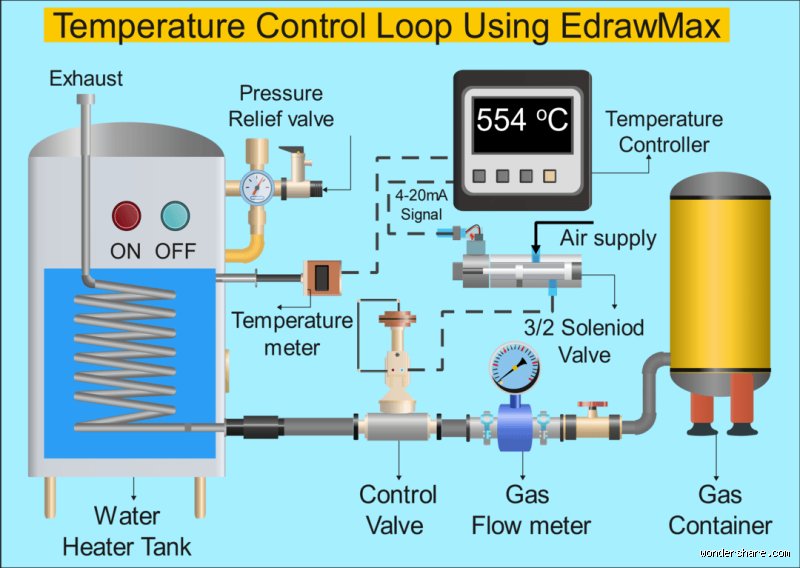

What is an example of a PID system in everyday home technology?
The most common household implementation is found inside high-end espresso machines and modern digital sous-vide immersion circulators. Traditional appliances use simple bi-metallic thermostats that cycle heating elements strictly between binary on and off states, causing internal temperatures to swing across a wide range of up to 5 degrees Celsius. In contrast, an espresso machine utilizing internal algorithmic control constantly adjusts electrical duty cycles to hold water within a tight 0.5-degree margin. This precision prevents thermal degradation of coffee compounds while maintaining exact extraction pressure. As a result: home baristas achieve commercial-grade consistency without manual temperature surfing.
Why does a proportional loop alone fail to reach the exact setpoint?
Proportional control outputs power proportional to current error, which means as the system approaches its target, error shrinks toward zero. Consequently, the control signal reduces until it perfectly matches ambient energy losses before actually reaching the desired value. This perpetual gap is technically recognized as steady-state error or offset, and it can leave process values hovering 2 to 10 percent below target indefinitely. Adding integral action solves this defect by continually accumulating historical error over time and steadily forcing output higher. Therefore, integral action provides the continuous push needed to close the final thermal gap entirely.
How do engineers select initial gains without destroying physical equipment?
Control technicians frequently employ structured heuristic methods such as the classical Ziegler-Nichols tuning procedure or open-loop step response analysis. By setting integral and derivative terms to zero, an engineer gradually elevates proportional gain until the system reaches a steady, continuous oscillation state known as ultimate gain. Taking note of that specific gain value alongside the wave oscillation period allows mathematical formulas to calculate functional baseline gains. Modern facilities often simulate these parameters within software environments like MATLAB prior to live execution. This precaution protects high-value industrial assets from physical damage during initial configuration phases.
A Direct Synthesis on Modern Control Implementation
The industry remains weirdly obsessed with theoretical math formulas while overlooking physical maintenance. You can spend weeks fine-tuning software gain coefficients on a digital interface, but a sticking pneumatic control valve or a degrading thermocouple will undermine that digital perfection instantly. Digital feedback control is not a magical substitute for robust mechanical engineering and regular hardware calibration. Physical plant dynamics inevitably change over time as components wear out, heat exchangers foul, and sensors drift. True control engineering requires recognizing that software parameterization is merely one half of the equation, while hands-on physical maintenance provides the necessary foundation. Prioritize system health first, maintain clean sensor signals second, and save loop tuning adjustments for last.
