Understanding the Core Architecture Behind the Proportional Integral Derivative Control Loop

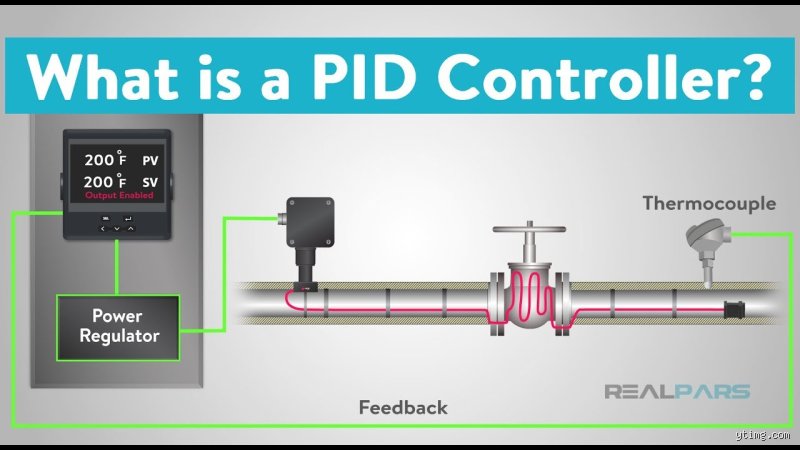

People don't think about this enough, but control theory dictates almost every physical comfort we experience daily. What does a PID system actually mean when stripped of its academic jargon? It represents a continuous feedback loop that calculates an error value as the difference between a desired setpoint and a measured process variable. (Honestly, it is wild how a formula devised over a century ago still governs modern robotics.) The issue remains: can software ever truly replicate the intuitive touch of a seasoned technician tuning a stubborn valve at 3 AM?
The Anatomy of Proportional Action
Proportional response reacts directly to the current error. If your temperature is 10 degrees off, the actuator moves proportionally harder. Yet, relying solely on this term leaves a permanent steady-state offset that engineers despise. As a result, you never quite reach the exact target without massive oscillation.
Integrating Past Errors for Complete Correction
Except that history matters. The integral component accumulates past errors over time to eliminate that stubborn offset completely. But because it keeps adding up old mistakes, overshoot can happen if you push the gain too high. We are looking at a delicate balancing act where a mere 5 percent miscalculation triggers systemic instability.
Unpacking the Mathematical Engine and Derivative Dynamics
Where it gets tricky is the derivative term, which anticipates future trends by evaluating the rate of change. Think of it like driving a car in heavy traffic on the M25 motorway; you do not just brake when you hit the bumper ahead, you watch brake lights two cars up. This predictive capability dampens the system response like a shock absorber on a rough gravel road. Experts disagree on whether derivative gain is even necessary for slow-moving thermal processes like large industrial boilers operating since 1994, because noise in the sensor reading can completely wreck the actuator output.
Tuning Methods That Shape Modern Engineering Practice
John G. Ziegler and Nathaniel B. Nichols published their famous tuning rules back in 1942 at Taylor Instrument Companies in Rochester, New York, and that changes everything about how we calibrate loops today. You adjust the proportional band until the system sustains a steady oscillation with a specific ultimate period, then you mathematically derive the optimal integral and derivative times. That methodology still guides technicians across thousands of manufacturing sites globally, even though automated auto-tuning algorithms have largely taken over.
Real-World Implementations and Where Traditional Loops Fall Short
Consider cruise control in a 2018 Ford Focus driving through the rolling hills of Pennsylvania. The vehicle encounters an unexpected incline, drops 4 mph below the target, and the PID controller instantly adjusts the throttle position to compensate. Yet, non-linear systems—like chemical reactors where temperature changes exponentially—often break traditional PID logic entirely. That is precisely why advanced process control and model predictive control have started eating into territory once exclusively held by standard PID algorithms.
Overcoming Saturation and Integral Windup
The actuator hits its physical limit, but the integral term keeps accumulating error anyway. This nasty phenomenon, known as windup, causes massive delays when the error finally reverses direction. Engineers combat this by implementing anti-windup tracking back-calculation, freezing the integrator whenever the control variable saturates at 100 percent capacity. It is a subtle fix that saves millions of dollars in wasted feedstock every single year across refineries.
Contrasting PID Control Against Modern Alternative Strategies
In short, while fuzzy logic and neural network controllers promise autonomous perfection, they lack the transparent, deterministic reliability of a well-tuned PID loop. You can easily audit a PID block on a Siemens PLC in under ten minutes, whereas explaining a deep reinforcement learning policy to a safety inspector is an absolute nightmare. The issue remains that simplicity often triumphs over theoretical elegance when lives and expensive machinery are directly on the line.
Why Simplicity Prevails in Industrial Settings
Because downtime costs upwards of 50000 dollars per hour in automotive assembly plants, operators demand predictable failure modes. A PID controller degrades gracefully and behaves according to linear differential equations you can sketch on a napkin. We are far from abandoning this technology, no matter how aggressively software startups push black-box machine learning alternatives into the industrial sector.
Common mistakes/misconceptions
Tuning by pure guesswork
Many technicians treat loop tuning like dark magic, twisting knobs until the actuator stops vibrating. Yet this trial-and-error method destroys system stability over time. Proportional Integral Derivative tuning requires methodical patience instead of blind luck. When you ignore mathematical modeling, unexpected oscillations will wreck your hardware within hours. Have you ever wondered why factory equipment suddenly starts hunting back and forth across a setpoint? Because someone relied on intuition rather than Ziegler-Nichols or relay feedback tests.
Neglecting derivative action limits
Another frequent blunder involves cranking up the D-term to aggressive levels without filtering noise. The issue remains that raw sensor data always contains high-frequency jitter. Amplifying that jitter burns out valve stems and overheats motor windings. As a result: actuators fail prematurely because the control signal behaves like a hyperactive caffeinated squirrel. You must implement derivative filtering or accept mechanical ruin.
Ignoring integral windup
Saturation sneaks up on automated loops when actuators hit their physical limits while error persists. Which explains why output values soar past 100 percent internally, creating massive delay before the loop can recover. (That invisible backlog is a silent killer of fast transient response.) Engineers forget to add anti-windup clamping, leaving the controller trapped in a loop of helpless overshooting.
Little-known aspect or expert advice
Hidden phase lag traps
Most operators focus entirely on gain margins while completely ignoring phase delay lurking in digital sampling rates. The problem is that every analog-to-digital conversion adds micro-delays that accumulate silently. If your PID algorithm samples too slowly, the mathematical model loses grip on reality. Let's be clear: hardware upgrades mean nothing if your execution cycle time lags behind physical process dynamics.
Frequently Asked Questions
What sampling frequency should a digital PID controller use?
Sampling frequency must be at least ten times faster than the fastest process time constant. For instance, a temperature loop with a time constant of sixty seconds requires a loop update rate of at least six seconds. In contrast, fast pressure control loops running at 100 Hertz demand microsecond-level execution to prevent aliasing. Selecting an improper tick rate introduces artificial phase lag that ruins your damping calculations. Precision relies entirely on respecting these timing boundaries.
Can a PID loop run without the integral term?
Running a controller as a pure proportional-derivative device is entirely possible and often preferred for specific motor positioning tasks. Steady-state error becomes acceptable when an external mechanism provides natural bias. For example, magnetic levitation systems utilize PD control to maintain stable hovering without accumulating residual drift. Removing the I-term eliminates windup risks entirely during rapid trajectory changes. Yet you must accept that a permanent offset will remain between your target and actual values.
Why does output chatter occur even when the error is zero?
Output chatter happens because minute sensor noise continuously triggers the derivative component. Even a fraction of a millivolt fluctuation gets multiplied by a high derivative gain value. This constant micro-adjustment forces the final control element to constantly twitch back and forth. Implementing a low-pass filter on the measurement input cures this annoying electronic stutter. Clean signals keep your actuators alive for years longer.
engaged synthesis
Automated control is not a set-it-and-forget-it software checkbox. It is an ongoing dialogue between digital math and messy physical reality. If you treat the PID algorithm like an appliance, equipment failure is guaranteed. True mastery demands respect for physical limits, sampling constraints, and mathematical realities. Embrace rigorous tuning protocols instead of lazy guesswork, and your loops will run smoothly for decades.
