Understanding the Historical Context of Industrial Process Control
People don't think about this enough, but modern automation rests on decades of trial, error, and hard-won mathematical breakthroughs. Back in 1911, an engineer named Elmer Sperry developed early automatic ship steering gear, yet the formal mathematics of control theory did not crystallize until Nicolas Minorsky published his groundbreaking analysis for the United States Navy in 1922. The issue remains that early mechanisms were purely mechanical or pneumatic, relying on flapper-nozzle systems rather than microchips. As a result: the transition from mechanical linkages to electronic analog controllers in the 1950s completely revolutionized how factories handled continuous variables.
The Evolution from Manual Tuning to Automated Algorithms
Operators used to adjust valves by hand while staring at bouncy analog dials in massive refineries located in places like Baytown, Texas. But human reflexes are too sluggish for high-speed chemical reactions occurring within milliseconds. Hence, John G. Ziegler and Nathaniel H. Nichols published their famous tuning rules in 1942, giving technicians a systematic way to calculate gains. Which explains why today we rely on digital microprocessors executing PID algorithms millions of times per second.
Mathematical Foundations of Error Correction

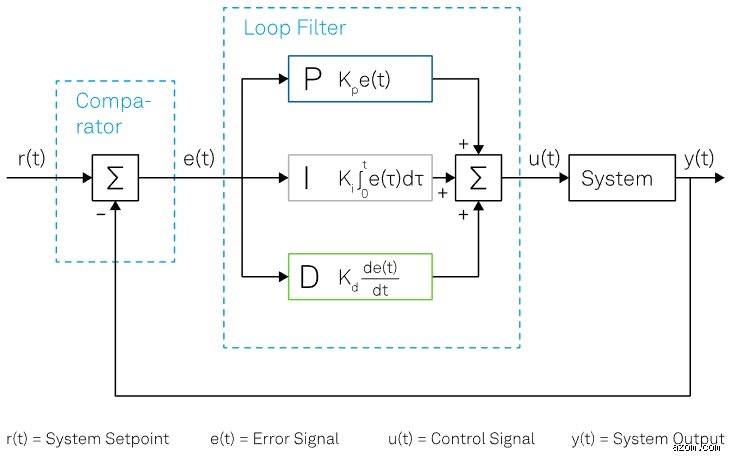

At its heart, a controller constantly calculates the difference between a desired setpoint and a measured process variable (known mathematically as $e(t) = SP - PV$). But how do you react to that discrepancy? Because if you respond too aggressively, the system overshoots and crashes. (Honestly, it is unclear whether pure theory can ever fully capture the chaotic friction of physical machinery.) That changes everything about how programmers write control loops.
Deconstructing the Proportional Term and Immediate Response
The proportional term generates an output value that is strictly proportional to the current error value. If your error is large, the correction is massive; if the error drops to zero, the proportional action vanishes entirely. Except that relying solely on proportional control introduces a permanent offset known as steady-state error. You can crank the gain up to maximum amplification, but the system will likely start vibrating wildly before eliminating the residual drift. For example, controlling a robotic arm weighting 45 kilograms at a manufacturing facility in Detroit during 2018 required careful tuning to prevent structural fatigue.
Gain Scaling and Response Velocity
Adjusting the proportional band determines how wide the reaction zone stretches across your operational spectrum. Yet, push that gain too high, and your actuator will wear out prematurely due to constant micro-corrections. (Experts disagree on the exact threshold where mechanical wear outweighs control precision.) That is why engineers often blend proportional action with secondary dampening forces.
The Trap of Steady-State Error
Why does the system always settle just short of the target? Because gravity, friction, and load disturbances constantly push back against the actuator. Without another mathematical term to accumulate past mistakes, the proportional response hits a wall of equilibrium where the corrective force equals the opposing load, leaving a frustrating little gap.
Unlocking the Power of Integral Action to Eliminate Permanent Offset
The integral term sums up the error over a period of time, meaning even a tiny residual discrepancy will slowly build up a massive corrective push. In short, integral action refuses to let the system rest until the cumulative error hits absolute zero. Process integration acts like a persistent supervisor remembering every single past mistake. If a heating vat in a Munich brewery drifts by just 0.5 degrees Celsius for 20 minutes, the integral term steps in and forces the valve open further.
Windup Phenomenon and Anti-Windup Safeguards
What happens when an actuator hits its physical limit, like a control valve stuck wide open at 100 percent capacity, but the error keeps growing? The integral term keeps accumulating phantom error in the background, leading to massive overshoot once the physical constraint lifts. Modern controllers use anti-windup algorithms to freeze the integrator and prevent this dangerous buildup. Integral saturation remains one of the most common pitfalls encountered by junior commissioning engineers.
Time Constants and Reset Rates
Manufacturers express integral action either as reset time in seconds per repeat or as inverse gain. If your reset time is set too fast, the system oscillates violently back and forth across the setpoint like a pendulum. Finding the sweet spot requires patience and a solid understanding of the plant's natural time constant.
Comparing PID Against Bang-Bang Control and Advanced Neural Networks
Before PID loops dominated industrial landscapes, simple on-off thermostats—known as bang-bang controllers—ruled domestic heating and primitive refrigeration units. But bang-bang control creates constant thermal cycling, switching between 0 percent and 100 percent power incessantly. Adaptive tuning strategies now compete with PID by using artificial intelligence to adjust gains dynamically in real time. Yet, despite decades of innovation, over 90 percent of industrial control loops still rely on traditional PID because of its reliability and straightforward diagnostic transparency.
Limitations of Traditional PID in Non-Linear Environments
When dealing with highly unpredictable processes—such as supersonic combustion chambers or complex biochemical fermenters—standard linear PID struggles to maintain stability. That is where model predictive control steps in, forecasting future behavior over a rolling time horizon. But model predictive algorithms require immense computational power, whereas a standard PID loop runs effortlessly on an inexpensive microcontroller costing less than $5.
Common mistakes and misconceptions about PID controllers
Over-relying on Derivative action
Engineers often see the Derivative term as a magical cure for overshoot, but this belief backfires in real-world systems with noisy measurement sensors. Derivative action amplifies high-frequency noise violently, shaking control valves to pieces or scorching heating elements through rapid power cycling. If your temperature sensor fluctuates by just 0.5 degrees every few milliseconds, a derivative weight of 10 forces the actuator to react aggressively to phantom changes. The fix isn't to crank up D; it's to apply a low-pass filter to the input or ditch derivative action entirely when noise dominates.
Ignoring actuator saturation and integral windup
What happens when your control signal demands 150% power from a heater that caps out at 100%? The physical system hits a hard wall, yet the integral term keeps accumulating error, building up massive mathematical steam inside the loop. When the process finally reaches the setpoint, that accumulated energy must bleed off, forcing a massive, dangerous overshoot that lasts for minutes. Anti-windup mechanisms are not optional in practical applications, yet countless novice designers forget to limit the integral sum, resulting in runaway loops during startup conditions.
Applying PID where advanced control is required
Let's be clear: PID loops assume your system is linear, predictable, and mostly time-invariant. But if your process includes massive dead times—like pumping fluid down a 500-meter pipe—a standard feedback loop will hunt and oscillate endlessly, no matter how meticulously you adjust the gains. Trying to force a single loop onto a system with multivariable interactions or variable delay times is a fool's errand. In those scenarios, you need feedforward architecture or Model Predictive Control, not a higher proportional gain.
Advanced tuning techniques and expert strategies
Why gain scheduling outperforms fixed parameters
A single set of parameters rarely works across an entire operational spectrum because physical dynamics shift as conditions change. Consider an industrial chemical reactor: heating cold liquid at ambient temperature requires aggressive control, but maintaining 180°C near an exothermic reaction demands extreme gentle restraint. Gain scheduling dynamically adjusts PID parameters based on current operating conditions, effectively switching between different controller profiles as the system transitions through predefined zones.
You can implement this by mapping proportional gain $K_p$ to process variables using simple piecewise functions or continuous interpolation routines. For example, setting $K_p = 4.2$ during ramp-up and dropping to $K_p = 1.8$ near steady-state reduces settling time by up to 40% while eliminating structural stress. The problem is that many operators view gain scheduling as overly complex, opting instead for sluggish compromises that underperform across every metric. Don't fall into that trap (and yes, tuning three distinct parameter sets takes extra time, but the efficiency gains speak for themselves).
Frequently Asked Questions
How do you tune a PID loop without dynamic modeling software?
The Ziegler-Nichols open-loop step response method offers a simple empirical approach requiring only basic step testing data. You apply a 10% step change to the manual output, record the dead time $L$ and process time constant $T$, then calculate baseline parameters directly. For a standard loop with $L = 2.5$ seconds and $T = 12$ seconds, setting $K_p = 5.76$ and integral time $T_i = 5.0$ yields a solid starting baseline. Which explains why this manual technique, developed back in 1942, remains the go-to field method for standard loop commissioning across process industries worldwide.
When should you use a PI controller instead of a full PID algorithm?
You should drop the Derivative component entirely whenever loop measurements exhibit high noise levels or when process dead time is practically zero. Liquid flow control loops and pressure regulation systems react within milliseconds, meaning high derivative gains cause extreme actuator chatter without offering any stability benefits. In fact, roughly 75% of industrial control loops run successfully as pure PI systems because high-frequency disturbance rejection matters far more than predictive velocity calculations. As a result: eliminating the derivative parameter simplifies maintenance, speeds up commissioning, and prevents unnecessary mechanical wear on final control elements.
Why does auto-tuning sometimes fail in industrial environments?
Auto-tuning algorithms typically inject tiny relay oscillations or step inputs into the loop to estimate ultimate gain, but environmental disturbances ruin these measurements. If an industrial boiler experiences random ambient temperature shifts during the test phase, the auto-tuner mistakes background noise for process dynamics, producing ridiculously aggressive gains. Tests show that fully automated tuning routines miscalculate parameters in up to 30% of non-linear installations, leading to immediate loop instability upon switching back to closed-loop mode. The issue remains that automated tools provide a mathematical guess, not a guaranteed solution, requiring human oversight to verify calculated gains before full deployment.
A definitive stance on modern loop control
Despite the rise of neural networks and complex model-predictive algorithms, the modest PID algorithm remains the undisputed workhorse of industrial automation for good reason. Its strength lies in its conceptual simplicity, providing exceptional stability across millions of chemical, manufacturing, and aerospace operations. Yet, the real magic of PID control lies in human intuition during parameter selection rather than purely automated calculations. Blindly trusting auto-tuners or sticking to default factory gains guarantees inefficient energy consumption and excessive hardware wear. Master the trade-offs between speed and stability yourself, respect the physical limits of your actuators, and treat tuning as an ongoing balance rather than a one-time setup task. In short, code cannot replace insight, and a properly tuned loop will always outperform a fancy algorithm running on bad parameters.
