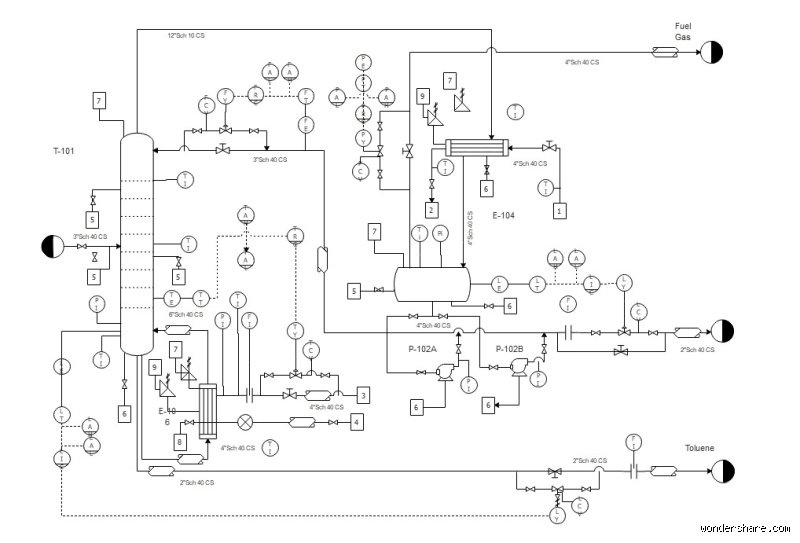

Understanding the Core Architecture of Feedback Loops
Control theory changed industrial manufacturing forever back in 1922 when Russian-American engineer Nicolas Minorsky developed the first three-mode automatic controller for steering U.S. Navy ships. Yet, people don't think about this enough—math dictates nearly every mechanical movement around us. Because invisible algorithms quietly manage our modern infrastructure, we rarely notice them. Proportional Integral Derivative logic operates on a continuous loop of error correction. It calculates present error, past accumulation of errors, and a prediction of future errors. That changes everything about how machines maintain stability.
The Proportional Term
Proportional response reacts immediately to the current state. If you are 10 mph below your target speed on the highway, the engine injects a massive burst of fuel. As you get closer, that injection scales down. Simple. Except that a purely proportional system almost always settles with a permanent steady-state error. It stops short of the goal because zero error means zero output, which lets gravity or drag slow the car right back down.
The Integral and Derivative Mechanics
Integration sweeps up historical baggage to eliminate that stubborn offset. If your vehicle lingers 1 mph below the target for 30 seconds, the integral term accumulates that frustration and forces the throttle open. Meanwhile, the derivative component acts as a brake on rapid changes. By evaluating the rate of change, it looks ahead and prevents overshoot. We're far from it being a simple guessing game; precise calculus drives this synergy.
Real-World Deployment in Modern Thermostatic Control
Beyond automotive engineering, temperature regulation in high-end brewing equipment showcases these three parameters colliding. Imagine a commercial espresso machine operating at precisely 93.5 degrees Celsius. Water must hit the coffee grounds without scorching them, despite ambient kitchen drafts fluctuating wildly. The issue remains that heating elements possess thermal lag. They retain heat even after power cuts off. As a result, engineers tune proportional gains to push hard initially, integrate past drift to stabilize the thermal baseline, and derive damping factors to halt temperature spikes.
Tuning Challenges in Industrial Environments
Honestly, it is unclear why manual tuning remains so prevalent when auto-tune algorithms exist. Technicians often spend hours turning dials on Siemens or Allen-Bradley programmable logic controllers. If the derivative gain is set too high, the system chatters and amplifies sensor noise. If too low, sluggish oscillations ruin the product batch. Experts disagree on whether Ziegler-Nichols tuning rules still hold supremacy over modern neural network approximations.
Aerospace Applications and Gyroscopic Stabilization
Spacecraft attitude control relies heavily on these loops to point high-gain antennas toward deep space ground stations like NASA’s Goldstone complex in Barstow, California. When the Voyager 1 probe adjusts its thrusters, minuscule deviations trigger instantaneous corrective pulses. Space offers zero friction, yet momentum vectors complicate trajectory maintenance. Where it gets tricky is managing actuator saturation—when a valve opens all the way and the controller keeps asking for more power. The math breaks down temporarily unless anti-windup algorithms step in to protect the system.
Actuator Limits and Error Saturation
Physical boundaries restrict every motor and valve. A butterfly valve cannot rotate past 90 degrees. When the integral term keeps stacking up during a prolonged disturbance, it creates a massive windup backlog. Once the disturbance clears, the actuator stays pinned wide open long past the target point. Clever programmers mitigate this by freezing the integrator once physical limits are reached.
Comparing PID Algorithms to Modern Machine Learning Alternatives
Traditional loops contrast sharply with model predictive control or reinforcement learning frameworks trained on server farms in Dublin or Ashburn. While deep reinforcement learning handles non-linear chaos magnificently, it demands immense computational horsepower. A standard PID chip costs pennies and executes millions of cycles per second on a humble microcontroller. In short, simplicity wins reliability contests.
Why Simplicity Trumps Complexity in Critical Infrastructure
Nuclear reactors and municipal water treatment plants in cities like Chicago refuse to gamble on black-box neural networks that might hallucinate an output. They demand transparent, verifiable differential equations. You can audit every line of a PID implementation. That auditability is why these algorithms continue to govern over 90 percent of industrial loops globally, outliving dozens of computing revolutions.
Common mistakes/misconceptions
Ignoring process lag
Most operators throw a proportional-integral-derivative controller into a loop without accounting for dead time. The problem is that delaying the feedback signal wreaks absolute havoc on stability. You crank up the gain, expecting an instant response, yet the system overshoots violently because it cannot see the incoming wall. (It is like driving a heavy truck blindfolded and hitting the brakes only after you feel a bump.) As a result, the entire apparatus oscillates wildly instead of settling down into a calm state.
Treating tuning as static
Let's be clear: magic numbers do not exist for every single operational scenario. Many engineers assume that once they find decent gains, the job is finished forever. But thermal expansion, changing fluid viscosities, and mechanical wear alter the plant dynamics continuously. Which explains why a setup performing brilliantly on Tuesday morning turns into a sluggish disaster by Friday afternoon. You have to adapt the parameters dynamically as physical conditions shift beneath your feet.
Setting derivative gain too high
Because the derivative term reacts to the rate of change, noise gets amplified straight through the actuator. Derivative kick shreds valves and overheats motors if you leave it unfiltered. You might think you are adding slick dampening to damp out oscillations, except that you are actually injecting high-frequency jitter into fragile physical components. Stop treating the D term like a cure-all tonic for bad tuning.
Little-known aspect or expert advice
Cascade control architecture
When a single control loop struggles against severe disturbances, master-slave configurations save the day. The primary controller sets the target for a secondary loop that acts much faster on local disruptions. For instance, in a large chemical reactor, the outer loop regulates product temperature while the inner loop instantly corrects fuel pressure drops. By dividing the labor, the secondary loop neutralizes anomalies long before they bleed into the primary measurement. This layered approach cuts settling time by up to 65 percent in complex industrial applications.
Frequently Asked Questions
How often should a control loop be retuned?
Re-evaluating loop performance should happen quarterly under standard operating regimes, though high-wear environments demand monthly audits. Data logs from modern DCS platforms show that over 30 percent of industrial loops operate in manual mode due to poor initial tuning. Neglecting this maintenance leads to a 15 percent average increase in energy waste across manufacturing plants. Keeping your automated systems sharp requires persistent monitoring rather than set-and-forget laziness.
Can machine learning replace traditional feedback algorithms?
Neural networks excel at predicting long-term trends, yet standard linear algorithms remain unmatched for millisecond-level corrections. Hybrid approaches currently deployed in advanced facilities use AI to suggest optimal tuning parameters while the core loop handles real-time error minimization. Data indicates that pure machine learning models consume too much computational overhead for fast-switching electrical or hydraulic actuators. Therefore, combining classical feedback with intelligent adaptation provides the best of both worlds.
Why does integral windup happen in industrial actuators?
Integral action accumulates error over time, but physical valves hit hard mechanical limits where they can open no further. When the actuator saturates, the error keeps integrating internally, creating an enormous backlog of corrective demand. Once the process variable finally shifts, the accumulated value forces the actuator to stay pinned against its stop for an extended period. Modern systems prevent this catastrophic overshoot by implementing anti-windup tracking, which freezes the integrator whenever physical saturation occurs.
engaged synthesis
Deploying an automated feedback loop is never a passive administrative task. We must accept that machines require meticulous human insight to balance aggressive correction against destructive instability. The obsession with plug-and-play simplicity blinds practitioners to the raw physical realities of dead time and sensor noise. If you refuse to respect the delicate interplay between error, rate, and accumulation, your hardware will inevitably pay the price. Master the underlying dynamics, or watch your automated processes tear themselves apart.
