Decoding the core definition of industrial process control loops
People don't think about this enough, but invisible loops run our entire technological world. Back in 1911, an engineer named Elmer Sperry built one of the earliest practical autopilot systems for ships, relying on mechanical feedback long before digital chips existed. Yet, the formal mathematical theory was only published later in 1922 by Russian-American engineer Nicolas Minorsky while working on automatic steering for the U.S. Navy. The issue remains that beginners stare at schematics and freeze. We are far from it being intuitive until you break down the actual anatomy of a loop.
The Setpoint versus the Process Variable
You always start with a target, known in the trade as the setpoint. If you want your kitchen oven at exactly 350 degrees Fahrenheit, that target number is your fixed reference point. Except that reality hates perfection. External disturbances like a drafty window or a worn-out door gasket will always conspire to ruin your dinner. As a result, sensors measure the actual condition—called the process variable—and send that raw data hurtling back to the controller. The error is simply the gap between what you want and what you actually have at any given millisecond.
Actuators and the Correction Effort
Sensors are useless without muscles. The actuator is the physical device—like a gas valve, an electric heating element, or a massive hydraulic pump—that executes the commands. When the controller figures out how wrong things are, it fires a control signal straight to this actuator. Which explains why a sluggish valve ruins an otherwise brilliant control algorithm. The response has to be instantaneous, or the whole system starts oscillating wildly out of control.
The Proportional term and immediate reaction mechanics

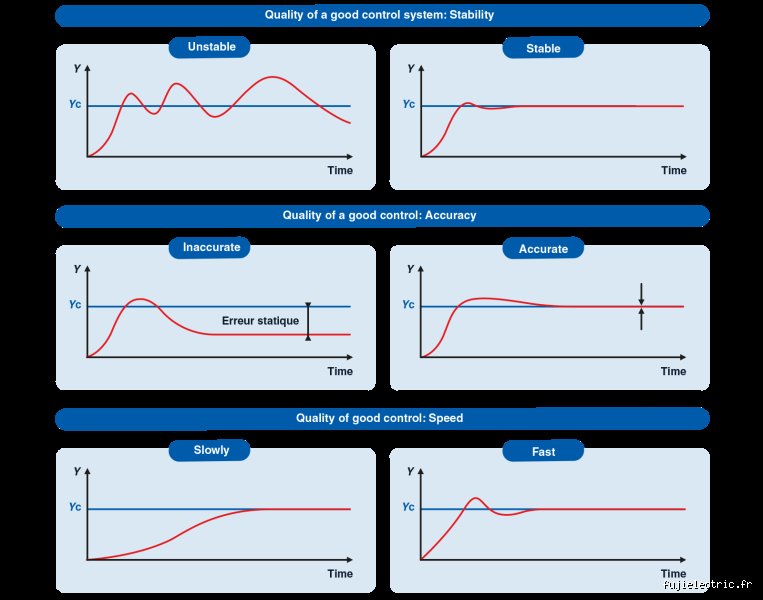

The first letter in PID stands for proportional, which is the muscle that reacts directly to the present error. If you are 50 degrees off your target temperature, the proportional term applies a massive push. If you are only 1 degree off, it gives a gentle nudge. This behavior is governed by gain, a multiplier that scales the reaction. But honestly, it's unclear why early designers thought pure proportional control would ever suffice on its own. (Spoiler alert: it never does.) Because of physics, a purely proportional system almost always suffers from permanent steady-state error, stubbornly stopping just short of the actual target like a runner out of breath.
Understanding Proportional Gain and Offset
Think about driving up a steep hill in a car with weak horsepower. You press the gas pedal down, but gravity fights back. The engine settles at a speed slightly below your speed limit target because the proportional reaction balances out the load without ever closing the final gap. This persistent gap is called offset. Engineers tweak the proportional band to minimize this, yet pushing the gain too high turns a calm machine into a vibrating nightmare that overshoots every single time.
Why Proportional Alone Fails
If you crank the proportional gain high enough to eliminate that annoying offset, the system usually starts ringing—meaning it overshoots the target, overcompensates in reverse, and oscillates violently. That instability is dangerous in real-world settings like a 1986 nuclear turbine in Chernobyl or even a simple cruise control system on Interstate 95. That exact limitation forces us to look past simple scaling and introduce memory into the equation.
Integral and derivative dynamics working together
The integral term looks backward into the past to wipe out persistent offset errors once and for all. It accumulates past errors over time, acting like a patient bookkeeper who refuses to let minor mistakes slide. If a small error lingers for ten seconds, the integral action grows larger and larger until the actuator is forced to bridge that final gap. Yet, this introduces windup risks where the accumulated error gets way too big during startup phases.
Adding the Derivative Crystal Ball
The derivative term looks forward into the future by calculating the rate of change. It asks how fast the error is growing or shrinking. If the process variable is rocketing toward the setpoint at breakneck speed, the derivative term hits the brakes early to prevent a disastrous overshoot. It is essentially electronic damping. Experts disagree on how much derivative weight to use in noisy environments, because tiny electrical spikes get multiplied by the derivative calculation and send chaotic noise straight to the actuators.
Common mistakes/misconceptions
Tuning by pure guesswork
Many beginners think you can just spin knobs on a PID controller until the machine stops shaking. The issue remains that guessing leads to thermal runaway or mechanical destruction. You change proportional gain, watch the motor scream, and panic. Because random trial wastes hours, experienced operators rely on structured heuristics like Ziegler-Nichols instead of blind luck.
Ignoring sensor noise
Another classic trap involves feeding raw, unfiltered encoder data straight into the derivative term. The problem is that micro-volt ripples get amplified into massive actuator spikes. Which explains why your valves overheat while trying to correct ghost errors that never physically existed. A low-pass filter cleans this up, yet lazy engineers skip it every time.
Treating integral windup as optional
Saturation destroys systems quietly. When an actuator hits its physical limit, the integral accumulator keeps bloating behind the scenes. As a result: the system overshoots wildly once it finally reverses direction, defying all common sense. You must implement anti-windup logic (clamping the accumulator), otherwise your process control loop turns into a runaway freight train.
Little-known aspect or expert advice
Feedforward loops save the day
Feedback reacts to past sins. Feedforward anticipates future weather. If you know a disturbance is coming—like an oven door opening—inject a corrective command before the temperature even drops. This synergy reduces tracking error by up to eighty percent in high-speed manufacturing lines. Let's be clear: pure feedback is a dinosaur approach for modern industrial automation.
Frequently Asked Questions
How often should my loop execute its calculation cycle?
Sample rate matters immensely for stability. Most standard temperature controllers run successfully at ten hertz, whereas brushless motor drives demand sampling rates exceeding twenty kilohertz. If your execution interval is too slow, the controller misses rapid phase shifts and goes unstable. Modern microcontrollers easily handle these fast loops without breaking a sweat.
Why does my output oscillate forever without settling?
Continuous oscillation usually means your proportional gain is way too high. When proportional action dominates, the system overshoots the setpoint, reverses too aggressively, and bounces back and forth indefinitely. Reducing this specific parameter or boosting derivative damping stops the endless ringing. Tuning is a delicate balance of competing forces.
Can I use this control algorithm on non-linear systems?
Standard linear equations struggle when process dynamics change drastically across operating ranges. For instance, a hydraulic valve behaves completely differently at ten percent open compared to ninety percent open. Engineers solve this by deploying gain scheduling, which swaps parameter sets dynamically based on operating conditions. (It works remarkably well.)
engaged synthesis
Control theory looks intimidating on paper, yet practical mastery comes down to respecting physical limitations over mathematical purity. The obsession with getting every gain value mathematically perfect usually blinds operators to actual mechanical realities like backlash and sensor latency. We need to stop treating these algorithms like magic spells and start treating them like mechanical translations of common sense. If your system fights you, back away from the screen and look at the physical hardware instead. Good engineering is ninety percent observation and ten percent math.
