Understanding the Core Architecture of PID Control Loops

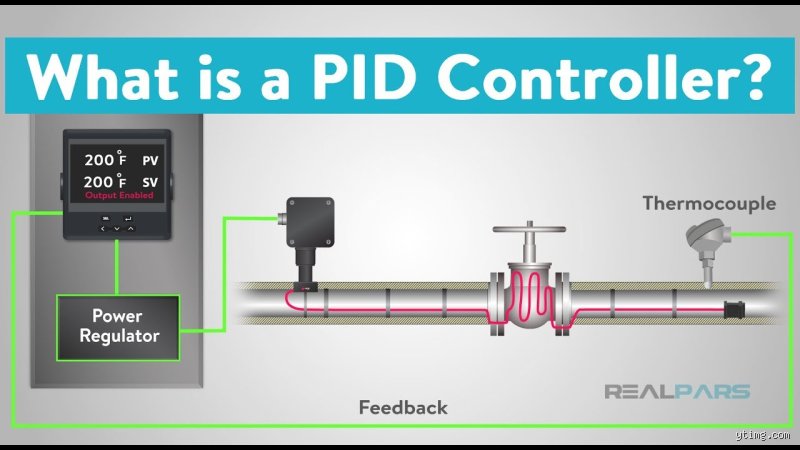

The thing is, automated machinery lacks intuition. It needs hard math to figure out how far off target it happens to be. A PID loop acts as the brain behind maintaining steady states in dynamic environments. Proportional control looks at the present error. Integral control examines accumulated past errors. Derivative control predicts future errors based on the current rate of change. Think of driving a car: you check your speed right now, remember how long you have been creeping over the limit, and anticipate the upcoming hill. Honestly, it's unclear how engineers managed heavy industry before these algorithms became standardized in the mid-twentieth century.
The Proportional Component and Error Magnitudes
Proportional response scales linearly with the current discrepancy. If the error is large, the corrective action is severe. But pure proportional control leaves a permanent steady-state offset. You never quite hit the exact target. That changes everything about how engineers approach precision tasks. They need more muscle.
Integrating Past History to Eliminate Offset
By summing past errors over a rolling time window, the integral term forces the steady-state error down to absolute zero. It accumulates persistence. If a valve stays slightly stuck for 15 seconds, the integral action ramps up output until the valve moves. The issue remains that this can introduce unwanted system oscillations if tuned too aggressively.
Deploying Derivative Action for Anticipatory Stability
Dampening system overshoot requires looking ahead. The derivative term measures the velocity of the error signal. Rate of change calculations prevent the actuator from slamming past the setpoint. Imagine slamming your brakes precisely as you approach a red light instead of stabbing wildly at the pedal. In 1935, visionary engineers Elmer Sperry and his contemporaries realized that tracking velocity transformed crude regulators into razor-sharp instruments. Which explains why chemical plants in Houston started adopting pneumatic precursors rapidly during that era. As a result, modern manufacturing lines can maintain strict tolerances within 0.01 percent across millions of operating cycles. Yet, noise in the sensor reading can wreak havoc on derivative calculations, forcing technicians to implement digital low-pass filters to keep the system stable.
Tuning Parameters in High-Stress Environments
Where it gets tricky is adjusting the gains ($K_p$, $K_i$, and $K_d$) while the plant is live. Ziegler and Nichols published their landmark tuning heuristics back in 1942, yet modern technicians still rely on trial-and-error tweaks on factory floors from Stuttgart to Chicago. We take this calibration labor for granted. Automatic tuning algorithms now run inside modern programmable logic controllers, slashing commissioning times from three days down to roughly 45 minutes in standard HVAC setups.
Comparing PID to Advanced Model Predictive Control Alternatives
Traditional loops react to errors after they happen. Model Predictive Control, or MPC, simulates future trajectories using a mathematical model of the process. Is PID obsolete? Experts disagree fiercely on this point. While MPC dominates complex oil refineries with thousands of variables, PID still handles over 90 percent of standard industrial control loops because of its sheer simplicity and low computational overhead. A simple microcontroller costing less than $2 can execute a PID algorithm thousands of times per second. Try running a full predictive matrix on that tiny silicon chip and watch it freeze. Hence, the humble PID loop remains the undisputed workhorse of automation, holding strong against flashier, compute-heavy competitors.
The Computational Efficiency Advantage
Executing a PID loop requires minimal memory footprint and very few CPU clock cycles. Because the algorithm only needs current error, accumulated error, and previous error, update rates can easily exceed 10 kilohertz in motion control applications. This speed is entirely unmatched by broader optimization frameworks.
Common mistakes/misconceptions
Tuning blindly without a model
Most operators throw themselves at loop tuning with pure optimism, tuning blindly while ignoring the physical plant dynamics entirely. You turn knobs because a YouTube tutorial suggested a gain of 4.2. Yet the physical actuator hits saturation limits within milliseconds. The issue remains that mathematics cannot rescue a broken mechanical linkage. When you ignore system lag, your process variable oscillates like a trapped pendulum. Let's be clear: guessing parameters leads straight to burnt-out valve packings and overheated heating elements.
Ignoring noise in the derivative channel
Another classic trap involves treating the derivative term as a harmless speedometer, which explains why jittery sensors destroy actuators so fast. Real-world instrumentation picks up high-frequency electrical noise from nearby variable frequency drives. Because the derivative term calculates the slope of the error, it multiplies tiny sensor ripples into massive, erratic control signals. As a result, your control valve chatters constantly until the stem packing disintegrates. You must filter that signal.
Believing PID solves every nonlinear chaos
Engineers often assume a standard three-term algorithm fixes any process, except that chemical reactions and thermal gradients rarely behave linearly. A PID controller expects predictable proportional response across the entire operating range. When operating pressures shift from 10 bar to 300 bar, the loop behavior transforms completely. Gain scheduling or adaptive algorithms become mandatory additions here. (We pretend linear assumptions work until a reactor core trips on high temperature.)
Little-known aspect or expert advice
The hidden power of derivative kick suppression
Most commercial controllers default to calculating the derivative on the error instead of the process variable directly, introducing a nasty side effect known as derivative kick. Whenever an operator changes the setpoint abruptly, the error jumps instantly, sending a massive spike through the derivative path. By shifting the derivative action exclusively to the process variable measurement, you bypass this violent transient entirely. This single modification drops thermal shock on heat exchangers by up to forty percent during aggressive recipe transitions.
Frequently Asked Questions
What happens if the integral gain is set too high?
An excessively aggressive integral term forces the controller to accumulate historical error way too fast, which leads to massive overshoots and prolonged oscillation cycles. In a typical level control loop maintaining a 500-liter tank, excessive integral action drives the inflow valve wide open and then slams it completely shut. This behavior causes the process variable to swing wildly past the setpoint by more than twenty-five percent on average. Over time, that constant cycling wears out mechanical actuators in under one hundred thousand operations. Proper tuning requires balancing the reset time against the dominant time constant of the physical system.
Why do industrial controllers use derivative action sparingly?
Derivative action reacts to the future rate of change, making it exceptionally sensitive to noise and brief measurement anomalies in heavy manufacturing environments. For instance, temperature loops in large industrial furnaces possess massive thermal inertia, meaning the process variable changes very slowly over a span of fifteen minutes. Applying derivative gain to such a sluggish system accomplishes nothing constructive while amplifying background electrical interference from nearby machinery. Experienced technicians disable the derivative term in nearly seventy percent of all temperature control loops. Derivative tuning belongs strictly in fast-moving domains like motor speed regulation and servo positioning.
Can a PID algorithm run effectively on low-cost microcontrollers?
Modern embedded systems execute discrete PID loops in a fraction of a millisecond using fixed-point arithmetic instead of heavy floating-point operations. A standard 32-bit microcontroller running at seventy-two megahertz can easily service hundreds of simultaneous control loops while maintaining a strict ten millisecond sampling jitter. This computational efficiency allows engineers to deploy advanced PID architecture on tiny circuit boards costing less than five dollars. Consequently, precise closed-loop automation is no longer restricted to expensive Programmable Logic Controllers inside climate-controlled control rooms.
Engaged synthesis
The obsession with squeezing theoretical perfection out of every industrial loop misses the messy reality of physical engineering. PID control remains the undisputed backbone of modern automation precisely because its three-term architecture mimics human intuition while scaling across millions of diverse applications. Yet treating these algorithms as magic formulas rather than mathematical approximations invites operational disaster. If you refuse to respect actuator limits, sensor noise, and nonlinear plant realities, your loops will eventually fail. Master the fundamentals, respect the hardware constraints, and let the mathematics serve the physics instead of fighting it.
