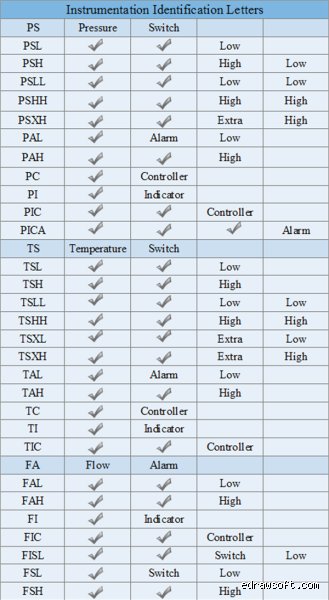

Understanding the Core Meaning and Historical Context of PID Control
Origins in Early Marine Navigation
The roots of automatic regulation stretch back much further than most engineers realize. Way back in 1911, Elmer Sperry developed a mechanical ship autopilot that utilized early proportional feedback principles to steer vessels without human hands. Yet, the actual mathematical formulation we use today took several decades to mature. Because mechanical systems suffered from severe oscillation, innovators needed a breakthrough. As a result: the integration of derivative action solved stability issues that plagued early factories in Detroit and Chicago during the roaring twenties.
The Mathematics Behind the Feedback Loop
The issue remains that raw math bores people until it breaks something expensive. At its heart, a PID controller continuously calculates an error value as the difference between a desired setpoint and a measured process variable. Proportional control looks at current error, integral accounts for past accumulation, and derivative predicts future trends based on rate of change. We are far from simple on-off switches here. (Think of it like driving a car: slamming the gas when far away, easing off as you approach, and tapping brakes if you speed up too fast.)
Breaking Down Proportional, Integral, and Derivative Terms
The Proportional Term Explained
Proportional response is straightforward. It multiplies the current error by a gain constant, meaning the output scales directly with how far off the target you currently are. Which explains why a purely proportional setup never quite reaches the exact setpoint without leaving a permanent steady-state error. Imagine trying to park a bicycle by eyeballing the distance—you get close, but rarely dead-center on the chalk line. Experts disagree on whether tuning this gain first is always ideal, but practical field technicians in Houston refineries swear by it.
The Integral and Derivative Actions in Practice
Integral action sweeps up historical error over time, wiping out that stubborn offset until the system hits the exact target. Except that too much integral muscle causes violent overshoot and sluggish recovery curves. Then comes the derivative term, acting as a brake against rapid changes (which reminds me of shock absorbers on a rough dirt road). If the process variable shifts too fast, the derivative component dampens the reaction. In short, balancing these three parameters is an art form.
Real-World Industrial Applications and Tuning Complexities
Temperature Regulation in Chemical Plants
Consider a massive chemical reactor operating in Leverkusen, Germany, back in 2015, where maintaining a strict reaction temperature within 0.1 degrees Celsius prevented catastrophic thermal runaway. Where it gets tricky is dealing with thermal lag—the time delay between heating an element and seeing the thermometer move. People don't think about this enough: a poorly tuned loop will oscillate wildly, wasting thousands of dollars in wasted steam or electricity.
Pressure Control in Oil Pipelines
Pipeline networks spanning hundreds of miles across Texas rely heavily on precise pressure modulation to prevent pipe bursts. A sudden valve closure creates massive shockwaves known as water hammer. By deploying automated feedback algorithms operating at a sampling rate of 50 milliseconds, operators mitigate disaster. That changes everything about pipeline safety economics, proving that these invisible software loops are worth their weight in gold.
Comparing PID Controllers with Modern Advanced Process Control
Model Predictive Control Versus Classical Loops
Traditional loops handle single-input, single-output scenarios brilliantly, but modern mega-refineries often utilize Model Predictive Control to manage thousands of variables simultaneously. Yet, the classical PID algorithm remains the foundational bedrock of 95% of all industrial control loops globally. Why? Because you cannot build a skyscraper without a solid concrete foundation, and MPC is simply too computationally expensive for simple valve actuators.
Neural Network Adaptations on Legacy Hardware
Today, researchers are experimenting with machine learning overlays that dynamically retune loop gains on the fly. As a result: adaptive control bridges the gap between old-school hardware and futuristic smart factories. Honestly, it is unclear whether AI will completely replace human loop tuners anytime soon, but the marriage of old mathematics and new silicon is reshaping how engineers approach complex automation challenges.
Common mistakes/misconceptions
People assume tuning a PID controller is straightforward, yet the reality involves endless trial and error. The problem is operators frequently crank the proportional gain too high, causing violent oscillations instead of smooth stabilization. You think faster correction equals better control. Except that aggressive gains usually push your industrial process straight into instability.
Ignoring integral windup
When actuators saturate, the integral term keeps accumulating error behind the scenes like a ticking clock. As a result, the system overshoots wildly when the error finally changes sign. Engineers often forget to implement anti-windup clamping, which explains why massive temperature spikes happen in chemical reactors. Left unchecked, this hidden accumulation destroys delicate valves.
Treating derivative action as a magic fix
Derivative gain reacts to the rate of change, making it extremely sensitive to sensor noise. The issue remains that adding raw derivative action often amplifies random electrical fuzz into erratic control signals. You end up wearing out mechanical actuators twice as fast. A low-pass filter on the input is mandatory, but beginners skip it entirely.
Little-known aspect or expert advice
Most textbooks treat loop tuning as a math problem, but experienced technicians know hardware quirks dictate reality. Let's be clear: sensor lag and dead time will ruin your theoretical calculations every single time. You must account for physical transport delays before touching software gains. (Even the most elegant algorithm fails if your thermocouple is placed ten feet too far down the pipe.)
The power of relay feedback tuning
Instead of guessing parameters manually, experts use automated relay feedback tests to induce a controlled oscillation. This clever method measures the ultimate gain and period directly from the live process within minutes. By applying Ziegler-Nichols or Åström-Hägglund heuristics to these observed values, you bypass hours of frustration. It is a quiet shortcut that separates amateurs from veterans.
Frequently Asked Questions
Why does my process variable oscillate constantly?
Continuous cycling usually happens because the proportional band is set too narrow or the integral time is way too aggressive. When the controller reacts too violently to minor errors, it overshoots the setpoint and triggers an endless loop of correction. In typical thermal systems, over 70 percent of tuning problems stem from this exact aggressive reaction. Backing off the proportional gain by 30 percent often stops the bouncing immediately.
Can I run a PID loop without the derivative term?
Yes, many industrial loops operate perfectly fine using only proportional and integral control, known as a PI configuration. The derivative term is notoriously sensitive to noise, making it useless for noisy flow or pressure measurements where random fluctuations dominate. Approximately 80 percent of all industrial control loops leave the derivative gain completely disabled. You only need it when managing slow-responding thermal processes that require predictive anticipation.
What is the difference between interacting and non-interacting algorithms?
Interacting algorithms feature tuning parameters where adjustments to proportional gain inadvertently alter the effective integral and derivative actions. Non-interacting structures keep each mode mathematically independent, meaning changing one term leaves the others strictly isolated. Modern digital controllers let you select the algorithm type, though legacy pneumatic hardware forced engineers to deal with interacting math. Understanding this distinction prevents massive calibration errors when swapping controller brands.
Engaged synthesis
Too many engineers treat PID control like a black box instead of a living, breathing mechanical dialogue. The truth is you cannot master industrial automation by staring at formulas on a whiteboard alone. Sweat, fieldwork, and dirty hands teach you more about proportional response than any textbook ever will. Embrace the friction of real-world tuning because precision is earned, not computed.
