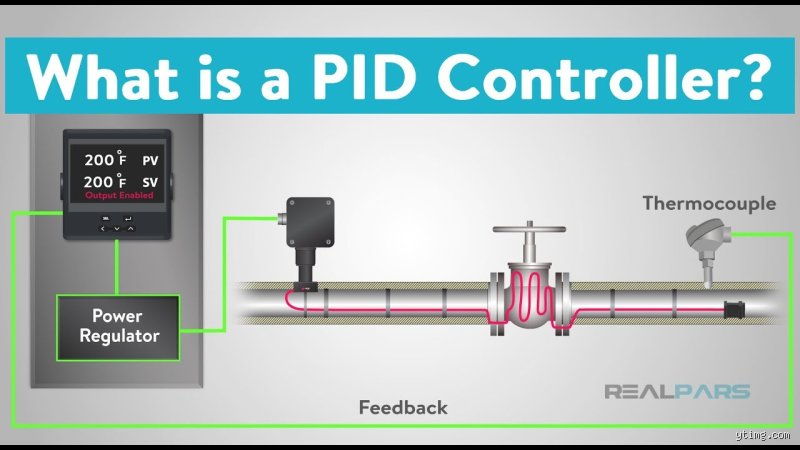

Understanding the Core Architecture of Proportional-Integral-Derivative Loops
Where it gets tricky is visualizing how three distinct mathematical functions operate simultaneously inside a single housing. I remember staring at my first control schematic back in 2012 at a chemical refinery in Rotterdam, wondering why a simple thermostat wasn't enough. The issue remains that real-world physical systems have inertia, lag, and disturbance that basic switches cannot handle.
The Proportional Term and Immediate Reaction
The proportional action multiplies the current error by a gain factor, meaning the corrective output scales directly with how far off the target you happen to be. But because of this direct proportionality, you almost always end up with a steady-state offset where the system settles just shy of the goal. That changes everything about how engineers tune these gadgets.
The Integral Component for Eliminating Steady-State Error
Because the proportional response leaves that nagging little gap, the integral term steps in to accumulate past errors over time until that leftover offset is completely wiped out. Yet, if you crank this setting too high, the system starts oscillating wildly like a car driver overcorrecting on icy asphalt.
Mathematical Foundations and Tuning Methodologies in Practice
The actual formula combines these three behaviors into a unified control signal $u(t) = K_p e(t) + K_i \int e(t)dt + K_d \frac{de(t)}{dt}$, which looks terrifying until you see it in action on an oscilloscope. In 1942, engineers John G. Ziegler and Nathaniel B. Nichols published a tuning heuristic at a Taylor Instrument company facility in Rochester, New York, that revolutionized how technicians approached these calculations. Because human intuition fails when dealing with simultaneous derivative rates, we rely heavily on such structured trial-and-error.
Derivative Action as Predictive Braking
The derivative term looks at the rate of change of the error, acting essentially as a brake to dampen sudden shocks before they throw the entire process off balance. (Honestly, it is unclear whether half the operators on factory floors actually know how to tune the D-term without causing sensor jitter.) As a result, noisy signals can turn this predictive capability into a liability.
Practical Calibration Challenges on the Factory Floor
People don't think about this enough, but ambient temperature shifts in a freezing warehouse can throw off calibration values established during a warm July afternoon. We are far from achieving truly plug-and-play autonomous loops across every legacy machine installed before 2005.
Comparing PID Control Against Modern Model Predictive Alternatives
When you pit traditional PID loops against advanced Model Predictive Control (MPC), you notice a massive jump in computational complexity and hardware overhead. MPC algorithms can manage multivariable constraints simultaneously, whereas standard PID architectures generally handle single inputs and single outputs unless you layer them into complex cascades. Which explains why oil refineries still use PID for simple pressure valves while employing heavy-duty server racks for overall distillation column optimization.
Where Classical Loops Still Outperform Advanced Software
Except that advanced software requires expensive licenses and expert data scientists to maintain, whereas a seasoned plant technician can tweak a PID loop with a screwdriver and a handheld calibrator in under ten minutes. Hence, the old-school algorithm refuses to die.
Common mistakes/misconceptions
People love twisting proportional-integral-derivative logic until things break. The issue remains that beginners crank gains to infinity expecting instantaneous miracles. As a result, systems oscillate wildly into catastrophic failure.
Over-tuning the derivative term
The problem is noise sensitivity. Sensors lie slightly. When you amplify tiny measurement glitches with heavy D-gain, actuators overheat instantly. Let's be clear: derivative action hates dirty signals.
Ignoring integral windup
Actuators hit physical walls constantly. Yet, internal integrators keep accumulating error values anyway. Which explains why systems burst past setpoints violently upon unfreezing.
Little-known aspect or expert advice
Most engineers treat loop tuning like blindfolded dart-throwing. They twist knobs randomly hoping for magic. But precise mathematical modeling saves hours of frustrating trial and error. (Ziegler-Nichols heuristics give you a decent starting baseline, except that fine adjustments require real-world intuition.)
The hidden power of filtering
Raw sensor data is trash. Low-pass filters clean up high-frequency garbage before the algorithm even sees it. In short, protecting your controller from static yields buttery-smooth trajectories.
Frequently Asked Questions
Why does my process variable overshoot the target?
Overshoot happens when your integral gain accumulates too much error during the initial ramp-up phase. For instance, in a thermal chamber heating from 20 to 100 degrees Celsius, unmanaged I-action pushes the heater past 105 degrees before reacting. Lowering the Ki parameter or introducing derivative damping usually tames this aggressive behavior. Properly balanced PID loops typically limit overshoot to under 5 percent of the total span.
Can I tune a loop without using any math?
Manual tuning by trial and error works surprisingly well for slow-moving physical systems like large industrial ovens. You simply zero out the derivative and integral terms while raising the proportional gain until sustained oscillations appear at a period of 4 seconds. From there, you calculate exact parameter reductions using established heuristic tables. Automated software tuning tools accelerate this entire workflow by running step tests in under 3 minutes.
What happens when the control output hits saturation limits?
Saturation occurs when a motor or valve reaches 100 percent capacity but the system still demands more corrective effort. During this deadlock, the controller error keeps integrating internally, creating an enormous backlog known as windup. Once the physical disturbance clears, the massive accumulated value forces the actuator to stay pinned at maximum output far too long. Modern industrial controllers fix this by freezing the accumulator whenever output clipping happens.
engaged synthesis
Control theory is not some dusty academic exercise reserved for ivory towers. It keeps commercial airplanes stable at 35,000 feet and your kitchen refrigerator at a safe temperature. Automatic control quietly shapes our entire modern technological landscape behind the scenes. We rely on these algorithms daily without ever pausing to appreciate their mathematical elegance. Master these loops, and you hold the literal keys to governing physical reality.
