The pursuit of absolute protection against high-velocity projectiles is as old as warfare itself, transitioning from crude animal hides and bronze plates to ultra-high-molecular-weight polyethylene and advanced ceramic matrices. When a bullet impacts a barrier, it unleashes an immense concentration of kinetic energy over a microscopic surface area, creating a destructive dynamic that challenges the very limits of material science. (Consider, for a moment, the sheer violence of a rifle round traveling at three times the speed of sound, carrying thousands of joules of energy into a composite target.) Engineers must therefore design systems that do not merely block the path of the incoming threat, but actively disrupt, deform, and dissipate its destructive momentum before catastrophic failure occurs. But how does a material absorb such concentrated force without shattering into a thousand lethal fragments? Because kinetic energy demands immediate dissipation across a wider geometric footprint, traditional solid metals often fail where modern composites succeed through sacrificial destruction. And this fundamental shift from rigid deflection to controlled energy absorption defines the modern era of ballistic protection.
The Science of Kinetic Dissipation
When examining how materials repel or stop bullets, one must first understand the physics of impact mechanics. A projectile delivers its payload through momentum and sectional density, pressing against atomic bonds with extreme pressure.
Material Responses Under Extreme Stress
Under extreme stress, the atomic structure of a target material undergoes radical transformation. When a high-velocity round strikes a surface, shock waves propagate radially outward from the point of contact at supersonic speeds.
Traditional steel plates rely on sheer hardness and high tensile strength to blunt the nose of a projectile, forcing it to mushroom and spread its energy across a broad area. However, heavy steel suffers from severe back-face deformation and secondary fragmentation risks, prompting modern researchers to explore advanced alternatives.
Aramid fibers, famously known by trade names like Kevlar, operate on an entirely different principle of energy transfer. These woven fabrics capture the kinetic energy of a bullet by catching the projectile in a tight web of high-tensile yarn, rapidly transferring the force laterally across thousands of individual threads.
Advanced ceramic composites take yet another approach, combining extreme hardness with low density to intentionally shatter the incoming bullet upon impact. Silicon carbide and boron carbide plates blunt and fracture the hardened core of armor-piercing rounds, turning a solid projectile into a cloud of harmless dust and fragments.
Non-Newtonian fluids and shear-thickening liquids represent the bleeding edge of flexible armor technology, hardening instantly upon receiving a high-speed impact while remaining fluid and pliable under normal movement.
Titanium and specialized aluminum alloys offer lightweight structural rigidity, though they require sophisticated heat treatments to prevent catastrophic cracking under multi-hit scenarios.
Carbon nanotube arrays and graphene lattices hint at a future where microscopic molecular bonds provide unimaginable strength-to-weight ratios, potentially rendering traditional heavy body armor obsolete.
Every single material class possesses unique trade-offs regarding weight, cost, multi-hit capability, and environmental durability, making the choice of ballistic protection a complex exercise in engineering compromise.
Beyond Aramid: Ultra-High-Molecular-Weight Polyethylene (UHMWPE)
While aramid fibers like Kevlar revolutionized personal protection in the late twentieth century, modern materials science has largely shifted toward Ultra-High-Molecular-Weight Polyethylene (UHMWPE) for high-performance ballistic applications. Commercially known by brand names such as Dyneema and Spectra, UHMWPE is a subset of thermoplastic polyethylene characterized by extremely long molecular chains—typically boasting molecular weights between two and six million atomic mass units. This exceptional chain length allows for significantly stronger intermolecular interactions and parallel alignment during fiber production, yielding a specific strength up to fifteen times greater than high-grade structural steel on a weight-for-weight basis.
The ballistic efficacy of UHMWPE lies in its unique energy-dissipation mechanism upon projectile impact. When a high-velocity round strikes a UHMWPE composite panel—typically constructed from multiple unidirectional plies laminated at alternating ninety-degree angles—the kinetic energy of the projectile is distributed rapidly across a massive lateral surface area. The high crystallinity (often exceeding eighty-five percent) and orientation of the polymer chains enable longitudinal shock waves to travel at speeds exceeding ten kilometers per second. Consequently, thousands of individual fibers engage simultaneously to decelerate the incoming threat, absorbing and converting kinetic energy into thermal energy and localized elastic deformation without suffering catastrophic brittle failure. Furthermore, UHMWPE exhibits remarkable resistance to moisture, ultraviolet radiation, and various chemical agents, making it the preferred material for advanced military helmets, hard armor plates, and marine vehicle protection where environmental degradation would otherwise compromise aramid-based systems.
Ceramic Matrix Composites: Energy Dissipation Through Controlled Fracture

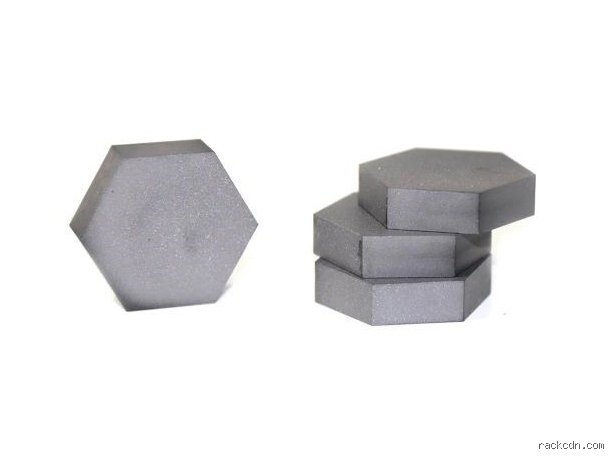

When confronting high-velocity rifle rounds—such as standard 5.56x45mm NATO or 7.62x51mm armor-piercing projectiles—polymer fibers alone are insufficient because the concentrated point load can shear the fibers before adequate energy distribution occurs. To defeat these high-energy threats, modern armor systems integrate hard ceramic strike faces backed by advanced composite backing layers. The primary ceramics utilized in aerospace and defense applications include boron carbide (), silicon carbide (), and high-purity alumina (). Each of these materials offers an extraordinary Vickers hardness rating, frequently exceeding 2,500 to 3,000 HV, which is significantly harder than the hardened steel or tungsten carbide cores of modern ammunition.
The science behind ceramic ballistic resistance is a masterclass in sacrificial material engineering. Upon impact, the extreme hardness of the ceramic strike face initiates a multi-stage destructive sequence:
Erosion and Blunting: The tip of the incoming projectile is immediately blunted, crushed, or eroded upon contact with the ceramic surface, reducing its sectional density and penetrating capability.
Shock Wave Attenuation: The ceramic material shatters the kinetic energy wave, converting the projectile's forward momentum into a localized compressive shock wave that radiates outward.
Energy Absorption: Although the ceramic tile shatters into fine powder and micro-fragments at the immediate impact zone, the fracturing process itself absorbs an enormous percentage of the total kinetic energy.
Backing Containment: The pulverized ceramic and remaining projectile fragments are caught and decelerated by the underlying aramid or UHMWPE backing layer, which absorbs the residual momentum.
Despite their unmatched stopping power against rifle fire, ceramics are inherently brittle and vulnerable to multi-hit degradation. Engineers continually refine sintering techniques and reaction-bonded composites to enhance fracture toughness while maintaining the low density required for mobile personnel and vehicular shielding.
Metallic Glasses and Amorphous Alloys: Defying Crystal Structure
Traditional metals such as titanium, aluminum, and rolled homogeneous armor steel possess crystalline atomic structures characterized by regular lattices and dislocations. When subjected to extreme ballistic stress, these dislocations can slip and migrate, leading to plastic deformation and eventual shear failure along predictable crystallographic planes. In contrast, bulk metallic glasses (BMGs)—often referred to as amorphous metals—are engineered by cooling molten multi-component metallic alloys at extremely high rates (sometimes millions of degrees per second), freezing the atoms in a disordered, liquid-like state.
This lack of long-range crystalline order imparts extraordinary mechanical properties, including high elastic strain limits (often exceeding two percent), exceptional yield strength, and remarkable hardness. When a projectile strikes a metallic glass shield, the absence of slip planes prevents standard dislocation movement. Instead, deformation is accommodated through the formation of narrow, localized shear bands. Under high-velocity impact, certain metallic glass composites exhibit a unique self-sharpening or uniform erosion behavior depending on their alloy composition, optimizing energy absorption through controlled thermoplastic shear flow. While manufacturing thick components remains challenging due to critical casting thickness limitations, BMGs represent a promising frontier for specialized armor inserts and kinetic penetrator defense.
Shear Thickening Fluids and Non-Newtonian Innovations
Moving beyond rigid plates and high-tensile fabrics, researchers have increasingly turned to rheological engineering to develop flexible, adaptive ballistic protection systems. Shear Thickening Fluids (STFs) are non-Newtonian colloidal suspensions—typically composed of sub-micron silica particles suspended in a liquid carrier such as polyethylene glycol. Under normal handling conditions, STFs behave as low-viscosity fluids, allowing lightweight fabrics treated with the fluid to remain pliable, breathable, and comfortable for the wearer.
However, when subjected to a sudden, high-rate shear stress—such as the impact of a high-velocity projectile or shrapnel fragment—the suspended silica particles instantly agglomerate into transient clusters known as hydroclusters. This rapid transition increases the apparent viscosity of the fluid by several orders of magnitude within milliseconds, effectively transforming the liquid-impregnated fabric into a rigid, energy-absorbing barrier. When integrated into multi-ply aramid vests, STFs significantly enhance puncture resistance and reduce back-face deformation (blunt trauma) while allowing the garment to maintain a low profile and high flexibility during routine movement.
Biomimetic Engineering: Learning from Nature’s Armor
Nature has spent millions of years perfecting impact-resistant structures through evolutionary pressure, providing modern materials scientists with profound blueprints for ballistic defense. One of the most prominent examples of biomimetic armor design is derived from the microstructure of nacre, commonly known as mother-of-pearl. Nacre consists of microscopic aragonite platelets arranged in a brick-and-mortar configuration, bound together by a compliant biopolymer matrix. Despite being composed primarily of calcium carbonate—a brittle material in pure geological form—nacre exhibits a fracture toughness roughly three thousand times greater than that of its constituent minerals.
When an impact occurs in a nacre-inspired composite, the energy is dissipated through an intricate cascade of micro-mechanisms:
Platelet Sliding: Individual mineral tablets slide past one another without fracturing the bulk material.
Crack Deflection: Micro-cracks are forced to travel a tortuous, winding path around the platelets, consuming substantial energy.
Viscoelastic Deformation: The organic polymer matrix stretches and deforms, bridging microscopic gaps and maintaining structural cohesion.
By replicating these hierarchical, multi-scale architectures using advanced ceramics, polymers, and synthetic nacre analogs, researchers are designing next-generation armor systems that defy the traditional trade-off between hardness and toughness, offering unprecedented protection against complex multi-hit ballistic threats.
The Future Horizon: Carbon Nanotubes and Graphene Lattices
Looking toward the ultimate limits of materials science, researchers are investigating atomic-scale lattices constructed from carbon allotropes, specifically multi-walled carbon nanotubes (CNTs) and chemical vapor-deposited graphene sheets. Graphene, a single layer of carbon atoms arranged in a two-dimensional honeycomb lattice, boasts a theoretical tensile strength of approximately 130 gigapascals and a Young's modulus of 1 terapascal, making it the strongest material ever tested.
When synthesized into macroscopic aligned yarns or three-dimensional cellular sponges, carbon nanotube networks demonstrate extraordinary ballistic impact absorption capabilities. Studies indicate that hyper-velocity projectiles striking high-purity CNT films can induce localized structural densification and diamond-like carbon phase transitions at the microscopic scale, effectively transforming incoming kinetic energy into molecular reorganization. While scalable manufacturing of defect-free macro-scale graphene and carbon nanotube armor remains an active engineering hurdle, these nanomaterials represent the ultimate horizon in the quest for ultra-lightweight, impenetrable ballistic defense.
