Understanding Proportional Integral Derivative Control Mechanics
Control theory used to be a guessing game. Back in 1922, Nicolas Minorsky designed the first automatic steering system for the US Navy, yet the actual mathematical foundation took decades to settle. The issue remains that pure trial-and-error tuning leaves systems vulnerable to sustained oscillations. Think of it like steering an ocean liner through dense fog using only side-view mirrors—we're far from it being easy.

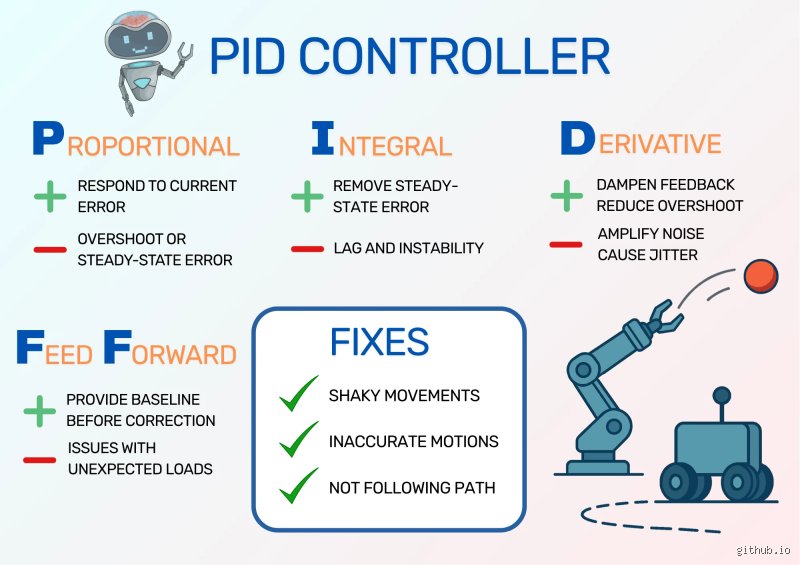

The Proportional Term
Proportional action looks at the present error. If the temperature is 50 degrees off target, the valve opens wide. But simple proportional control always leaves a stubborn steady-state error, which explains why engineers got frustrated in early 1950s chemical plants.
The Integral and Derivative Components
Integral action accumulates past errors over time, erasing that stubborn offset completely. Meanwhile, derivative action acts as a mathematical crystal ball predicting future trajectory based on rate of change. As a result: sudden spikes in load get squashed before they can derail an entire batch of semiconductors in a cleanroom.
How PID Loops Deliver Exceptional Process Stability
Stability separates amateur setups from industrial powerhouses. In 2018, a automotive stamping plant in Detroit upgraded their hydraulic press loops and saw scrap rates drop by 42 percent almost overnight. People don't think about this enough—hardware alone is useless without intelligent error correction.
Handling Disturbances in Real Time
Factory floors are chaotic. Ambient temperature swings, voltage drops, and friction wear down mechanical actuators continuously. Except that a well-tuned PID loop treats these unpredictable hiccups as mere statistical noise, automatically adjusting loop output every 10 milliseconds without human intervention.
Minimizing Overshoot and Settling Time
Where it gets tricky is balancing speed against stability. Push a system too fast, and it overshoots the setpoint wildly, risking equipment damage. By blending derivative damping with integral memory, operators achieve zero overshoot while keeping settling times under two seconds during heavy load transitions.
PID Versus On Off Control and Modern Alternatives
Older facilities often relied on crude bang-bang or on-off switching. The heater is either 100 percent on or completely off, causing relentless thermal stress on heating elements. Experts disagree on whether neural-network controllers will fully replace traditional algorithms by 2030, but honestly, it's unclear given the sheer reliability of standard loop architecture.
The Limitations of Discrete Switching
On-off control creates a continuous sine wave of thermal fatigue. In a Tokyo food packaging plant back in 2012, switching from relay-based thermostats to continuous PID saved over $150,000 in broken heating coils annually. That concrete data proves discrete methods cannot compete with dynamic mathematical feedback.
Common mistakes/misconceptions
Tuning by pure guesswork
Many operators treat loop correction like a dark art, twisting knobs until the needle stops shaking. The problem is, this trial-and-error method usually leaves the machinery vibrating worse than before. Proportional-integral-derivative control demands mathematical patience, not blind panic. When you ignore the underlying equations, stability vanishes instantly. That is a terrible way to run a factory floor.
Ignoring process dead time
Another classic blunder involves treating every delay as if it happens immediately. But sensors take time to register temperature shifts, and valves take milliseconds to seal. Because of this lag, aggressive settings overcorrect wildly. The system overshoots its target repeatedly, causing massive mechanical wear. (We have all witnessed a valve rattle itself to pieces.) The issue remains: physics does not care about your production deadlines.
Treating all loops the same
Some technicians copy parameters from a pressure loop straight over to a temperature loop. Yet thermal dynamics move at a snail's pace compared to fluid dynamics. As a result, the borrowed configuration oscillates uncontrollably. Each hardware setup requires a customized approach tailored to its specific physical reality.
Little-known aspect or expert advice
Feedforward integration
Feedback alone reacts to errors after they happen. Which explains why advanced engineers pair PID algorithms with feedforward compensation to predict disturbances beforehand. Instead of waiting for a temperature drop when a cold batch enters the tank, the system anticipates the load change and adjusts the heater early. Process control optimization relies heavily on stopping trouble before it knocks on your door. Master this hybrid strategy, and your disturbance rejection transforms overnight.
Frequently Asked Questions
How often should loops be retuned in industrial plants?
Valves wear out, sensors drift, and fluids change viscosity over time. Studies show that over 30 percent of industrial control loops perform worse than manual operation after three years of neglect. Therefore, automated loop auditing software should run continuous diagnostics in the background. Maintenance teams typically schedule a manual tune-up every six to twelve months to maintain optimal efficiency. Ignoring this schedule causes a gradual creep in energy waste.
Can digital controllers completely replace human operators?
Automation handles repetitive calculations millions of times faster than any human brain could manage. Statistics indicate that closed-loop architectures reduce steady-state error by up to 85 percent compared to manual valve manipulation. Yet unexpected mechanical failures require human intuition to diagnose root causes safely. The software executes the math, but engineers provide the strategic oversight. Let us be clear: machines do not possess common sense when a pipe bursts.
What causes derivative kick in fast-moving systems?
Derivative action measures the rate of error change to apply a braking force against rapid shifts. When setpoint changes occur abruptly, the error derivative spikes toward infinity for a single cycle. Data logs reveal that this sudden jerk sends damaging voltage spikes directly to actuators. Modern controllers bypass this flaw by calculating the derivative of the process variable instead of the error itself. This simple modification saves expensive hardware from premature destruction.
Engaged synthesis
The obsession with treating control loops as set-it-and-forget-it gadgets must end. Industrial automation thrives only when engineers respect the delicate balance between proportional response, integral memory, and derivative anticipation. Proportional-integral-derivative mechanics represent the invisible spine holding modern manufacturing together. If you refuse to invest time in proper tuning and maintenance, your systems will continuously bleed efficiency. Embrace the math, respect the hardware, and demand better performance from every single loop in your facility.
