In the realm of thermodynamics, refrigeration, and industrial process engineering, few components are as critical—or as intricately designed—as the evaporator. Whether operating within a massive commercial chilling plant, a residential heat pump, or a complex chemical processing facility, the evaporator serves as the thermal anchor where heat is absorbed from a targeted medium and transferred into a working fluid.
Understanding the main components of an evaporator requires moving beyond a simple surface-level overview and diving deep into the metallurgy, fluid dynamics, and thermodynamic principles that govern their operation. In this comprehensive first part of our expert series, we will dissect the foundational principles of evaporation systems and analyze the primary mechanical and structural components that make efficient thermal exchange possible.
1. Fundamental Principles of Operation
Before examining individual hardware components, it is essential to establish the operational context in which an evaporator functions. Within a standard vapor-compression refrigeration cycle, the evaporator operates at a lower pressure and temperature than the conditioned space or process fluid it is designed to cool.
Phase Change and Latent Heat: The primary function of an evaporator is not merely to change the temperature of a fluid, but to facilitate a phase change. Liquid refrigerant enters the evaporator and absorbs the latent heat of vaporization from the surrounding environment, transforming from a low-pressure liquid-vapor mixture into a superheated or saturated vapor.
Thermal Driving Force: Heat transfer is driven by the temperature differential () between the medium being cooled (air, water, or process liquid) and the boiling refrigerant inside the tubes. Maximizing this driving force while maintaining optimal system pressures dictates every aspect of evaporator component design.
2. The Primary Components: An Architectural Breakdown
An evaporator is not a monolithic block; rather, it is a sophisticated assembly of specialized mechanical elements engineered to withstand high working pressures, resist corrosive environments, and maximize surface-area-to-volume ratios. Below, we examine the first set of critical components that form the backbone of any high-performance evaporator.
A. The Heat Transfer Tubing and Coil Matrix
At the very heart of any evaporator lies the tubing matrix. This is the primary physical boundary separating the working fluid (refrigerant or secondary coolant) from the substance being cooled.
Material Selection: Tubing materials are selected based on thermal conductivity, chemical compatibility with the refrigerant, and mechanical strength. Copper is the gold standard for air-conditioning and refrigeration coils due to its exceptional thermal conductivity and ease of fabrication. For industrial applications involving aggressive process fluids or corrosive environments, stainless steel, cupronickel, or titanium are frequently employed.
Internal Enhancement (Micro-Fin Tubing): Modern evaporators rarely use plain, smooth-bore tubing. High-efficiency evaporators utilize internally grooved or micro-finned tubing. These internal helical ridges disrupt the laminar boundary layer of the liquid refrigerant, creating turbulence that significantly enhances heat transfer coefficients while increasing the effective internal surface area.
Circuiting and Pass Arrangements: The arrangement of the tubes—how the refrigerant enters, splits, and flows through the coil—is known as circuiting. Proper circuiting ensures an even distribution of refrigerant mass flow rate across the entire heat transfer surface, preventing localized starvation or excessive pressure drops that degrade system efficiency.
B. Fin Geometries and Thermal Enhancement Surfaces

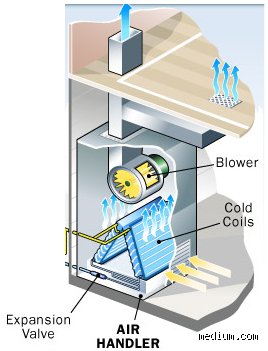

In air-to-refrigerant evaporators (such as those found in air handlers and dry coolers), the air-side heat transfer coefficient is substantially lower than the refrigerant-side coefficient. To overcome this thermal bottleneck, extended surfaces known as fins are mechanically or hydraulically bonded to the exterior of the tubing matrix.
Plate Fins: Thin aluminum or copper sheets punched with holes matching the tube array. The tubes are mechanically expanded (using a bullet expansion process) to ensure a tight, void-free thermal bond between the tube outer wall and the fin collar.
Advanced Fin Profiles: To further augment air-side turbulence and break up thermal boundary layers, manufacturers utilize specialized fin geometries:
Louvered Fins: Slits cut into the fin surface that project air streams into swirling patterns, dramatically increasing heat transfer with a minimal penalty in pressure drop.
Corrugated or Wavy Fins: Wave-like stampings that increase the effective surface area and enhance air mixing.
Spine Fins: Helically wound aluminum ribbons notched to create tiny spines, common in compact outdoor condensing and evaporating units.
Hydrophilic and Anticorrosive Coatings: To prevent moisture accumulation, condensate bridging, and microbial growth, modern evaporator fins are frequently treated with specialized epoxy or hydrophilic resin coatings that facilitate rapid condensate drainage.
C. The Refrigerant Distribution Network
For multi-circuit evaporators to perform at peak efficiency, liquid refrigerant must be fed evenly to every individual circuit. Uneven distribution leads to starving circuits (which underperform and reduce capacity) and flooding circuits (which risk sending liquid refrigerant back to the compressor).
Distributor Nozzle and Body: Located immediately downstream of the expansion valve, the distributor consists of a nozzle that atomizes the entering flash-gas/liquid mixture and a central body designed to direct the mixture equally into multiple small-diameter feeder tubes.
Feeder Tubes (Capillary or Braised Lines): Precision-length small-bore tubes that connect the distributor to individual evaporator circuits, creating a controlled pressure drop that maintains uniform feed rates regardless of circuit orientation.
Summary and Next Steps
The performance of an evaporator hinges on the seamless integration of its core structural elements—from the micro-finned internal tubing matrix to the aerodynamically optimized exterior fin geometries and precise distribution networks. Together, these components maximize heat exchange efficiency while maintaining structural integrity under demanding thermodynamic conditions.
In the upcoming second part of this expert series, we will explore the remaining structural elements, including shell-and-tube architectures, header configurations, oil management mechanisms, and advanced control interfaces.
What specific type of evaporator system—such as direct expansion (DX) air coils or flooded shell-and-tube chillers—are you currently working with or analyzing?
