Deconstructing the Core Mechanism: What Is the Triple Effect of Evaporation Anyway?
Let us look at the raw physics because people don't think about this enough. When you boil water, you pour energy into it until it turns into steam. In a standard kitchen setup, that steam drifts away into the air, taking all that precious latent heat with it. Industrial engineers look at that waste and shudder. The thing is, that vapor is still incredibly hot, packed with latent heat of vaporization—roughly 2260 kilojoules per kilogram—just waiting to be harvested.
The Cascade Principle and Pressure Drop
How do you get vapor from a boiling liquid to heat another batch of the exact same liquid? It sounds like a violation of the laws of thermodynamics, right? Here is where it gets tricky. You cannot transfer heat from a colder body to a hotter one, so the second vessel must boil at a lower temperature than the first. To achieve this trick, we manipulate the boiling point by dropping the pressure inside the subsequent vessels. Because water boils at a mere sixty degrees Celsius under a strong vacuum—a far cry from the usual one hundred degrees at atmospheric pressure—the vapor from the first stage is suddenly hot enough to drive the boiling process in the second chamber.

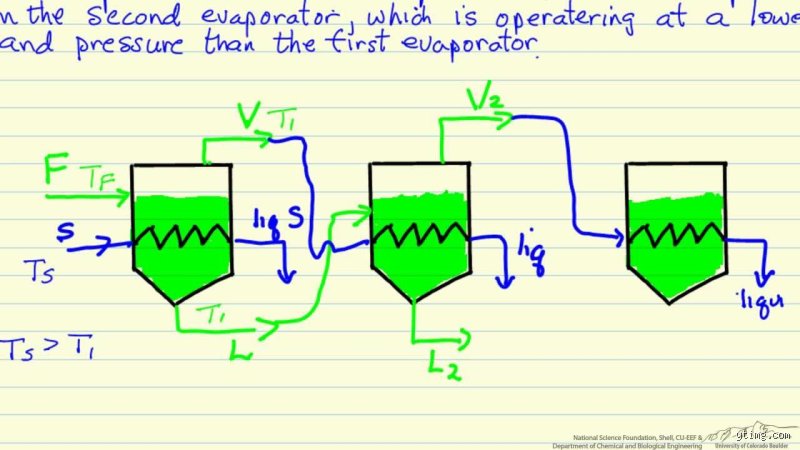

A Journey Through Three Connected Vessels
Imagine three massive stainless steel towers at a processing plant like the massive dairy cooperatives in New Zealand. Live steam from a boiler enters the heat exchanger of the first effect, boiling the raw juice or milk inside. The generated vapor does not get vented. Instead, it gets piped directly into the heating jacket of the second effect, acting as its primary fuel. The process repeats once more into the third vessel. But there is a catch that experts disagree on regarding exact efficiency thresholds. The final vapor must eventually be condensed using external cooling water, creating the deep vacuum that pulls the entire system's pressures down down down.
The Thermal Cascade: How Steam Does Triple Duty Without Adding Fuel
To really grasp how we stretch a single unit of steam, we have to look at the mass balance. In a perfect world with zero heat loss—which is an impossible dream, honestly, it's unclear if any real-world plant gets within five percent of it—one kilogram of live steam will evaporate roughly three kilograms of water across the entire system. That changes everything for operational budgets.
First Effect: The High-Pressure Catalyst
Live, high-pressure steam enters the tubes of the first stage at around 134 degrees Celsius, corresponding to a pressure of approximately three bars. The feed solution enters, collides with these blistering tubes, and starts violently flashing into steam. We are talking about massive turbulence here. The concentrated liquor settles at the bottom, while the fresh vapor is captured at the top. This first chamber is the only part of the entire apparatus that actually consumes new fuel from your boiler house, making it the expensive engine of the whole operation.
Second Effect: The Intermediate Recycling Zone
Now the magic happens. The vapor from that first stage, hovering around 120 degrees Celsius, flows into the shell side of the second effect. Meanwhile, a vacuum pump or barometric condenser has sucked the pressure inside this second chamber down to about 1.2 bars. At this pressure, the liquid inside boils at a much lower temperature. The vapor from stage one gives up its latent heat, condenses back into pure liquid water, and is drained away. Simultaneously, its heat has caused the liquor in stage two to boil, creating a second wave of vapor. And you didn't spend a single extra dime on fuel to get it.
Third Effect: The High-Vacuum Finale
The second-stage vapor now migrates to the third effect, where the pressure is kept under a deep vacuum of just 0.2 bars. Here, the liquid boils at a lukewarm sixty degrees Celsius. The incoming vapor, despite having cooled significantly during its journey, is still warm enough to provoke a final, furious boil in this highly evacuated space. What you are left with at the end is a highly concentrated product—think thick tomato paste or dense molasses—and a lot of clean condensate. We are far from the primitive boiling vats of the nineteenth century.
Feeding Configurations: Forward, Backward, and Parallel Flow Regimes
Liquid and vapor do not have to travel in the same direction, which explains why engineers spend weeks simulating flow paths before fabricating these multi-million dollar systems. The choice of direction alters everything from pump electricity usage to tube fouling rates.
Forward Feed: The Gentle Approach for Heat-Sensitive Liquids
In a forward-feed setup, both the raw liquid and the heating vapor enter the first effect together and travel in tandem toward the high-vacuum end. It is a highly logical setup because the liquid flows naturally from the high-pressure vessel to the low-pressure vessel without needing intermediate transfer pumps. As a result: electrical consumption drops significantly. Yet, there is a distinct disadvantage that plagues this setup. As the liquid concentrates, it cools down, meaning your thickest, most viscous syrup is sitting in the coldest vessel, where it sluggishly crawls through the tubes and threatens to clog the system entirely.
Backward Feed: Fighting Gravity and Viscosity
But what if we pump the cold, dilute raw liquid into the third, low-temperature effect first? This is backward feeding. The liquid is pumped against the pressure gradient, moving from the low-pressure third effect up to the high-pressure first effect. I find this approach vastly superior for highly viscous materials like heavy starches or polymer resins. The reason is simple: the most concentrated product ends up in the hottest effect, where the high temperature dramatically reduces its viscosity, allowing it to flow smoothly. The issue remains that you need heavy-duty, expensive pumps between every single stage to fight the pressure difference.
Why Single Effect Evaporators Fail the Modern Economic Test
It is tempting to think that simple is better. A single vessel is cheaper to build, easier to clean, and requires far less floor space in a factory. Except that the long-term energy economics are absolutely brutal.
The Disastrous Steam Economy of Single Vessels
In a single-effect evaporator, the steam economy—which is the ratio of kilograms of water evaporated per kilogram of steam used—is always less than one. You generally burn 1.1 kilograms of boiler steam just to vaporize one kilogram of water from your product. If a factory in Ohio is processing one hundred thousand kilograms of wastewater per hour, a single-effect system will bleed money faster than a punctured oil tanker. By upgrading to a triple effect setup, the steam economy jumps to roughly 2.5 to 2.8, meaning the plant needs less than half the steam volume to accomplish the exact same purification goal. Hence, the initial capital expenditure for the extra two vessels is usually recovered in less than eighteen months of operation.
Common mistakes and misconceptions about the multiple-stage thermal process
Equating pressure reduction with magical free energy
You might think dropping the boiling point inside subsequent vessels allows you to cheat the laws of thermodynamics. It does not. The problem is that many operators confuse thermal efficiency with an outright violation of conservation energy principles. Let's be clear: reducing the pressure merely shifts the boiling threshold down to lower thermal plateaus, which lets us reuse the latent heat of vaporization from the preceding stage. You are not creating energy out of thin air. Instead, you are systematically stretching the utility of the initial steam input across a cascading thermal gradient. If your feed liquid enters the system completely cold, the first effect wastes massive amounts of energy just doing sensible heating rather than evaporating anything. That is a costly blunder.
The myth of infinite effects for infinite savings
Why stop at three stages when you could build ten? Except that capital expenditure curves do not scale linearly, and the law of diminishing returns hits hard. Every single time you add another vessel to leverage the triple effect of evaporation, you introduce an additional temperature drop penalty across the heat exchanger surfaces. In a standard setup, a total temperature delta of 40 degrees Celsius must be carved up between all stages. Divide that by three, and each stage gets roughly 13 degrees of driving force. Try dividing that by seven, and your temperature difference per effect plummets so low that you would need astronomically large, ridiculously expensive heat exchangers to move any heat at all. The physics simply jam up.
Advanced optimization strategies and expert advice
The hidden menace of boiling point elevation
Here is something your standard textbook glosses over: the concentration of dissolved solids drastically alters the boiling chemistry. As water escapes the solution, the remaining liquor becomes increasingly concentrated, which hikes up its boiling point significantly. What explains this? It is the chemical potential of the solvent dropping. If you are processing a heavy sodium hydroxide solution, the boiling point elevation can exceed 15 degrees Celsius in the final stage. Because this elevation robs you of the effective temperature driving force, your carefully calculated vacuum pressures will fail to deliver the expected throughput. My definitive stance is that you must always design the flow configuration backward—routing the coolest feed to the highest concentration stage—if you want to combat this specific thermodynamic drag.
Frequently Asked Questions
Does the triple effect of evaporation cut down your total water usage?
Absolutely, because the system recycles the evaporated solvent vapor as the primary heating medium for the subsequent stages rather than dumping it straight into a cooling tower. In a typical industrial plant processing 50,000 liters of wastewater per hour, a single-stage system requires a massive flow of cooling water to condense the massive vapor output. By routing this vapor through three successive stages instead, the cooling water load at the final condenser is slashed by approximately 65 percent. This drastic reduction transforms the environmental footprint of the entire facility. As a result: you save thousands of cubic meters of water annually while shrinking the physical size of your external cooling utilities.
How does vacuum maintenance impact the overall stability of the system?
If your vacuum pumps fluctuate even slightly, the entire cascading balance of pressures collapses like a house of cards. The absolute pressure in the final vessel dictates the boiling temperature of the preceding vessels because the stages are pneumatically and thermally chained together. But what happens if non-condensable gases leak into the system? The heat transfer coefficient drops instantly, which causes the pressures to equalize and stops the evaporation process dead in its tracks. You must install continuous venting valves on the steam chests to bleed off these rogue gases without losing valuable steam. In short, keeping a rock-solid vacuum is the single most critical operational chore for preventing thermal stagnation.
Can this system handle highly viscous or heat-sensitive food products?
Yes, though it requires a complete shift in how you manage the internal fluid dynamics within the tubes. For delicate materials like milk or fruit juices, keeping the product at high temperatures for too long will ruin the flavor profile and destroy vital nutrients through thermal degradation. The issue remains that static boiling causes severe fouling on the hot metal walls. How do we solve this? Engineers deploy falling film configurations where the liquid film zips down the tubes at high velocities, ensuring the residence time stays under 30 seconds. (That is fast enough to save the flavor while still pulling out the water efficiently.)
A definitive perspective on multi-stage thermal processing
We need to stop viewing industrial concentration as a mere question of burning fuel to boil water. The implementation of the triple effect of evaporation concept represents a sophisticated dance of pressure manipulation and thermodynamic thrift. It proves that clever engineering can squeeze triple the amount of work out of a single pound of steam. Yet, too many facilities compromise this potential by ignoring boiling point elevation and neglecting vacuum integrity. We must move toward intelligent, automated control loops that treat the entire multi-stage array as a singular, living thermodynamic organism. Ultimately, mastering this process is not about chasing theoretical perfection; it is about respecting the rigid boundaries of physics to achieve radical industrial efficiency.
