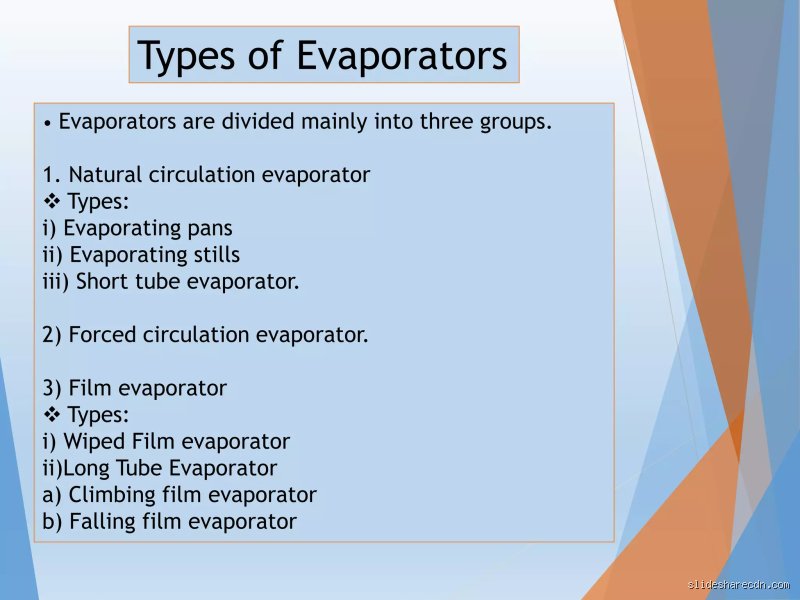

The Physics of Phase Change: Beyond Simple Boiling points
We often treat evaporation like a giant kitchen kettle, but industrial scale changes the game completely. The thing is, when you are managing a multi-effect evaporation system processing 50 tons of liquid per hour, basic thermodynamics turns into a high-stakes balancing act between heat transfer coefficients and product degradation. If you expose sensitive proteins or delicate polymers to high temperatures for too long, they cook. And nobody wants scorched dairy or ruined pharmaceuticals, which explains why residence time matters just as much as temperature control.
The Boundary Layer Nightmare
Where it gets tricky is at the tube wall. A stagnant boundary layer forms, creating a localized thermal zone where the temperature spikes significantly higher than the bulk fluid. Because this layer acts as an insulating blanket, your overall heat transfer coefficient (U-value) plummets. But if you increase the velocity, you disrupt this layer—though that demands immense pumping power. It is a classic engineering tradeoff where experts disagree on the exact optimal velocity for non-Newtonian fluids, leaving operators to rely on empirical field data rather than pristine textbook formulas.
The Falling Film Evaporator: The Champion of Thermal Sensitivity
If you are dealing with delicate, heat-sensitive liquids, the falling film evaporator is king. Picture a massive vertical shell-and-tube heat exchanger where the liquid enters at the top, gets distributed meticulously across the upper tube sheet, and flows downward as a thin, continuous film along the inner walls. Gravity does the heavy lifting here. The heating medium—usually low-pressure steam—condenses on the outside of these tubes, transferring energy to the descending film, which boils rapidly. Honestly, achieving a perfectly uniform distribution across perhaps 500 individual tubes simultaneously is an absolute nightmare, yet it remains the gold standard for fruit juices and dairy products.
[Image of falling film evaporator]The Magic of One-Pass Short Residence Times
Why do we tolerate the mechanical complexity of sophisticated distribution cones? Because the residence time inside a falling film unit is incredibly short, often clocked at a mere 15 to 30 seconds per pass. This swift transit prevents thermal degradation, preserving flavor profiles and molecular structures beautifully. But people don't think about this enough: if your feed pump falters for even a moment, the film breaks, the tubes dry out, and you face a catastrophic baking-on event that requires days of caustic chemical cleaning. That changes everything from an operational risk perspective.
Vapor Velocity and Liquid Entrainment challenges
As the liquid races downward, it continuously generates vapor, which typically flows co-currently down the center of the tube core. This co-current flow means the accelerating vapor actually drags the liquid film along, increasing its velocity and boosting the heat transfer rate. Yet, at the bottom separation chamber, the vapor must be separated cleanly from the concentrated product. If the vapor velocity exceeds 30 meters per second, it carries fine droplets up into the condenser—a costly loss known as liquid entrainment that routinely frustrates plant managers.
The Rising Film Alternative: Harnessing the Power of Vapor Lift
Now, let us flip the geometry entirely. In a rising, or climbing, film evaporator, the process fluid enters the bottom of the long vertical tubes (typically 6 to 10 meters long) and ascends. At the base, the liquid is subcooled, so heat transfer occurs via sensible heating. As boiling commences, bubbles form, coalesce rapidly, and transform into a slug flow regime. But as the volume of vapor expands exponentially, it transitions into an annular flow pattern, where a high-velocity core of vapor literally drags a thin film of liquid up the tube walls against gravity.
[Image of rising film evaporator]The Perils of Low Feed Rates
This dynamic creates excellent turbulent mixing, which keeps the tube walls clean without mechanical pumping. Except that you need a highly energetic boiling action to sustain that upward climb. What happens if your feed rate drops or the temperature fluctuates slightly? The climbing film collapses, stalls, and falls back down the tube, causing severe surging and massive pressure fluctuations that rock the entire piping system. Because of this inherent instability at low turn-down ratios, these units are rarely specified for modern grassroots plants nowadays, we're far from the era when they dominated the chemical landscape.
Comparing Circulation Mechanisms: Forced Versus Natural Dynamics
When the fluid becomes too viscous, or if it contains suspended solids that would clog a film-style unit, engineers must pivot to bulk circulation designs. The fundamental divide here lies between relying on the laws of nature or brute mechanical force. Natural circulation units utilize the density differential between the hot fluid inside the tubes and the cooler liquid in a recirculation pipe to drive movement. It is an elegant, passive system, but it falls flat the moment viscosity rises above a few hundred centipoise.
The High-Velocity Brute Force of Forced Circulation
Enter the forced circulation evaporator, a system that rejects passive physics in favor of a heavy-duty axial flow pump. Here, the liquid is pumped through the heat exchanger at high velocities—typically between 2.0 and 4.5 meters per second—under sufficient hydrostatic head to prevent any boiling inside the tubes themselves. The fluid only flashes into vapor when it enters the separation vessel, where the pressure is lower. Consequently, the tubes remain entirely flooded, preventing dry spots and suppressing crystallization on the heat transfer surfaces. It is expensive to run due to the massive electricity consumption of the pumps, but for highly fouling applications like wastewater crystallization or salt recovery, nothing else works.
Common mistakes when evaluating the four main types of evaporators
The surface area delusion
Engineers often fall into the trap of assuming that maximizing the heat transfer surface area automatically guarantees peak performance. It does not. The problem is that scaling, fouling, and boundary layer resistance frequently render half of that costly titanium or stainless steel surface completely useless within weeks of operation. If fluid velocity drops below 1.5 meters per second in a forced circulation system, you are essentially paying for an expensive, glorified pipe clog. Thermal efficiency depends far more on fluid dynamics and shear stress than raw, unbridled square footage. Why do we keep buying bigger units instead of optimizing fluid velocity?
Ignoring vapor velocity and entrainment
Another classic blunder involves treating the vapor space as a passive void. When designing or operating the four main types of evaporators, ignoring the vapor velocity limits leads to catastrophic liquid carryover. In a falling film setup, if the vapor velocity exceeds 30 meters per second, it begins ripping the thin liquid film right off the tube walls. This entrainment destroys distillate purity, dragging contaminants directly into your clean condensate stream. Let's be clear: a system is only as good as its separation efficiency, regardless of how beautifully the boiling liquid behaves at the bottom of the vessel.
Advanced hydrodynamic balancing for thermal efficiency
The critical film thickness threshold
Let us look at a little-known aspect of falling film technology that most standard manuals gloss over completely. Achieving an optimal liquid film thickness—typically between 0.5 and 1.0 millimeters—is an incredibly volatile tightrope walk. If the liquid feed rate drops slightly too low, the film breaks, causing localized dry spots where temperatures spike instantly. Conversely, if the film becomes too thick, thermal resistance skyrockets, which explains why many operators unknowingly strangle their own production rates. But maintaining this precarious hydraulic equilibrium requires precise, automated distribution plates that are notoriously difficult to clean.
Frequently Asked Questions
How does vacuum pressure affect the boiling point across different thermal separation systems?
Lowering the operating pressure directly reduces the boiling temperature of the process fluid, protecting heat-sensitive compounds from thermal degradation. For instance, operating at a deep vacuum of 0.1 bar allows water to boil at approximately 45 degrees Celsius instead of its standard atmospheric boiling point. This drastic temperature reduction dramatically decreases the log-mean temperature difference required, saving valuable steam energy. As a result: industrial facilities can utilize low-grade waste heat from other plant processes to drive the entire evaporation cycle, cutting utility costs by up to 35 percent. Yet, maintaining these strict vacuum levels requires robust multi-stage ejectors or liquid ring vacuum pumps that consume significant electrical power themselves.
Which industrial configuration handles highly viscous liquids most effectively?
Forced circulation systems stand out as the definitive choice when dealing with high-viscosity fluids or crystals suspended in liquor. Because an external pump drives the slurry through the heat exchanger at high velocities, the system easily overcomes the high shear resistance that would paralyze a natural circulation unit. The intense turbulence prevents the product from baking onto the tube walls, maintaining a stable heat transfer coefficient even as concentrations climb. The issue remains that these large circulation pumps require massive motors, often drawing over 75 kilowatts of electricity on medium-sized industrial installations. Consequently, you trade a massive power bill for the unique ability to process thick, sludge-like concentrates without constant maintenance shutdowns.
What causes thermal efficiency degradation over extended production runs?
Fouling is the primary culprit behind deteriorating performance, occurring as dissolved solids precipitate out of solution and bake onto the heat transfer surfaces. As a thin layer of calcium carbonate or silica builds up, it creates a highly resistive barrier to heat flow. A fouling layer of just 0.8 millimeters can cut your overall heat transfer efficiency in half, forcing operators to ramp up steam pressure to maintain production targets. This operational adjustment increases thermal stress on the equipment, accelerates gasket degradation, and ultimately forces a complete system shutdown for clean-in-place chemistry. In short, ignoring water chemistry or feed pre-treatment guarantees a slow, expensive decline in your daily processing capacity.
A definitive perspective on industrial evaporation technology
Selecting the ideal system from the four main types of evaporators requires abandoning the quest for a cheap, universal solution. We must accept that high-efficiency designs demand uncompromising maintenance schedules and sophisticated process control loops. Opting for a cheaper, natural-circulation variant to save on initial capital expenditure is almost always a short-sighted financial mistake. The long-term operational costs of premature fouling, excessive energy consumption, and frequent unscheduled downtime will quickly eclipse any upfront savings. True process optimization demands that you match the specific rheological behavior of your fluid to the precise hydrodynamic environment inside the tubes. Invest heavily in robust automation and advanced fluid distribution mechanics, or prepare to watch your production margins slowly evaporate into thin air.
