The Invisible Physics: Why Choosing Between Different Soil Supports Matters More Than You Think
We walk into buildings every day without looking down, completely oblivious to the silent war being waged between gravity and the dirt beneath our feet. The thing is, soil is a fickle beast that shifts, swells, and shrinks depending on moisture, historical geology, and whatever heavy truck rumbles past the front gate. If you get the sub-surface engineering wrong, the superstructure will inevitably pay the price through jammed doors, fractured drywall, or catastrophic failure. Ground conditions dictate everything.
The Nightmare of Soil Bearing Capacity
Every plot of land has a limit to what it can tolerate before it gives way completely. Geotechnical engineers measure this using specific metrics, specifically kN/m² (kilonewtons per square meter), which tells us exactly how much pressure a patch of earth can take before it deforms. In 1913, the famous Transcona Grain Elevator in Canada tilted forty-five degrees within twenty-four hours because the clay underneath was overloaded past its peak capacity. That changes everything about how we view site investigations today, proving that skipping a borehole test is pure madness.
Settlement: The Slow, Silent Killer of Modern Architecture
Buildings move. It is an uncomfortable truth for anyone who likes their walls perfectly straight, but a few millimeters of uniform sinking is totally standard. Where it gets tricky is differential settlement, a nasty phenomenon where one corner of a structure drops faster than the rest, twisting the frame until something snaps. Because different soils compress at radically different velocities—sand settles almost instantly while wet clay can take decades to stabilize—the choice of underlying support must account for these generational shifts.

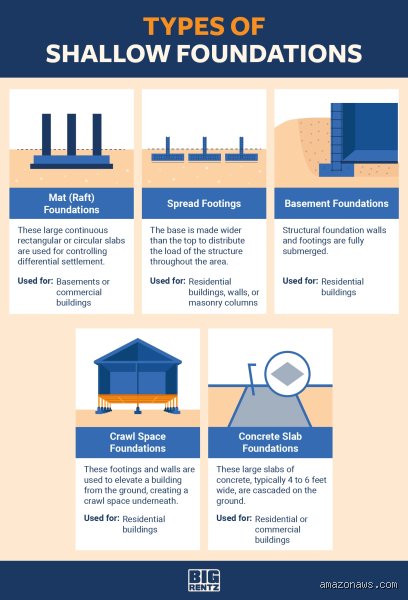

Shallow Foundations: The Cost-Effective Groundworkers for Average Builds
When the bedrock is close to the surface and your building does not weigh as much as a skyscraper, shallow variants are the absolute go-to choice for developers globally. They are relatively cheap to dig, do not require specialized heavy rigs, and use materials you can buy at any local supplier. But do not let their simplicity fool you into thinking they are foolproof; a single unexpected frost line shift can completely ruin a poorly poured slab.
Strip Footings: The Unsung Heroes of Suburban Housing Blocks
If you live in a standard two-story brick home built anytime in the last century, you are likely sitting on a strip footing. These are long, continuous bands of concrete that trace the path of load-bearing walls, spreading the weight outwards like a snowshoe. In London, during the post-war housing boom of 1946, thousands of these were dug by hand to quickly rebuild residential sectors. They work perfectly when you are dealing with consistent, low-load scenarios, except that they fail miserably if they encounter pockets of soft peat or uncompacted landfill rubbish.
Pad Foundations: Isolating the Strain Beneath the Columns
Imagine a giant concrete shoe sitting under a single steel pillar. That is a pad footing, and it is designed to take concentrated vertical forces from specific points rather than continuous walls. In industrial warehouses or commercial retail parks where massive steel frames dominate the architectural blueprint, these square blocks are strategically positioned to handle pinpoint loads of up to 500 kN or more. I have watched crews pour these in a matter of hours, yet they require precise reinforcing rebar cages to prevent the steel column from punching straight through the concrete base under high stress conditions.
Raft Foundations: Floating Your Entire Structure on a Concrete Sea
Sometimes the ground is so uniformly poor that putting down individual strips or pads would just result in a chaotic, uneven sinking match. Enter the raft, or mat foundation, which covers the entire footprint of the building like a massive, thick blanket of concrete. This distributes the total mass across the largest possible surface area, effectively lowering the pressure on any single square centimeter of dirt. They are incredibly popular in places with high water tables or expansive soils, but honestly, it is unclear why some domestic builders still overuse them on perfectly good gravel sites just because they are lazy about digging deeper trenches.
Deep Foundations: Reaching Down to Touch the Bedrock
What happens when the top ten meters of soil have the structural integrity of warm butter? You cannot just float a heavy building on that and hope for the best, which explains why we have to go deep into the earth to find something solid. Deep foundations are complex, loud, and incredibly expensive, but they are the only reason modern cities can exist in coastal areas or swampy basins.
Driven Piles: Bashing Steel and Concrete Into the Earth
This is the loud one. If you have ever lived near a major downtown construction site, you have heard the rhythmic, deafening thud of a pile driver slamming steel H-beams or precast concrete cylinders into the mud. These elements rely on two things: end-bearing capacity, where the tip of the pile physically rests on solid rock, or skin friction, where the rough sides of the pile grip the surrounding soil tightly along its entire length. In the soft alluvial soils of New Orleans, projects regularly utilize timber or steel piles driven down over 30 meters just to find enough frictional resistance to hold up a basic five-story office complex.
Bored Piles and Drilled Shafts: The Quieter, Surgical Alternative
When you cannot vibrate the neighborhood because you are working right next to a historic church or a delicate subway line, you do not drive piles; you drill them. A massive auger chews through the earth, pulling out tons of muck, and then technicians drop a steel rebar cage into the open hole before filling it with wet concrete. The sheer scale of these operations is staggering, with diameters sometimes reaching over 2.5 meters for bridge piers. Yet, if the hole collapses before the concrete is poured, the entire pile is ruined, making this a highly tense game of speed and stabilization muds like bentonite.
The Great Substructure Debate: Mat Versus Piling Efficiency
Choosing between a massive surface raft and a network of deep piles is where structural engineers earn their money, and experts disagree constantly on the exact tipping point for financial efficiency. A raft requires immense amounts of concrete and steel, creating a heavy carbon footprint right at the surface level, whereas piling minimizes material volume but demands highly specialized, incredibly expensive machinery. As a result: every project becomes a balancing act between local material costs, rig availability, and the literal clock ticking on the construction schedule. People don't think about this enough when planning commercial builds, assuming that deeper always means better, but that is far from the reality on the ground.
Common Myths and Heavy Blunders
The "More Concrete Solves Everything" Trap
Throwing extra cement at a shaky plot feels intuitive. It is also an expensive path to catastrophic structural failure. When dealing with shifting clay, simply thickening a shallow slab creates a massive, rigid sail that cracks under uneven soil swelling. Hydrostatic pressure laughs at brute force. You cannot out-pour a poor geotechnical assessment, which explains why a $15,000 deep pile system frequently outperforms a bloated, over-engineered raft that weighs down the earth. The problem is that many builders treat concrete as an insurance policy rather than a calculated engineering component.
Ignoring the Subterranean Liquid Horizon
Water moves. Soil shifts. Yet, countless residential projects proceed using generic blueprint assumptions that ignore localized water tables. Constructing a standard basement foundation in an area with a high water table transforms your home into an unintentional submarine. Except that submarines are actually waterproof. Capillary action draws moisture upward through porous concrete blocks, triggering toxic mold outbreaks and compromising steel rebars. But people still copy-paste designs from neighboring counties, hoping geology remains uniform across borders. It never does.
Confusing Soil Bearing Capacity with Thickness
Is a thicker footer always safer? No. Heavy structures resting on soft organic silt will sink regardless of whether the concrete footprint is twelve inches or three feet deep. The load must reach a competent stratum. What types of foundations are there if not various methods to bypass weak upper dirt? Relying solely on thickness ignores the actual shear strength of the underlying earth, which must be measured in pounds per square foot to mean anything substantial.
The Frost Line Paradox and Friction Piles
How Freezing Earth Destroys Shallow Footings
Let's be clear: ice expands with terrifying power. When moisture beneath a shallow perimeter wall freezes, it undergoes a 9% volume increase, generating upwards of 30,000 pounds per square inch of upward heaving force. This lift easily snaps residential framing like kindling. To counter this, local building codes mandate digging below the regional frost depth, which ranges from a mere 0 inches in southern Florida to over 72 inches across North Dakota. This design ensures the base remains anchored in thermally stable earth year-round.
Skin Friction: Holding Buildings with Pure Tightness
What happens when solid bedrock sits 150 feet below the surface? Driving end-bearing columns that deep ruins project budgets instantly. Instead, engineers rely on friction piles. These slender steel or timber shafts do not rest on solid rock; rather, they stay aloft through the sheer squeeze of the surrounding soil. (Think of trying to pull a tightly wedged stick out of packed clay). Skin friction distribution profiles dictate that every square foot of pile surface area generates resistance, meaning a cluster of twelve-inch piles driven sixty feet deep can safely support a multi-story commercial complex without ever touching true bedrock.
Frequently Asked Questions
How much does a typical residential foundation cost to pour?
Finances vary wildly based on your specific geographic coordinates and chosen architecture. For a standard 2,000-square-foot home, a basic monolithic slab costs between $8,000 and $16,000, whereas a full conditioned poured concrete basement easily climbs past $35,000. Helical pier retrofitting for failing structures adds an extra $1,200 to $3,000 per pier depending on depth. Labor overhead, local gravel metrics, and concrete delivery distance dictate 40% of these final invoices. Choosing the wrong system to save upfront cash usually doubles your expenditures within a decade due to structural remediation.
Can you build a heavy brick home on a crawl space foundation?
Yes, you can absolutely achieve this structural pairing provided the interior ledger walls and perimeter footings are engineered to transfer dead loads correctly. Brick veneer adds roughly 40 pounds per square foot of vertical pressure to the outer edges of the building framework. As a result: the perimeter footers must be widened by at least 4 inches to distribute this weight across the soil. Why risk structural sag just to save a few hours of digging? Additional block piers must be spaced precisely every six feet beneath the internal load-bearing floor joists to prevent the middle of the house from bowing over time.
How long do helical steel piers last in highly acidic environments?
Modern industrial helical piers manufactured with hot-dip galvanized coatings boast a functional lifespan extending beyond 75 years in typical ground conditions. However, soils with a pH level below 4.5 accelerate zinc sacrifice rates dramatically, reducing that protective window by nearly half. Engineers counter this subterranean chemical assault by thickening the raw steel shaft or utilizing sacrificial anodes to draw corrosion away from the structural core. Regular electrical resistance testing offers the only definitive way to monitor long-term metal degradation beneath the topsoil layer. In short, ignoring your dirt chemistry renders the strongest steel useless over time.
The Subterranean Verdict
Stop treating the earth beneath your boots as a static platform. It is a dynamic, fluid, and often hostile environment that rewards arrogance with cracked drywall and jammed doors. If you skimp on initial soil core drilling, you deserve the compounding structural bills that will inevitably follow. Selecting among different structural footings is not an aesthetic choice or a place to pinch pennies to afford better kitchen countertops. Build for the absolute worst-case historical weather and seismic data of your region, not the sunny day when the cement truck arrives. Your house is only as permanent as the invisible mud it sits upon.
