We tend to look upward when admiring architecture, marveling at towering glass facades or sweeping cantilevered roofs, yet the real magic happens entirely out of sight, buried deep within the dark, unforgiving earth. A building is essentially a massive, localized weight imposition on a planet that is constantly shifting, expanding, and contracting. Without a properly engineered base, the weight of the structure would simply crush the topsoil, causing uneven sinking, cracked walls, and eventual collapse. Historically, ancient Roman builders understood this implicitly, utilizing rammed wooden piles in soft marshland, a technique that preserved structures like the original foundations of Venice for centuries. Today, modern geotechnical engineering relies on rigorous math and sophisticated soil testing rather than guesswork, but the underlying physical principles of load-bearing distribution remain exactly the same.
The Hidden Science of Substructures and Soil Dynamics
Before exploring the specific systems, we must address the ground itself because dirt is never just dirt. Civil engineers classify soil based on grain size, moisture retention, and cohesive properties, which directly dictate how a building responds to environmental stress over time. Clay soils expand wildly when wet and shrink during droughts, creating a treacherous, moving canvas that can tear weak concrete apart. Sandy soils offer excellent drainage but can shift catastrophically under seismic loads or rapid water movement, a phenomenon known as liquefaction. The issue remains that a foundation does not merely sit on the ground; it enters into a complex, permanent structural relationship with the subterranean ecosystem. Which explains why a thorough geotechnical report, involving deep core drilling and laboratory shear testing, is the non-negotiable first step for any commercial build.
The Crucial Role of the Frost Line in Engineering
People don't think about this enough, but freezing water expands by roughly nine percent with immense physical force. If moisture beneath a concrete footing freezes, it lifts the entire structure upward in a destructive process called frost heaving. To counter this, engineers must calculate the local frost line—the maximum depth to which the ground freezes in winter—and ensure the base of the foundation sits safely below this mark. In places like Minneapolis, this means digging down over four feet, whereas in Miami, the frost line is practically non-existent, changing the economic equation of digging entirely.
Shallow Foundations: The Classic Choice for Low-Rise Buildings

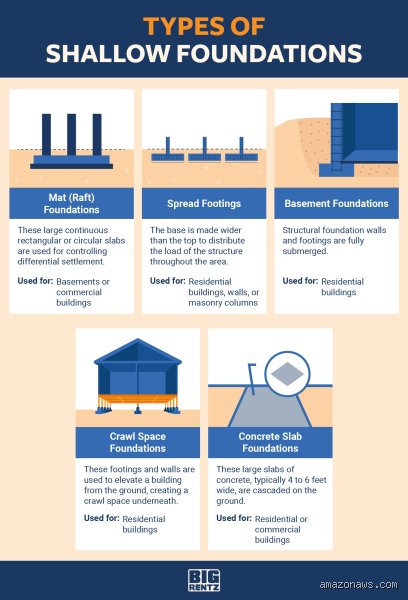

When asking what are four types of foundations, the most ubiquitous answer starts with shallow systems, often referred to as spread footings or strip foundations. These setups are typically used when the upper soil layers possess sufficient bearing capacity to support the weight of the structure without requiring deep penetration. They work by spreading the concentrated load of columns or walls over a broader horizontal surface area, effectively reducing the pressure exerted on the earth. Think of it like wearing snowshoes; the wide footprint prevents you from sinking into the soft powder. I have seen developers try to cut corners by shrinking footing widths on residential projects, and frankly, it is a recipe for cracked drywall and jammed doors within five years.
Individual Pad Footings and Continuous Strips
For standard timber-frame homes or light commercial brick buildings, contractors usually employ continuous strip footings that follow the entire perimeter of the load-bearing walls. Where columns carry heavy localized weight, individual square or rectangular concrete pads are poured instead. These elements are reinforced with heavy steel rebar grids to handle the intense tensile forces that occur when the building tries to flex. Yet, if the soil profile varies even slightly across the site, individual pads can settle at different rates, leading to differential settlement, which is the absolute nightmare of any structural engineer.
Slab-on-Grade Systems for Warmer Climates
In regions untouched by severe winter freezes, the slab-on-grade method reigns supreme due to its sheer cost-efficiency and speed of installation. This approach combines the foundation and the ground floor into a single, continuous layer of concrete, usually about four to six inches thick, poured directly over a crushed stone capillary break and a vapor barrier. The edges of the slab are thickened to twelve or eighteen inches to form an integrated perimeter footing that bears the exterior wall loads. It is a elegant, minimalist solution, except that accessing broken plumbing pipes buried beneath a solid monolith of concrete later on becomes an expensive, jackhammer-fueled nightmare.
Deep Foundations: Reaching Down for Structural Stability
Where upper soil strata consist of loose sand, soft organic muck, or expansive clay, shallow systems become completely useless, forcing engineers to utilize deep foundations. This brings us to the second major category, where the structural load must be bypassed through weak upper layers to reach competent bedrock or highly dense gravel deposits deep underground. We are far from the simple world of digging a shallow trench here; this domain requires heavy machinery, immense diesel-powered rigs, and precision acoustic monitoring. The transition from shallow to deep systems represents a massive leap in project budget and engineering complexity, turning a basic construction site into a major industrial operation.
The Mechanics of Deep Pile Driven Systems
Pile foundations are long, slender columnar elements made of precast concrete, structural steel, or heavy timber that are forced deep into the ground. These columns operate on two distinct physical principles: end-bearing capacity and skin friction. End-bearing piles act exactly like stilts, resting their bottom tips directly on a solid geological stratum like granite or dense basalt to support the building weight. Conversely, friction piles derive their load-bearing capacity from the mechanical resistance between the soil particles and the rough vertical surface of the pile along its entire embedded length. But what happens if the bedrock is hundreds of feet down? That changes everything, forcing engineers to rely entirely on the cumulative gripping power of friction across dozens of carefully spaced piles.
Drilled Shafts and Caissons for Massive Urban Loads
In major metropolitan areas where driving piles would cause destructive vibrations to neighboring historic buildings, drilled shafts—also called caissons—are the preferred alternative. A massive auger drills a deep hole, often up to ten feet in diameter, which is kept from collapsing using a temporary steel casing or a thick slurry of bentonite clay. Once the desired depth is reached, a cylindrical cage of heavy steel rebar is lowered into the shaft, and high-slump concrete is pumped in from the bottom up. This technique was used to secure London's Shard skyscraper, anchoring its immense weight into the stubborn London Clay formation with surgical precision.
Comparing Raft Foundations Against Traditional Pier Systems
Where it gets tricky is choosing between a monolithic raft foundation and a network of individual deep piers when dealing with moderately poor soil conditions. A raft foundation, sometimes called a mat foundation, covers the entire footprint of the building, essentially allowing the structure to float on a sea of soft soil like a barge on water. If one corner of the building experiences a soft spot in the dirt, the rigidity of the massive concrete mat distributes the stress across the entire footprint, preventing localized sinking. This approach was famously utilized for the historic structures of Chicago in the late nineteenth century, where a thick layer of soft blue clay made traditional footings impossible.
Economic Trade-offs and Equipment Constraints
The choice between these two approaches often comes down to logistics and regional material costs rather than pure engineering theory. Raft foundations require immense volumes of continuous concrete delivery, meaning a fleet of mixing trucks must arrive in a perfectly synchronized dance to prevent cold joints. Pier systems require specialized drilling rigs that might not be available in remote areas, driving up mobilization costs significantly. As a result: project managers must weigh the immediate material expense of a massive concrete pour against the machinery rental costs of deep drilling operations.
Common Pitfalls and Misconceptions Regarding Deep and Shallow Footings
Many builders assume that choosing a substructure is a simple binary choice between shallow concrete pads and deep piling systems. The reality is far messier. If you ignore the specific chemistry of your soil, your building will eventually pay the price.
The Myth of the "Universal" Slab
Contractors love standard concrete slabs because they are cheap and fast to pour. But let's be clear: a monolithic slab is a disaster waiting to happen on expansive clay. When the clay absorbs seasonal moisture, it swells with immense hydraulic pressure. The slab cracks. Then, during the summer droughts, the ground shrinks away, leaving your structural support hanging in mid-air. You cannot simply throw steel rebar at a bad soil profile and hope for the best. Soil plasticity indices above thirty require specialized engineering, not just a thicker layer of concrete.
Over-Engineering and Financial Waste
The problem is that the opposite approach also causes massive issues. Some architects panic and specify deep driven piles for lightweight timber structures that a simple crawl space could easily support. You do not need to spend twenty thousand dollars anchoring a standard two-story home into deep bedrock. It is pure financial waste. Except that sometimes, peer pressure from local building inspectors forces your hand anyway. Excessive structural over-design wastes valuable capital that you could have allocated to high-performance insulation or superior interior finishes instead.
Ignoring the Subsurface Water Table
Water always wins the long-term war against masonry. Homeowners often believe that waterproofing a basement foundation is a permanent, set-it-and-forget-it solution. But because hydrostatic pressure fluctuates wildly throughout the year, water will eventually find every microscopic pore in the concrete. French drains fail. Sump pumps lose power during heavy storms. If your local water table sits less than five feet below the surface, building a deep basement is an act of sheer hubris.
The Impact of Micro-Climates and Soil Chemistry
When selecting from the four types of foundations, standard engineering manuals often overlook localized environmental anomalies.
Sulfate Attack and Hidden Soil Corrosion
Have you ever considered what happens to buried concrete when it encounters aggressive soil chemistry? High concentrations of water-soluble sulfates in the earth react with the tricalcium aluminate in standard Portland cement. This chemical reaction causes the concrete to expand, spall, and ultimately disintegrate into mush over a few decades. If your site contains sulfate levels exceeding 0.20 percent, standard mixtures are useless. You must specify Type V sulfate-resistant cement, which explains why a basic soil test is non-negotiable before any excavation begins. (And yes, skipping this hundred-dollar test can destroy a million-dollar building).
Frequently Asked Questions
Frequently Asked Questions About Substructures
Which of the four types of foundations is most cost-effective for residential zones?
For most standard residential projects with stable soil, the shallow slab-on-grade represents the most economical path forward. Industry cost data from recent construction indexes shows that a standard slab averages between six and twelve dollars per square foot, whereas a full basement foundation regularly climbs above thirty-five dollars per square foot. This massive price disparity stems from the reduced excavation labor, minimal formwork, and smaller volume of concrete required. But this affordability disappears completely if the site features a slope greater than a ten percent grade because the necessary cut-and-fill earthwork quickly erases any initial savings. As a result: flat lots get slabs, while hilly terrains require conditioned crawl spaces or stepped footings.
How does frost depth influence the selection of your structural base?
Building codes strictly dictate that the bottom of any shallow architectural footing must sit securely below the local frost line. When water in the soil freezes, it expands by approximately nine percent in volume, creating an upward force known as frost heave that can easily snap heavy concrete grade beams. In northern regions where the frost depth routinely reaches a depth of six feet, pouring a shallow slab without specialized insulation is literal madness. Builders in these cold climates must utilize frost-protected shallow designs or dig deep, insulated piers to anchor the building into non-frozen earth. Yet, many amateur builders still try to skirt these regulations to save a quick buck on excavation rental equipment.
Can you repair a failing deep piling or slab system after construction?
Fixing a sinking structural base is an agonizingly expensive nightmare, but it is entirely possible through modern underpinning technologies. Hydraulic piering systems can be driven deep beneath existing concrete footings to lift the shifting structure back to its original level datum. This intense remediation process typically costs between three thousand and five thousand dollars per pier, meaning a full residential stabilization project can easily total forty thousand dollars. Engineers can also inject high-density polyurethane expanding foam beneath cracked slabs to fill voids and level the uneven floors. In short, while you can technically fix a structural failure, the financial penalty makes initial engineering precision your only logical choice.
A Definitive Stance on Structural Engineering Philosophy
We need to stop treating the choice of your building support system as a secondary aesthetic or budgetary afterthought. The earth is a living, shifting, hostile environment that actively tries to destroy whatever we place upon it. Choosing blindly from the four types of foundations without rigorous, empirical soil sampling is a gamble that no rational person should ever take. The structural engineering community must enforce stricter accountability for cutting corners on subsurface exploration. If the ground conditions are poor, you do not compromise; you adapt the engineering or you abandon the site completely. Irony dictates that we spend millions decorating rooms we can see, while starving the invisible concrete structures that actually keep the roof over our heads.
