The Hidden Mechanics Behind the Slow Evaporation Technique

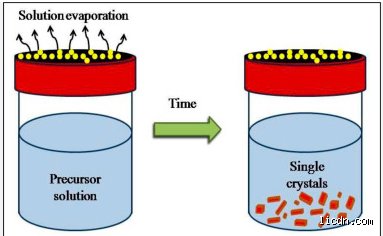

People don't think about this enough: growing a crystal is essentially an exercise in controlled chaos. When you dissolve a solute—say, glycine or a complex organometallic framework—into a liquid, you are creating a crowded microscopic dance floor. In a typical setup utilizing the slow evaporation technique, the solvent molecules gradually depart into the headspace of a partially sealed vial, which forces the remaining solute molecules closer together. That changes everything. Instead of crashing out of solution as an amorphous sludge, the atoms find their designated spots in the lattice structure with near-perfect precision.
The Delicate Balance of Supersaturation and the Metastable Zone
Where it gets tricky is managing the exact rate of driving force. Crystals refuse to grow if the solution is merely saturated; the system must push into a state known as supersaturation, specifically targeting the narrow metastable zone width (MZW). But go too far into the labile zone, and boom—you get spontaneous, uncontrolled nucleation resulting in a useless dust of microcrystals. The thing is, the evaporation rate must match the face growth rate of the crystal, which typically means losing mere microliters of solvent per hour. Honestly, it's unclear exactly how ambient pressure fluctuations alter this balance day-to-day, and experts disagree on the exact mathematical modeling, but empirical success speaks for itself.
Solvent Selection and the Role of Vapor Pressure
You cannot just pick water and hope for the best. The choice of the liquid medium dictates the entire kinetic pathway of the slow evaporation technique, given that every solvent possesses a distinct vapor pressure and boiling point. For instance, using tetrahydrofuran (THF) at 298 K will yield radically faster evaporation than using dimethylformamide (DMF), which has a much higher boiling point of 426 K. And because the solvent shell shields the solute ions, the rate at which these shells break determines how neatly the crystal lattice hooks together.
Deconstructing the Laboratory Setup: From Vials to Perforated Parafilm
Let us look at what actually happens on a benchtop in a materials science lab, perhaps at a place like the Max Planck Institute for Solid State Research. A researcher prepares a saturated solution, filters it meticulously through a 0.22-micrometer PTFE syringe filter to eliminate dust particles that act as parasitic nucleation sites, and places it in a clean glass vial. But how do we slow down the evaporation? We turn to Parafilm. By stretching a layer over the mouth of the vessel and poking precisely three tiny holes with a syringe needle—no more, no less—we create a rudimentary but highly effective mass transport barrier.
Controlling Environmental Variables and Eliminating Vibrations
But the issue remains: ambient conditions are notoriously fickle. A sudden draft from the laboratory HVAC system or the subtle tremor from a nearby centrifuge can ruin weeks of slow growth. Because of this, serious crystallographers isolate their experiments inside specialized incubator chambers maintained at a rock-solid 20.0 degrees Celsius. But even then, micro-vibrations can trigger premature nucleation. Which explains why some labs go as far as mounting their evaporation chambers on heavy optical tables with pneumatic vibration isolation—a setup that might seem like overkill until you realize a single pristine crystal can unlock a structural publication.
The Anatomy of Nucleation: Seed Crystals vs. Spontaneous Growth
Do you wait for a lucky strike, or do you engineer it? In many advanced protocols involving the slow evaporation technique, researchers deliberately introduce a single, perfect seed crystal into the slightly supersaturated matrix. This tactic completely bypasses the unpredictable primary nucleation phase. As a result: the incoming solute molecules naturally gravitate toward the pre-existing surface template, expanding the crystal uniformly without initiating new, competing clusters. It is an elegant workaround, except that mounting a microscopic seed crystal on a nylon loop without dissolving it requires the hands of a surgeon.
Thermodynamics Versus Kinetics in Crystal Engineering
It is easy to confuse a slow process with a purely thermodynamic one, but we are far from it. The slow evaporation technique operates at a fascinating intersection where kinetics—the actual speed of mass transfer—wrestles with thermodynamics, which dictates the lowest energy state of the crystal packing. If the evaporation happens too rapidly, the system traps metastable polymorphs that are kinetically favored but thermodynamically unstable. For pharmaceutical compounds like acetaminophen, discovering these diverse polymorphic forms during slow evaporation runs can mean the difference between an effective drug and a useless patent.
Why Mass Transport Limits the Growth Rate
As the solvent volume diminishes, a concentration gradient forms around the growing crystal face. Solute molecules are depleted from the immediate vicinity, creating a localized zone of lower density. This triggers natural convection currents within the vial. Yet, if the evaporation rate outpaces the diffusion coefficient of the solute—which for typical small molecules in water hovers around $10^{-5} ext{ cm}^2/ ext{s}$—the crystal faces will grow unevenly, trapping solvent inclusions inside the solid matrix and creating visible, cloudy defects.
How Slow Evaporation Compares to Liquid-Liquid Diffusion
Crystallographers love options, but choosing the right tool requires weighing distinct trade-offs. The slow evaporation technique is frequently pitted against liquid-liquid diffusion, another staple method where a layer of poor solvent is carefully floated on top of a dense solution containing the target compound. While diffusion offers unparalleled control over the interface mixing zone, it requires two completely miscible solvents with starkly different densities. The slow evaporation technique, conversely, frees you from this binary constraint; you only need one decent solvent that eventually turns into a gas. Hence, it remains the most accessible point of entry for analyzing unstudied coordination complexes.
Evaluating Throughput, Yield, and the Problem of Solvate Formation
The main drawback of evaporation is time—often requiring two to three weeks of agonizing waiting while the liquid recedes millimeter by millimeter. If you are chasing a rapid screening workflow, this method will fail you completely. Furthermore, because the solution evaporates completely or near-completely, it tends to trap all non-volatile impurities at the bottom of the container alongside your target material. In short, while you get high yields, the chemical purity of the crystal surface can be compromised compared to diffusion techniques where the mother liquor is poured off before the crystal goes dry.
Common Pitfalls and Misinterpretations in Solution Crystal Growth
The Illusion of the Sealed Container
Many novices assume that poking a single, microscopic pinhole in a plastic film covering their beaker guarantees a flawless slow evaporation technique. It does not. Thermodynamics is a brutal master. If your ambient room temperature fluctuates by more than 2 degrees Celsius, you are no longer controlling evaporation; you are creating an unpredictable thermal rollercoaster. This erratic environment triggers mass nucleation. Instead of one glorious, pristine specimen, you end up with a tragic crust of micro-crystals lining the glass. Let's be clear: isolation from drafts is far more important than the exact number of holes in your parafilm cover.
The Saturating Trap
More solute is always better, right? Wrong. Preparing a solution that is fiercely hyper-saturated at boiling temperatures is a recipe for instant failure. When using the slow evaporation technique to harvest high-quality single crystals, patience overrides brute force. A solution that is too crowded will crash out of solution the moment the temperature dips in the evening. You need a subtle, deliberate gradient where the concentration gently passes the saturation line, not a sudden, violent avalanche of molecules dropping to the bottom of the vessel.
Neglecting the Meniscus Dynamics
Why do crystals stubbornly insist on climbing the walls of your borosilicate glass beaker? The problem is capillary action combined with rapid localized desiccation at the liquid-air interface. This phenomenon, known as creeping, ruins your yield. If you ignore the surface tension and chemistry of the container walls, the solvent recedes too quickly along the edges. As a result: you get a messy ring of polycrystalline debris instead of a well-defined geometric lattice growing peacefully at the bottom.
The Hidden Leverage of the Co-Solvent Matrix
Engineering Vapor Pressure Gradients
The true masters of the solvent evaporation method rarely rely on a single liquid medium. They manipulate the chemical environment by blending miscible liquids with divergent boiling points. Consider a binary mixture of dichloromethane and hexane. The volatile component escapes at an accelerated rate, which explains the steady, highly predictable rise in supersaturation of the target compound. But what happens if the two solvents form an azeotrope? That is the exact trap you must avoid by meticulously checking vapor pressure tables before mixing your fluid matrix.
By utilizing a 50:50 mixture of ethanol and water, for instance, you can drastically alter the nucleation threshold of organic molecules. The ethanol vanishes swiftly, leaving behind an increasingly aqueous environment that coaxes the hydrophobic solute out of its liquid slumber. It is an elegant ballet of intermolecular forces. And honestly, relying solely on pure water is a sign of an amateur who refuses to experiment with solvent polarity tuning.
Frequently Asked Questions
What is the optimum evaporation rate for growing X-ray diffraction quality crystals?
Achieving a pristine specimen for X-ray analysis requires an incredibly glacial pace, typically restricting solvent loss to between 0.05 and 0.1 milliliters per day. If your setup loses a full milliliter in 24 hours, the rapid kinetic assembly will introduce crippling structural dislocations into the molecular lattice. In a controlled study using copper sulfate pentahydrate, keeping the daily volume loss under 0.08 milliliters yielded diffraction-quality single crystals with a mosaicity of less than 0.2 degrees. Conversely, hurried evaporation rates exceeding 0.5 milliliters daily resulted in fractured, unusable twins. The issue remains that haste completely destroys the long-range translational symmetry required by modern diffractometers.
Can this method be used for highly air-sensitive organometallic compounds?
Yes, but you must completely abandon the traditional open-air benchtop apparatus. You perform the slow solvent loss protocol inside a hermetically sealed glovebox pressurized with high-purity argon gas where moisture levels remain strictly below 0.1 parts per million. Instead of venting to the room, you utilize a specialized double-vessel chamber where the solvent vapor slowly diffuses into a secondary outer vial containing a non-volatile oil or a chemical desiccant. Because the atmospheric oxygen is entirely excluded, your reactive organometallic complexes can crystallize over three weeks without undergoing catastrophic oxidation. Except that any failure in your glovebox seal will instantly turn your precious catalyst into an amorphous brown sludge.
How do ambient acoustic vibrations affect the final crystal habit?
Acoustic energy and structural vibrations are the silent killers of geometric perfection during the delicate nucleation phase. When sound waves or footsteps rattle the crystallization bench, they introduce localized kinetic energy that prematurely trips the metastable zone. This unwanted energy induces secondary nucleation, meaning your single crystal stops growing because a dozen tiny competitor crystals have suddenly sparked into existence around it. To counteract this environmental noise, true experts place their crystallization chambers on heavy vibration-isolation tables or damping pads crafted from high-density neoprene. In short, a silent, motionless room is just as vital as chemical purity if you want to prevent your growing lattice from shattering into a chaotic mess.
A Final Verdict on Evaporative Crystallization
The slow evaporation technique is often dismissed by impatient researchers as an archaic, agonizingly tedious methodology. Yet, it remains an unparalleled champion in the realm of structural chemistry when perfection is non-negotiable. We must recognize that forcing molecules to assemble through rapid, violent thermal shock is an insult to the elegant laws of thermodynamics. While alternative methods like vapor diffusion offer quicker gratification, they rarely match the pristine internal symmetry achieved through a slow, unhurried concentration gradient. Do you honestly believe a rushed experiment can yield a flawless molecular map? It cannot. Embracing this technique means mastering the passage of time itself to coax chaos into absolute geometric order.
