Understanding the historical context and definition of PID control loops
The birth of feedback mechanisms
Back in 1922, an engineer named Nicolas Minorsky working at the U.S. Naval Research Laboratory built an automatic steering system for ships. He didn't use a computer. He used mechanical linkages. That changes everything about how we view control theory. Back then, sailors steered heavy rudders against unpredictable ocean currents by hand, often overshooting the mark and causing violent zig-zags. Minorsky looked at that chaos and realized a helmsman doesn't just look at where the ship is right now; they look at how fast it is drifting (derivative) and how long it has been off course (integral). The issue remains that translating human intuition into metal gears took decades of refinement.
Defining the modern control loop architecture
A control loop operates on a simple premise: compare what you want (the setpoint) with what you actually have (the process variable). The difference is the error. Proportional control acts on the present error, multiplying it by a gain factor ($K_p$). But proportional action alone leaves a permanent offset—a steady-state error where the system settles just short of the target. Enter the integral term ($K_i$), summing past errors over time to wipe out that lingering offset. Yet, adding integration introduces overshoot. So, the derivative term ($K_n$ or $K_d$) looks at the rate of change to brake the system before it overcorrects. We're far from it being trivial to tune, though; most technicians spend hours tweaking these three gains on factory floors in Detroit or Stuttgart.

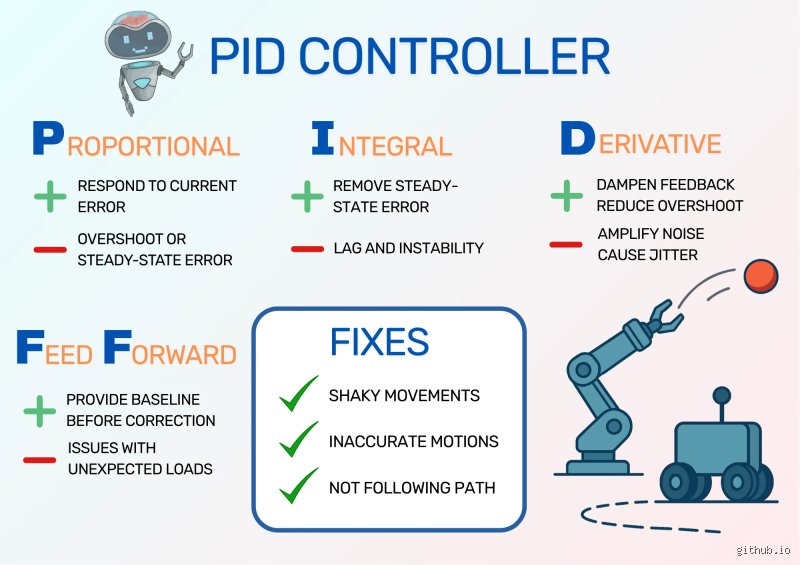

How proportional, integral, and derivative terms interact under pressure
The aggressive nature of the proportional term
Think of $K_p$ as your eagerness to fix a mistake. If your car drifts one meter left of your lane, a high proportional gain jerks the steering wheel hard. But because physical masses have momentum, that sudden jerk causes you to overshoot past the center line to the right. As a result: you start oscillating back and forth like a pendulum. Experts disagree on how aggressive a starting gain should be, and honestly, it's unclear until you test it on the actual hardware.
Accumulating history through the integral action
Because proportional control leaves a tiny gap, the integral term steps in to finish the job by accumulating past errors. If a robotic arm carrying a 2-kilogram payload sags by precisely 0.5 millimeters due to gravity, the integral component watches that tiny persistent error grow larger every millisecond until the output voltage nudges the motor upward. But this creates windup—a dangerous phenomenon where the integrator accumulates massive values during a startup delay, causing the actuator to slam violently into its physical limits.
Anticipating the future with derivative response
Derivative control acts like a shock absorber. It measures the slope of the error curve. If the error is shrinking rapidly, the derivative term pushes back against the proportional action to prevent slamming into the target. (Except that noisy sensor readings can trick the derivative calculation into amplifying jitter, which is why many real-world implementations filter the D-term heavily.)
Comparing PID against modern adaptive and neural network alternatives
Why advanced algorithms still take a backseat
People don't think about this enough: why aren't we running deep reinforcement learning inside every single valve actuator built by Emerson Electric in 2026? Because computation time matters. A standard PID loop executes in microseconds on an inexpensive microcontroller costing less than fifty cents. Neural networks require matrix multiplications, heavy power consumption, and deterministic timing guarantees that traditional plant operators simply do not trust.
Model predictive control versus traditional loops
Model Predictive Control (MPC) predicts future behavior using a mathematical model of the system, optimizing multiple steps ahead. It dominates in massive oil refineries in Houston where response times span hours. Yet, for a simple drone motor spinning at 15,000 RPM, MPC overhead is entirely overkill. The simplicity of tuning three parameters makes PID the undisputed king of local loop closure.
Common mistakes/misconceptions
Tuning by pure guesswork
The problem is that operators treat PID controllers like mystical arcade cabinets, twisting knobs blindly until the process variable stops oscillating. Yet, slamming proportional gain to the maximum invites instant system instability. Instead of systematic tracking, you get a wild rollercoaster of overshoot and thermal fatigue. We see technicians burning out actuators simply because they refuse to read the step response curve. Let's be clear: mathematics demands respect, not roulette.
Ignoring derivative noise amplification
Because high-frequency sensor jitter exists, raw derivative action turns tiny measurement ripples into massive control output spikes. Which explains why many industrial plants disable the D term entirely, reducing their sophisticated feedback loop into a clumsy PI algorithm. You must filter your feedback signal before letting the derivative gain anywhere near it. Otherwise, your control valve will chatter itself to pieces within six months.
Believing a PID solves every nonlinearity
The issue remains that engineers slap a standard PID onto highly complex chemical reactors and expect miraculous linearity. Thermal dynamics change drastically between twenty degrees Celsius and five hundred degrees Celsius, rendering static tuning gains completely useless. As a result: adaptive or gain-scheduled control architectures must replace the legacy single-loop approach for severe operating regimes. (It is almost funny how often we repeat this exact mistake.)
Little-known aspect or expert advice
Anti-windup saturation management
When an actuator hits its physical limit, the integral term keeps accumulating error silently in the background, a phenomenon known as integral windup. This hidden trap causes massive overshoot the moment the system tries to recover, sometimes delaying stabilization by up to 300 percent. To bypass this headache, you have to implement back-calculation or clamping circuits that freeze the integrator whenever the output saturates. In short, smart loop design anticipates physical boundaries before they ruin your transient response.
Frequently Asked Questions
How often should a digital PID loop execute its control algorithm?
Sampling rate matters immensely for digital discrete-time implementations. Industry best practice dictates that your loop update rate should be at least 10 to 20 times faster than the dominant time constant of the physical process. For instance, a fast motor velocity loop typically samples at 1000 hertz, whereas a sluggish industrial oven might only need a 1 hertz update rate. Selecting a frequency that is too slow introduces severe phase lag, which completely ruins stability margins.
Can a PID controller run effectively without the integral term?
Proportional-derivative control works wonderfully for pure tracking applications where a permanent steady-state error is entirely acceptable. Consider a robotic arm positioning task where a tiny offset of 0.01 millimeters does not break functionality. Yet, for pressure regulation or fluid level control, omitting the integral term leaves an uncorrectable offset under load disturbances. Removing the I term trades absolute accuracy for faster transient damping.
What is the main drawback of using derivative action in noisy environments?
Derivative gain calculates the rate of change of the error signal, meaning it reacts aggressively to sudden slopes. When a sensor outputs a signal with a noise floor fluctuation of plus or minus 2 percent, the derivative term multiplies that noise by the D gain value. This creates erratic actuator commands that consume excessive electrical power and accelerate mechanical wear. Engineers usually mitigate this issue by adding a low-pass filter specifically tailored to the derivative path.
engaged synthesis
PID algorithms remain the absolute backbone of automated motion and process control because they successfully bridge theoretical mathematics with messy physical reality. You cannot simply ignore the nuanced interplay between proportional, integral, and derivative terms without inviting systemic failure into your hardware architecture. The era of blind knob-twisting is officially over, replaced by precise identification methods and rigorous digital filtering. We must embrace these technical constraints rather than fighting them if we want truly resilient automation systems. Let's build loops that endure the test of time.
