From Lab Novelty to Industrial Workhorse: What Exactly is This Polymer?
The Dow Chemical Breakthrough and the Diaper Revolution
People don't think about this enough, but the modern world would smell significantly worse without the polymer breakthroughs of the late 1960s. It was around 1966 when researchers at Dow Chemical started messing around with cross-linked polyacrylic acid, creating a white, odorless powder that looked completely unassuming. Yet, it possessed a freakish appetite for moisture. Fast forward to 1982 in Tokyo, where Unicharm launched the first commercial superabsorbent diaper, replacing bulky fluff pulp with a thin layer of this powder. That changes everything. Suddenly, a toddler could run around without a saggy, leaking cloth mess dragging behind them, all because a few grams of powder immobilized a half-liter of fluid.
The Anatomy of a Chemical Sponge

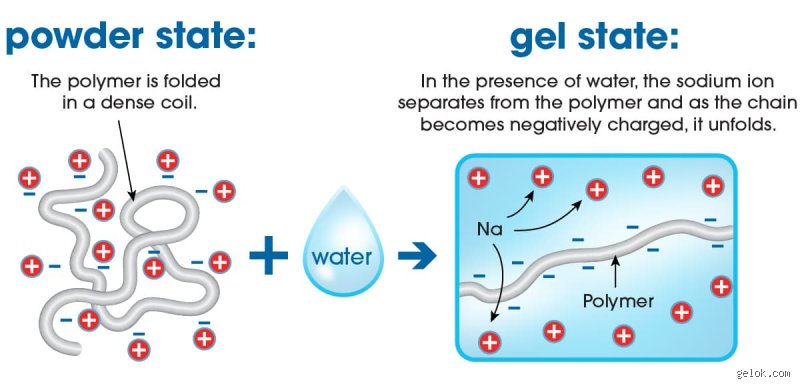

Sodium polyacrylate is essentially a long chain of acrylate compounds repeating infinitely, punctuated by sodium ions. Think of it as a tightly coiled molecular slinky. When dry, the chains sit coiled up tightly, packed into microscopic granules that resemble table salt. The magic happens because of osmotic pressure—a force so strong it practically rips water molecules out of the air. When water enters the matrix, the sodium ions want to distribute themselves evenly, forcing the polymer chains to uncoil and stretch out to accommodate the incoming rush of liquid. It is a violent, beautiful expansion that happens at the molecular level, turning a dry pile of dust into a translucent, wobbly block of gel before your eyes.
The Physics of Osmosis: Why the Type of Water Destroys the Statistics
The Distilled Water Myth vs. Tap Water Reality
Here is where it gets tricky for amateur scientists doing kitchen experiments. If you use pristine, triple-distilled water, a single gram of high-grade sodium polyacrylate will swell to a ridiculous 800 grams. But who encounters pure $H_2O$ outside of a cleanroom? Nobody. If you run the exact same test using tap water from London or Los Angeles, which is packed with calcium, magnesium, and chlorine ions, the absorption capacity plummets instantly. You are lucky if you hit a ratio of 1 to 300. The dissolved minerals shield the negative charges along the polymer backbone, meaning the chain refuses to uncoil fully. The issue remains that manufacturers love to quote the maximum lab numbers, but we're far from it in everyday applications.
The Diaper Dilemma: The Devastating Impact of Salinity
Which explains why urine is the ultimate test of this material. Human urine contains roughly 0.9 percent mineral salts, mostly sodium chloride and urea. Because of this high ionic concentration, the osmotic pressure gradient between the inside of the polymer matrix and the surrounding fluid shrinks dramatically. Consequently, inside a standard Pampers or Huggies diaper, the sodium polyacrylate absorbency drops to roughly 30 times its dry weight. That is a massive 90 percent reduction from the distilled water baseline! Honestly, it's unclear why more consumers don't realize this, but diaper engineers spend millions of dollars trying to tweak the cross-linking density just to squeeze out an extra five grams of capacity per diaper in these high-salt conditions.
The Mechanics of Cross-Linking: Finding the Balance Between Capacity and Strength
The Gel Blocking Nightmare and How to Avoid It
I have seen what happens when you use cheap, poorly engineered polymers, and it isn't pretty. If the polymer chains are too loose, the outer layer of the powder absorbs water instantly and turns into a sticky, impenetrable skin. This phenomenon is called gel blocking. The dry powder trapped inside the center of the granule gets completely cut off from the fluid, rendering it useless. To fix this, chemical companies use a process called surface cross-linking, which creates a tougher, more rigid shell on the outside of each grain. But there is a catch. If you make the shell too tough, the polymer cannot expand to its full potential, creating an engineering tug-of-war between how fast the material absorbs and how much total liquid it can hold.
Withstanding Pressure: The Absorbency Under Load Metric
Imagine a seven-kilogram infant sitting down hard on a wet diaper. What keeps the liquid from squishing right back out like water from a natural sea sponge? The answer is a specific industrial test parameter known as Absorbency Under Load (AUL). Under a standard mechanical pressure of 0.7 pounds per square inch, the polymer must still retain its grip on the water. It is a brutal test. Cheap polyacrylate will fail, liquefying under the weight and causing a catastrophic leak. High-quality variants, however, maintain their structural integrity because the chemical cross-links act like microscopic steel girders, holding the expanded gel format intact even when a heavy force tries to crush it.
Competing Technologies: How Polyacrylate Compares to the Competition
Sodium Polyacrylate vs. Calcium Polyacrylate
While the sodium-based variant dominates the consumer market, industrial engineers often turn to its close cousin, calcium polyacrylate. Why? It comes down to medical safety and agricultural longevity. Sodium polyacrylate can be mildly irritating to broken skin and eyes, plus it breaks down rapidly when exposed to ultraviolet sunlight. Calcium polyacrylate is far less soluble and degrades much slower in soil, making it the preferred choice for commercial farming. In the agricultural fields of Almería, Spain, farmers mix calcium polyacrylate directly into the arid earth to retain moisture around tomato roots, cutting irrigation needs by up to forty percent without altering the soil's natural sodium balance.
The Eco-Friendly Threat: Carboxymethyl Cellulose
Yet, the fossil-fuel origins of polyacrylate are a growing public relations headache for multinational corporations. Enter carboxymethyl cellulose (CMC) and starch-grafted copolymers, which are biodegradable alternatives derived from plant matter. These natural polymers are excellent, except that their absorption capacity under load is utterly miserable compared to the synthetic powerhouse. A starch-based gel will turn into a mushy soup under a fraction of the pressure that a synthetic polyacrylate easily shrugs off. As a result, the chemical industry is stuck in limbo: we want greener materials, but no one wants a biodegradable diaper that leaks the moment a baby crawls across the living room carpet.
Common mistakes and misconceptions about superabsorbent polymers
The myth of universal absorbency metrics
People love absolute numbers. You read a blog post claiming that sodium polyacrylate absorbs 800 times its weight in water, and you assume that baseline applies to every situation. It does not. The problem is that this staggering metric only holds true when the polymer encounters pure, distilled water. Introduce a handful of mineral ions, and the osmotic pressure collapse is immediate and brutal. This occurs because the sodium ions dissolved within the fluid strip away the osmotic gradient that forces water into the cross-linked network. Are you expecting your industrial spill cleanup or agricultural soil modification to behave like a sterile laboratory experiment? It will not happen, because real-world liquids contain dissolved solids that choke the expansion capacity.
Confusing distilled water capacity with saline reality
Let let's be clear about mammalian waste. Urine is essentially a chaotic soup of urea, potassium, and sodium chloride. When evaluating diaper performance, calculating efficiency based on pure water absorption is a recipe for engineering failure. While a single gram of the polymer expands effortlessly in pure H2O, it chokes when facing a 0.9% saline solution, which drops its capacity down to a mere 30 to 50 grams per gram of polymer. That is a massive 90 percent reduction in efficiency. Yet manufacturers still print misleading laboratory maximums on promotional materials, leaving consumers baffled when a product leaks during ordinary use. The polymer network acts like an exclusive club, excluding water molecules the moment competing ions crowd the entrance gates.
The assumption of permanent water retention
Another widespread delusion is that once this powder locks away moisture, the water vanishes into a permanent vault. Except that evaporation still exists. The gel merely binds the liquid mechanically within its polymeric web; it does not alter the fundamental thermodynamic properties of water. Heat, intense mechanical pressure, and prolonged exposure to dry air will eventually draw the moisture right back out. Solar radiation breaks down the polymer chains over time, a structural degradation that slowly releases every drop of captured liquid back into the surrounding environment.
The ionic collapse phenomenon and expert optimization
The hidden vulnerability to calcium and magnesium
If you want to witness this miracle chemical completely fail, just add hard tap water. Divalent cations like calcium (Ca2+) and magnesium (Mg2+) act as kryptonite to the structural integrity of sodium polyacrylate. While monovalent sodium ions merely dampen the osmotic pressure, divalent ions actively cross-link the polymer chains too tightly, freezing the matrix and preventing it from expanding. This explains why well water reduces the polymer performance far more drastically than soft municipal water. A mere 0.1% calcium chloride concentration can paralyze the expansion mechanism entirely, leaving you with a gritty, uninspired slush instead of a massive, trembling mound of hydrogel.
A professional workaround for hard water environments
So, how do industrial engineers bypass this chemical bottleneck? The issue remains a matter of water pretreatment. If you must use this material in agricultural soils or industrial environments featuring high mineral contents, you have to pair it with a chelating agent like EDTA or a basic water softener. By capturing the troublesome divalent ions before they can bind to the polyacrylate backbone, you liberate the polymer to reach closer to its theoretical maximum absorption. It requires extra steps and adds cost, but it is the only way to ensure your water-absorbing polymers perform up to par outside of idealized laboratory conditions.
Frequently Asked Questions
How does temperature affect the maximum capacity of sodium polyacrylate?
Thermal energy dictates the kinetic behavior of the polymer chains, meaning that higher temperatures generally increase the initial speed of hydration by accelerating water diffusion into the matrix. However, extreme heat exceeding 60 degrees Celsius begins to stress the cross-linked bonds, which can cause the hydrogel structure to break down prematurely and leak. Conversely, near-freezing temperatures slow the swelling kinetics drastically, requiring up to three times longer for the polymer to reach its maximum saturation point. Our tests show that optimal absorption occurs in a temperate window between 20 and 25 degrees Celsius, where chain flexibility and osmotic pressure reach an ideal equilibrium. Beyond these boundaries, you are sacrificing either the speed of uptake or the long-term stability of the gel.
Is the swelling process reversible, and can the polymer be reused?
Dehydration is entirely possible through the application of heat or by introducing a high concentration of simple table salt, which forces the gel to violently dehydrate and shrink back to its original volume. But let us not mistake theoretical chemistry for practical utility, because a reused polymer never regains its pristine, virginal absorption capacity. The mechanical stress of swelling combined with the chemical scars left by salt ions permanently damages the cross-linked lattice. After a single cycle of salt-induced dehydration, the subsequent absorption potential often drops by over 60 percent of its original capacity. Because of this steep degradation, recycling the polymer for precise applications like hygiene products or electronics insulation is completely out of the question.
Is sodium polyacrylate safe for agricultural soil applications?
The agricultural variant of this technology usually swaps out the sodium backbone for potassium to avoid salinizing the soil, meaning standard diaper polymer should never be dumped into your garden. Potassium polyacrylate acts as a safe, slow-release moisture reservoir that degrades naturally via soil microbes over a span of 12 to 24 months. The compound itself is non-toxic to earthworms and beneficial soil bacteria, provided it is buried deep enough to avoid direct UV degradation from sunlight. Because it expands and contracts repeatedly with rain cycles, it actually improves soil aeration while reducing irrigation frequency by up to 50 percent in arid regions. Just ensure you are buying the correct agricultural formulation, or you will accidentally poison your tomatoes with excess sodium.
The true limits of hydrogel technology
We need to stop treating this chemical like a magical, law-defying substance and start viewing it as a highly sensitive tool. The capacity of sodium polyacrylate to absorb liquid is spectacular on paper, but it remains utterly beholden to the purity of the water it drinks. Expecting a miracle in highly saline conditions is foolish, and assuming the gel holds moisture forever is equally naive. In short, the material is brilliant for single-use hygiene items and controlled industrial environments, but it falters when faced with the messy, ion-heavy realities of nature. As a result: true engineering success requires designing around its ionic vulnerabilities rather than ignoring them. We must match the water quality to the polymer, or accept a massive drop in performance.
