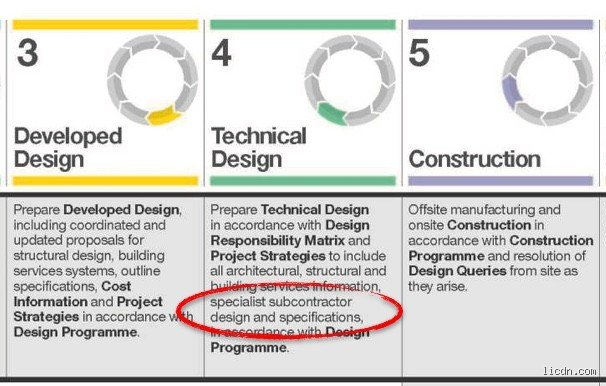

The Anatomy of Technical Design: What Is Stage 4 in Construction Beyond the Glossary?
Let us be real here. Most people think architects just draw pretty pictures, but Stage 4 is where the real, exhausting labor happens. It is the phase where the lead designer coordinates input from structural engineers, mechanical, electrical, and plumbing (MEP) specialists, and acousticians to create a unified, constructible digital twin. If you skip the granular details here, the consequences on-site will be catastrophic. I have seen a £45 million commercial project in Manchester delayed by four months simply because the Stage 4 penetration drawings failed to account for a main HVAC duct intersecting a cellular beam. That changes everything during procurement.
The Transition from Concept to Component
During the previous phase, Stage 3 (Spatial Coordination), the building was given its definitive shape and spatial arrangement. But a coordinated layout is not a buildable kit of parts. Stage 4 demands that every single element—from the specific acoustic performance of internal partitions to the exact fixing mechanism of a bespoke curtain walling system—is specified to a point where a contractor can price it accurately. Except that people don't think about this enough: you are no longer drawing a wall; you are specifying the density of the mineral wool insulation, the gauge of the metal studs, and the exact type of intumescent sealant required to maintain a two-hour fire rating.
The Two Halves of the Stage 4 Puzzle
Where it gets tricky is that Stage 4 is rarely a single, monolithic block of time. It is frequently split into Stage 4i (Pre-Tender) and Stage 4ii (Post-Tender), depending on the chosen procurement route. If you are using a traditional Joint Contracts Tribunal (JCT) contract, the design team completes almost the entire technical package before the project goes out to tender. Yet, under a Design and Build (D&B) framework, the employer's team might only produce a 60% complete Stage 4 pack—often called the Employer’s Requirements—before handing the reins over to the main contractor, who then retains their own specialists to finish the job. Which explains why so many arguments happen in modern construction; who actually owns the liability when a detail fails?
Granular Deliverables: What Does a Stage 4 Technical Package Actually Look Like?
You cannot build a skyscraper with good intentions, which means Stage 4 lives and dies by its data outputs. We are talking about thousands of drawing sheets, hundreds of pages of NBS (National Building Specification) documents, and highly complex Building Information Modeling (BIM) files. This is not just about lines on paper. It involves embedding data into 3D objects so that a quantity surveyor can extract exact material quantities. As a result: the sheer volume of information can overwhelm teams that are not prepared for the rigors of Level 2 BIM compliance or ISO 19650 workflows.
The Structural and MEP Overlap
This is where the magic—and the stress—happens. The structural engineer produces final reinforcement drawings for concrete poured insitu, while the MEP engineer finalizes the plant room layouts and cable tray routing. Have you ever tried fitting a 600mm diameter smoke extract duct through a ceiling void that only has 450mm of clear space because someone forgot to account for the structural steel flanges? It happens all the time. This clash detection process is the core of Stage 4. Teams run automated algorithms in software like Navisworks to find thousands of spatial conflicts, resolving them digitally before a single piece of metal is cut in a factory.
The Rise of the Manufacturing Specification
Modern buildings are increasingly manufactured rather than just built. Stage 4 must now account for Design for Manufacture and Assembly (DfMA) principles. This means creating specialized fabricator drawings. For a recent residential development in East London, the Stage 4 package included digital files sent straight to a CNC machine in Austria for pre-cutting cross-laminated timber (CLT) panels. We are far from the days of master masons figuring out details on a whim with a piece of chalk on a brick wall.
The Procurement Chaos: How Stage 4 Intersects with Tendering and Cash Flow
The relationship between what is stage 4 in construction and the commercial realities of a project is fraught with tension. Experts disagree on exactly how much information is enough to safely lock down a price. Some asset managers demand 100% design completion before signing a construction contract, believing it eliminates risk. Honestly, it's unclear if that ever truly works because site conditions are inherently unpredictable. But a highly detailed Stage 4 pack is your best weapon against the dreaded variations—those nasty line-item cost increases that contractors submit when they find gaps in the architectural intent.
Traditional Procurement vs Design and Build Dynamics
In a traditional setup, the Stage 4 package forms the basis of the Bill of Quantities. Contractors look at the exact specifications and submit a hard lump-sum bid. This gives the client price certainty, but it takes months to prepare. But if the client is in a rush, they opt for Design and Build, fast-tracking the process by tendering at early Stage 4. The main contractor takes the incomplete drawings, adds a risk premium to their price, and then hires their own architects to finish the technical design. The issue remains: the client often loses control over the finer finishes because the contractor will inevitably substitute specified items for cheaper alternatives of equivalent performance to protect their profit margin.
Alternative Frameworks: How the RIBA System Compares to Global Standards
While the United Kingdom and many Commonwealth nations swear by the RIBA Plan of Work, the global construction industry uses different maps to navigate this technical terrain. It is worth looking at how others define this phase to understand its universal importance. The terminology changes, but the underlying engineering necessity remains identical.
The American AIA System and LOD Standards
In the United States, the American Institute of Architects (AIA) breaks design down differently, using phases like Design Development (DD) and Construction Documents (CD). Stage 4 maps directly onto the Construction Documents phase. Here, American teams rely heavily on the concept of Level of Development (LOD). While Stage 3 generally operates at LOD 300—where elements are graphically defined with accurate quantities and size—Stage 4 pushes the project firmly into LOD 400 territory. At LOD 400, components are detailed with specific manufacturing, assembly, and installation information. Hence, an American LOD 400 drawing of a precast concrete beam includes the exact location of lifting eyes, rebar spacers, and weld plates, matching the rigors of a British Stage 4 output.
Common Pitfalls and Costly Misconceptions in Technical Design
The Illusion of the "Final" Blueprint
Many developers assume that entering stage 4 in construction means their architectural vision is entirely locked in stone. It is not. This phase, often mapped to the RIBA Plan of Work as Technical Design, is less about aesthetic grandeur and far more about cold, hard engineering calculus. The problem is that clients frequently treat these highly specific schematic documents as mere administrative boxes to check before breaking ground. Except that a single miscalculated structural load or an overlooked HVAC duct routing can instantly invalidate your entire spatial layout. Coordination failure between MEP and structural elements accounts for up to 65% of preventable change orders during active excavation. If your electrical engineer places a main cable tray right through a steel beam because they used outdated 3D models, the physical reality on-site becomes a logistical nightmare. Let's be clear: a building is a living machine, not a static drawing.
Confusing Manufacturing Reality with Design Intent
Another classic blunder involves treating the technical design stage as a substitute for actual shop drawings. Why do smart project managers fall for this? Because the boundary between a comprehensive tender package and a subcontractor’s fabrication model is notoriously blurry. Contractors routinely receive architectural packages that look incredibly detailed, yet they completely lack the precise fabrication tolerances needed for the factory floor. For example, a precast concrete panel requires exact millimeter-precise anchor points that general architects simply cannot calculate without the specific manufacturer's input. When you skimp on this transition, site progress grinds to a catastrophic halt.
The Hidden Lever: Procurement Alignment and Early Vendor Engagement
Unlocking Value Before the Shovel Hits the Dirt
Expert project managers look at stage 4 architectural deliverables not just as a compliance shield, but as a weapon for financial optimization. The issue remains that traditional procurement routes silo the design team from the supply chain until the entire package is theoretically complete. What if the global market is experiencing a massive 40% spike in structural steel lead times? By integrating specialist subcontractors during the live compilation of your technical design dossier, you can adapt your specifications dynamically to market realities. Early Supplier Involvement (ESI) can compress overall project schedules by up to 18%, a staggering metric when dealing with high-interest construction loans. But can you actually convince stubborn, traditionalist design teams to collaborate with manufacturers this early in the game? It requires a cultural shift, though the fiscal rewards are undeniable. We have seen projects save millions simply by switching from a bespoke curtain wall to an engineered modular system that achieved the exact same thermal performance value of 1.2 W/m²K.
Frequently Asked Questions Regarding Technical Design
How much does stage 4 in construction typically cost as a percentage of the total budget?
While early concept phases consume relatively low financial resources, the technical design phase demands a significant chunk of your soft costs due to the sheer volume of engineering hours involved. Typically, technical design phase expenditures eat up roughly 4% to 7% of the total construction budget, which translates to nearly 35% to 50% of the overall architectural and engineering fee allocation. For a standard 20,000-square-meter commercial office development with an estimated capital expenditure of 40 million dollars, this specific phase alone represents an investment of roughly 1.6 to 2.8 million dollars. These funds directly finance localized geotechnical validation, complex building envelope acoustic testing, and highly specialized building information modeling coordination. As a result: skamping on this upfront expenditure is a statistically proven recipe for compounding financial disaster during the later physical phases.
What specific approvals must be secured before exiting this detailed planning milestone?
Navigating the regulatory labyrinth during this phase requires securing both statutory building control approvals and detailed planning condition discharges from local municipalities. You must submit comprehensive structural calculations, calculated energy performance certificates, and rigorous fire strategy maps to certified building inspectors to prove compliance with updated life-safety codes. Simultaneously, the client must formally sign off on the final technical specifications ledger alongside the cost consultant's updated pre-tender estimate. It is at this precise moment that the risk registry is updated, formally transferring specific design liabilities to the lead contractor if utilizing a Design and Build procurement mechanism. In short, you cannot legally or financially proceed to the procurement stage without these stamped, verified clearances.
How does Building Information Modeling change the workflow during this specific period?
Building Information Modeling fundamentally transforms this phase from a historical exercise in drafting flat 2D lines into a highly dynamic, multi-dimensional clash detection simulation. Instead of manually overlaying structural drawings onto plumbing schematics over a light table, advanced algorithms automatically flag spatial conflicts down to a tolerance of five millimeters. BIM Level 2 compliance protocols dictate that every single object within the virtual model contains live data, including specific manufacturing lead times, acoustic ratings, and embedded carbon metrics. (This asset data proves invaluable later for the facilities management team once the keys are handed over.) Consequently, the time spent resolving digital coordination clashes during this phase reduces physical on-site rework by an astonishing 25%, proving that pixels are significantly cheaper to destroy than poured concrete.
The Verdict on Construction Phase Grouping
The technical design phase is where architectural fantasies go to die or, if managed with brutal precision, where they acquire the structural DNA to actually survive. We must reject the outdated notion that this phase is merely a technical translation of a creative concept. It is the definitive crucible of project viability. If you treat this stage as a bureaucratic checklist rather than the core operational engine of your build, you are actively inviting delays, litigation, and spiraling variations. Yet the industry continues to rush through it, driven by impatient capital and unrealistic deadlines. Do not compromise here. A flawless execution during this intense period of engineering coordination is the single greatest predictor of a predictable, profitable, and structurally sound delivery on the field.
