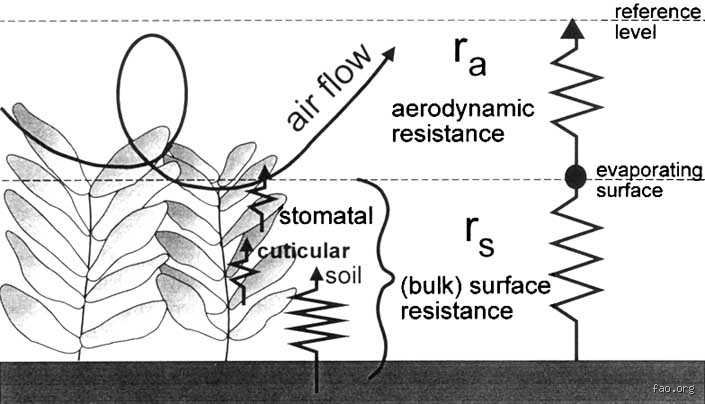

Conceptual resistance-circuit diagram of the Penman-Monteith model. www.fao.org

Among the myriad empirical and theoretical equations developed over the past century to estimate reference evapotranspiration, the Penman-Monteith method stands unchallenged as the undisputed global gold standard. Adopted internationally by organizations such as the Food and Agriculture Organization (FAO-56 standard) and the American Society of Civil Engineers (ASCE), this robust mathematical framework bridges the gap between energy balance physics and aerodynamic mass transfer.

The Historical Evolution of Evapotranspiration Estimation

To truly appreciate what the Penman-Monteith method is used for today, one must first understand the historical vacuum it filled. Before the mid-20th century, scientists relied on crude empirical formulas (such as Thornthwaite or Blaney-Criddle equations) that depended heavily on local temperature data alone. While these methods were convenient for regional planning, they routinely failed when applied across diverse climates because temperature is only one piece of a vastly complex puzzle. Evapotranspiration is fundamentally driven by net solar radiation, wind speed, atmospheric humidity, and atmospheric pressure.

In 1948, British physicist Howard Penman made a monumental breakthrough by combining the energy balance approach with mass transfer (aerodynamic) principles. Penman’s original equation successfully eliminated the need for difficult-to-measure surface temperature data by mathematically tying energy fluxes directly to weather station measurements. However, Penman’s formula was originally derived for open water surfaces, saturated bare soils, or very short, uniform grass crops. When applied to tall, dense vegetation canopies, the equation systematically underestimated water loss because it ignored the physiological regulation of plant stomata.

Because energy and aerodynamics are inextricably linked in the lower atmosphere, isolating evaporation rates required a brilliant fusion of thermodynamics and fluid dynamics. But early formulations lacked a crucial parameter accounting for the physiological regulation imposed by living plant tissues. And this single mathematical refinement transformed agricultural engineering forever when John Monteith stepped in.

The Monteith Modification: Introducing Canopy Resistance

In 1965, agricultural physicist John L. Monteith revolutionized the field by incorporating plant physiology into Penman's framework. Monteith introduced two pivotal resistance terms: aerodynamic resistance ($r_a$), which quantifies how easily water vapor is transported away from the crop surface into the turbulent atmosphere above, and surface resistance ($r_s$, often referred to as canopy resistance), which represents the resistance of vapor flow through the stomatal openings of plant leaves and the underlying soil matrix.

By treating the vegetation canopy as a single big leaf acting as a parallel electrical resistance circuit (originally published in Monteith's seminal 1965 paper on evaporation and environment), the modified equation could accurately simulate transpiration across any vegetative cover. How else could scientists reconcile the invisible dance of water vapor escaping from microscopic stomata with macroscopic weather patterns spanning hundreds of square kilometers? The Penman-Monteith equation successfully bridged microscopic cellular biology with macroscopic meteorological physics.

Core Mathematical Components of the Equation

The standardized FAO-56 Penman-Monteith equation for reference crop evapotranspiration ($ET_0$) is expressed as:

Where each variable represents a vital physical parameter:

• $ET_0$: Reference evapotranspiration ($ext{mm d}^{-1}$)

• $R_n$: Net radiation at the crop surface ($ext{MJ m}^{-2} ext{day}^{-1}$)

• $G$: Soil heat flux density ($ext{MJ m}^{-2} ext{day}^{-1}$)

• $T$: Mean daily air temperature at $2 ext{ m}$ height ($^\circ ext{C}$)

• $u_2$: Wind speed at $2 ext{ m}$ height ($ext{m s}^{-1}$)

• $e_s$: Saturation vapor pressure ($ext{kPa}$)

• $e_a$: Actual vapor pressure ($ext{kPa}$)

• $e_s - e_a$: Saturation vapor pressure deficit ($ext{kPa}$)

• $\Delta$: Slope of the vapor pressure curve ($ext{kPa }^\circ ext{C}^{-1}$)

• $\gamma$: Psychrometric constant ($ext{kPa }^\circ ext{C}^{-1}$)

Primary Practical Applications in Modern Hydrology and Agriculture

The versatility and physical rigor of the Penman-Monteith method make it indispensable across multiple scientific and industrial domains.

1. Irrigation Scheduling and Precision Agriculture

In arid and semi-arid regions where water scarcity threatens food security, over-irrigation wastes valuable water and leaches vital nutrients below the root zone, while under-irrigation stunts crop growth. Agricultural engineers and farmers use Penman-Monteith-derived $ET_0$ values multiplied by specific crop coefficients ($K_c$) to calculate exact daily water requirements for crops like maize, wheat, vineyards, and orchards. This ensures optimal soil moisture maintenance, maximizing crop per drop.

2. Water Resource Management and Basin Hydrology

Water authorities, watershed managers, and environmental agencies deploy the method to model catchment water balances. By subtracting actual evapotranspiration estimates from precipitation inputs, hydrologists can accurately estimate effective groundwater recharge, reservoir inflows, and river discharge rates, supporting sustainable allocation policies.

3. Drought Monitoring and Early Warning Systems

Meteorological agencies track cumulative reference evapotranspiration deficits to identify flash droughts and long-term hydrological droughts. Because elevated temperatures combined with low humidity and high winds rapidly spike $ET_0$, the method serves as a sensitive leading indicator of agricultural stress before visible wilting occurs in the field.

3. Practical Applications in Precision Agriculture and Irrigation Management

The primary operational domain of the Penman-Monteith method is modern agricultural water management, where precision is paramount for optimizing crop yields while conserving finite water resources. Because over-irrigation leads to nutrient leaching, root-zone anoxia, and wasted energy, and under-irrigation induces severe drought stress that permanently stunts plant development, farmers and agronomists rely on accurate evapotranspiration ($ET$) estimates to schedule irrigation precisely.

• Dynamic Irrigation Scheduling: Rather than relying on fixed calendar days, growers use daily or weekly Penman-Monteith calculations (often standardized as $ET_0$) combined with crop-specific coefficients ($K_c$) to determine exact water depletion. The crop water requirement is calculated using the formula:

  $$ET_c = ET_0 imes K_c$$

  This allows irrigation systems to adapt dynamically to shifting weather patterns, wind speeds, and seasonal temperature fluctuations.

• Smart Farming and Automated Systems: Modern pivot irrigation systems and IoT-enabled drip networks integrate real-time weather station data directly into cloud platforms running the Penman-Monteith algorithm. This automation ensures that water is delivered precisely when and where it is needed, minimizing runoff and evaporation loss.

• Drought Preparedness and Risk Mitigation: During periods of meteorological drought, agricultural boards use historical and real-time Penman-Monteith data to monitor soil moisture depletion rates. This enables early warnings for agricultural drought declarations and helps allocate water rights fairly among competing stakeholders.

4. Hydrology, Watershed Modeling, and Environmental Assessment

Beyond the farm gate, the Penman-Monteith method serves as a fundamental building block in macro-scale hydrological and environmental studies. Water resource managers, civil engineers, and climatologists require precise evaporation estimates to balance regional water budgets and model watershed dynamics.

• Rainfall-Runoff Modeling: In hydrological models such as SWAT (Soil and Water Assessment Tool) or HEC-HMS, accurate representation of evapotranspiration is critical. Because evaporation acts as the primary loss term in a watershed budget—stripping water from soil and vegetation before it can reach streams—precise $ET$ modeling ensures that streamflow and flood forecasting models remain accurate.

• Reservoir and Lake Management: Managing storage levels in multi-purpose reservoirs requires accounting for open-water evaporation. While the original Penman equation or specialized lake evaporation variants are often applied, the principles embedded in the canopy resistance adaptations of Penman-Monteith help engineers predict evaporative losses from large water bodies under changing climatic conditions.

• Climate Change Impact Assessments: As global temperatures rise and atmospheric vapor pressure deficits shift, researchers use the Penman-Monteith framework to project future water scarcity. By feeding climate model outputs (temperature, radiation, humidity, wind speed) into the equation, scientists can simulate how future climate scenarios will impact agricultural viability and regional hydrological cycles.

5. Technical Limitations, Assumptions, and Data Challenges

Despite its widespread acceptance as an international standard, the Penman-Monteith method is not without limitations. Understanding these constraints is vital for avoiding systemic calculation errors in specialized environments.

• High Data Dependency: The complete form of the equation requires a robust suite of meteorological inputs, including solar radiation, air temperature, relative humidity, and wind speed measured at a standard height of two meters. In developing regions or remote areas where weather stations are sparse or poorly maintained, obtaining continuous, high-quality data can be extremely challenging.

• Assumptions Regarding Canopy Resistance: The standard FAO-56 Penman-Monteith equation assumes a hypothetical reference crop: an extensive surface of green, well-watered grass of uniform height (0.12 meters), an active growth stage, and a fixed surface resistance of $70 \, ext{s m}^{-1}$. When applying this to complex natural ecosystems, multi-story forests, sparse arid vegetation, or stressed crops, the fixed resistance parameters break down, requiring localized calibration or advanced dynamic modeling.

• Advection Effects: The method assumes a uniform upwind fetch where boundary layer conditions have fully adjusted to the surface type. In fragmented landscapes—such as small irrigated fields surrounded by hot, dry deserts (the oasis effect)—localized horizontal heat transfer (advection) can cause actual evapotranspiration to significantly exceed the potential rates calculated by the standard formula, unless specialized adjustments are made.

6. Modern Tools, Software, and Remote Sensing Integration

To overcome traditional data collection hurdles and expand the utility of the Penman-Monteith method, modern researchers and practitioners leverage advanced computational tools and satellite-based remote sensing.

• Dedicated Software and Code Libraries: Hydrologists rarely calculate Penman-Monteith by hand. Standardized software packages like REF-ET and various open-source libraries in Python (such as PyETo) and R streamline the process, allowing users to ingest raw meteorological datasets and automatically compute reference evapotranspiration across large spatial and temporal scales.

• Surface Energy Balance and Remote Sensing ($SEBAL$, $METRIC$): While traditional weather stations provide point measurements, satellite imagery allows for spatial mapping of evapotranspiration. Advanced models combine thermal infrared imagery (to estimate surface temperature) with vegetation indices and the energy balance components of the Penman-Monteith framework. This enables scientists to map regional water consumption down to individual fields without needing a dense network of ground weather stations.

7. Conclusion: The Enduring Legacy of the Penman-Monteith Standard

The Penman-Monteith method represents a masterclass in bridging theoretical physics with practical environmental science. By successfully integrating both the aerodynamic mass-transfer principles and the surface energy balance, it transformed how humanity understands water movement between the Earth's surface and the atmosphere.

Whether it is optimizing irrigation schedules to feed a growing global population, managing complex river basins under the pressure of climate change, or mapping regional water stress via satellite observations, the Penman-Monteith method remains an indispensable cornerstone of modern hydrology and agricultural engineering. Its blend of physical rigor and operational adaptability ensures its place as the gold standard for evapotranspiration estimation for decades to come.
