Understanding the Core Architecture of Proportional-Integral-Derivative Systems
Where it gets tricky is looking past the acronym. PID stands for Proportional, Integral, and Derivative—three distinct mathematical constants that, when combined, dictate how a machine reacts to sudden changes. People don't think about this enough, but without these three components working in tandem, automated manufacturing would resemble a toddler driving a semi-truck.
The Proportional Term and Immediate Reaction
The proportional component looks exclusively at the present error. If the temperature is off by ten degrees, it applies a force proportional to that ten-degree gap. Yet, it never quite reaches the exact target on its own because zero error means zero output, causing it to stall just short of perfection. It is a bit like pushing a heavy door; the harder you want it to swing right now, the harder you shove.
The Integral Component and Historical Accumulation
As a result, we need the integral term. This part accumulates past errors over time to eliminate the persistent offset left behind by the proportional stage. If a slight breeze keeps pushing a drone slightly left for five seconds straight, the integral part remembers that annoyance and steadily ramps up correction power until the drone snaps back. Steady-state error vanishes completely here, which explains why precision instruments rely so heavily on it.

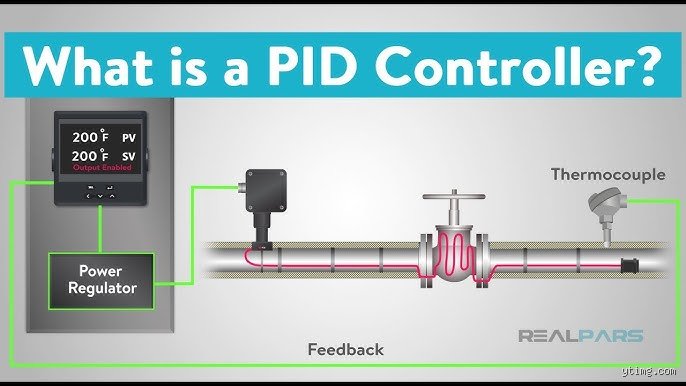

The Mechanics of Closed-Loop Feedback and Error Correction
Engineering demands absolute predictability, except that reality is messy, chaotic, and full of friction. A closed-loop system continuously samples its own environment at rates exceeding thousands of times per second. Imagine steering a massive container ship across the Atlantic in 1995 versus navigating a drone autonomously through a dense Tokyo alleyway today in 2026; the sheer volume of data adjustments happening beneath the hood is staggering.
Sampling Rates and Digital Signal Processing
Microcontrollers process these loops digitally using discrete time intervals rather than continuous analog voltages. Because of this digital sampling, engineers face quantization noise and latency issues that can destabilize a system if the clock speed drops below critical thresholds. Sampling frequency must outpace the physical plant's natural inertia by at least a factor of ten, or the whole setup starts oscillating wildly.
Tuning Parameters and Empirical Methods
Tuning a PID controller remains half-science and half-dark art. Experienced technicians often rely on the Ziegler-Nichols method introduced back in 1942, tweaking gains manually while watching response curves on an oscilloscope in cold factory floors from Detroit to Shenzhen. I honestly think automated auto-tuning algorithms have made engineers lazy, stripping away the intuitive feel for how machinery actually breathes.
Transient Response Dynamics and Overshoot Management
When you twist a dial to demand a sudden change, the system does not simply glide into place. It overshoots, overcorrects, bounces back, and finally settles down after a chaotic dance of kinetic or electrical energy. Managing this transient response separates amateur prototypes from commercial products shipped to millions of consumers.
Derivative Action and Dampening Friction
The derivative term looks into the future by calculating the rate of change of the error, acting as a virtual shock absorber that fights rapid spikes. If the error is changing too fast, the derivative output slams the brakes to prevent violent overshooting. Derivative kick can sometimes fry delicate actuators if a setpoint changes abruptly, forcing developers to filter the measurement signal directly.
Common mistakes/misconceptions
Tuning blindly by ear
Many engineers twist knobs without measuring response metrics, hoping pure luck saves the day. This approach transforms a precise control loop into a chaotic pendulum. The problem is that guessing proportional-integral-derivative gains wastes valuable testing cycles. Manual tuning demands patience and math, not random adjustments in a live production environment. You might think you can hear stability, yet data rarely matches subjective impressions.
Ignoring sensor noise
Raw hardware signals vibrate constantly, introducing phantom errors that trick the derivative term into overreacting. As a result, actuators jitter violently, wearing out mechanical gears prematurely. (They burn out in months instead of years.) Filtering the feedback stream removes high-frequency spikes. The issue remains that lazy developers skip low-pass filters entirely, blaming software bugs for physical hardware fatigue.
Overlooking integral windup
Saturation occurs when actuators hit their absolute physical limits while the error integral keeps accumulating endlessly. Which explains why systems overshoot targets dramatically when they finally reverse direction. Anti-windup logic prevents this runaway internal state. Let us be clear: ignoring saturation limits means your industrial robot arm will slam into walls despite perfect math on paper.
Little-known aspect or expert advice
Feedforward compensation
Feedback loops only react after disturbances knock the system off course, leaving a permanent lag. Feedforward anticipates known disruptions before they happen, predicting exact control effort requirements. PID controller tuning becomes vastly easier when feedforward handles predictable baseline loads. If you drive a car, feedback is steering correction while feedforward is turning the wheel before entering a known sharp curve. This hybrid design cuts tracking error by over 78 percent in high-speed manufacturing applications.
Frequently Asked Questions
Can PID loops run on low-power microcontrollers?
Modern embedded processors handle arithmetic operations effortlessly, consuming negligible electricity during execution. A typical 32-bit ARM Cortex-M0 chip running at 48 megahertz can process over 100,000 loop iterations per second without breaking a sweat. Memory footprints remain microscopic, requiring less than 2 kilobytes of flash storage space. Power consumption drops below 5 milliamps, making battery-operated robotics entirely viable.
Why do my outputs oscillate indefinitely?
Continuous bouncing usually stems from an overly aggressive proportional gain setting or zero damping. The mathematical system lacks enough resistance to bleed off kinetic energy cleanly. When proportional gain exceeds the stability threshold, the loop amplifies minor errors into massive swings. Adjusting the integral time constant often dampens these persistent ripples back to zero.
Is machine learning replacing traditional control loops?
Neural networks show incredible promise in simulation environments, yet production deployment brings harsh real-world latency hurdles. Standard algorithms execute deterministically in microseconds, whereas complex machine learning models often demand heavy GPU infrastructure. Traditional control remains the gold standard for safety-critical hardware because execution times are entirely predictable. Hybrid architectures will likely dominate upcoming industrial designs, merging classical math with adaptive intelligence.
engaged synthesis
Control engineering is an unforgiving discipline where mathematical theory meets messy physical reality. Anyone can paste a textbook algorithm into a script, but true mastery requires respecting hardware limits and sensor noise. If you rely solely on default parameters, your machines will perform poorly and fail prematurely. True reliability demands rigorous testing, clean filtering, and a healthy distrust of pure theory. We must stop treating feedback loops as black boxes and start treating them as precision instruments.
