The Deceptive Nature of CH3COOH: What We Get Wrong About Weak Acids
People don't think about this enough: a weak acid does not mean a weak corrosive agent. In the realm of industrial chemistry, we use the term "weak" purely to describe how a molecule dissociates in water. Acetic acid, or CH3COOH as chemists prefer to scrawl it, holds onto its hydrogen atoms much tighter than a bully like hydrochloric acid does. Yet, that changes everything when it comes to metallurgy.
The Disassociation Paradox in Industrial Piping
Because it does not fully ionize, a massive reservoir of undissociated acid remains waiting in the wings. As the tiny fraction of free hydrogen ions attacks the metal surface and gets consumed, the remaining molecules split apart to replenish them. It is a relentless, tag-team assault on the iron matrix. I have seen standard carbon steel pipes at a processing facility near Houston, Texas turn into something resembling Swiss cheese within less than a year because someone assumed a non-mineral acid would play nice.
How Concentrated Glacial Acetic Acid Alters the Equation
Where it gets tricky is at the far end of the spectrum. Pure, water-free glacial acetic acid behaves completely differently at room temperature because it lacks the moisture needed to drive the electrochemical reaction. The issue remains that the moment this substance sucks up even a trace amount of atmospheric moisture—which it does greedily—the corrosion rates skyrocket. It is this volatile flip-flop between passive and hyper-aggressive states that keeps plant engineers awake at night.
The Electrochemical Breakdown: How Acetic Acid Corrodes Steel from Within
Let us look at the actual mechanics of the destruction. The corrosion of steel by acetic acid is fundamentally an electrochemical process where the iron ($Fe$) shifts from a solid, stable structural element to a soluble ion ($Fe^{2+}$) that washes away into the process stream. The anodic reaction is simple dissolution, but the cathodic side is a chaotic dance of hydrogen evolution.
Anodic Dissolution and the Failure of Protective Oxides
On carbon steel, the acid swiftly destroys the naturally occurring, fragile iron oxide film that keeps the atmosphere from eating the metal. Once that barrier falls, the exposed iron reacts directly with the acetate ions to form ferrous acetate, a highly soluble corrosion product. The metal simply thins out, millimeter by millimeter. This uniform thinning is easy to track with ultrasonic thickness gauges, but it is expensive to fix when you have to replace 500 meters of jacketed piping.
The Hydrogen Permeation Threat at High Pressures
But what about the hydrogen? When the hydrogen ions pick up electrons from the steel, they form atomic hydrogen ($H$). Instead of immediately bubbles forming and floating away as harmless $H_2$ gas, a terrifyingly high percentage of these tiny atoms diffuses straight into the crystal lattice of the steel. This triggers hydrogen embrittlement. Have you ever seen a massive, thick-walled steel vessel snap like a dry twig under pressure without warning? That is the result of hydrogen blistering, a hidden cancer born from the acidic reduction reaction.
Alloy Depletion at Elevated Temperatures
The situation gets significantly worse when the process temperature crosses the 60°C threshold. At this point, the kinetic energy of the system increases exponentially, accelerating the diffusion of corrosive species through any stagnant boundary layers. Even high-grade 304 stainless steel, which thrives on building a protective chromium oxide layer, starts to lose its grip as the acetic acid actively strips away the chromium from the surface, leaving a raw, vulnerable iron-nickel base behind.
Stainless Steel Dilemmas: When 304 and 316 Fail the Test
We often treat stainless steel as a magical shield against chemical attack, yet we are far from it when organic acids reach their boiling points. A common specification mistake is choosing 304 stainless steel for hot acetic systems. It is a recipe for fiscal disaster.
Pitting and Crevice Corrosion in Dead Legs
In stagnant zones of a refinery—often called dead legs—chlorides often pool alongside the acetic acid. This combination is lethal to 316 stainless steel. The molybdenum in 316, usually clocked at around 2% to 3%, provides decent defense against pure acetic acid up to its boiling point, except that the presence of even 50 ppm of chlorides completely disrupts this passivity. The result: microscopic pits that tunnel deep into the vessel wall while the surrounding surface looks pristine.
Stress Corrosion Cracking under Mechanical Loads
Which explains why structural stress combined with this acidic environment leads to sudden, catastrophic failures. When a pipe is under tensile stress—either from internal pressure or simple thermal expansion—and it meets hot acetic acid, chloride-induced stress corrosion cracking can tear through the grain boundaries of the metal. It occurs at temperatures as low as 50°C if the acid concentration hovers in the intermediate 30% to 70% range, which happens to be the exact window where the chemical is most conductive.
Comparing Carbon Steel Against CRAs in Severe Acid Environments
To put this in perspective, we have to look at the massive chasm in performance between basic structural steels and Corrosion Resistant Alloys (CRAs) through the lens of empirical data. The numbers do not lie, though experts disagree on the exact economic tipping points for replacement schedules.
Corrosion Rate Metrics: MPY and MM/Y
In a standard 50% acetic acid solution at a modest 25°C, ordinary carbon steel dissolves at a rate often exceeding 50 mils per year (mpy), which translates to over 1.25 millimeters of lost metal annually. In contrast, Alloy 20 or Hastelloy C-276 exhibits a corrosion rate of less than 0.1 mpy under identical parameters. Hence, selecting carbon steel for anything beyond highly diluted, cold waste streams is essentially an agreement to run a continuous maintenance circus.
The Hidden Traps of Formic Acid Impurities
The real nightmare, honestly, it's unclear until you run a full composition analysis of your process fluid, is the presence of formic acid. Formic acid is a common byproduct in acetic acid production loops, and it is a far stronger reducer. Even a tiny 0.5% contamination of formic acid in a boiling acetic stream can double the corrosion rate of 316 stainless steel, forcing engineers to bypass standard stainless options altogether and source expensive nickel-base alloys or titanium.
Common Misconceptions in Metal Degradation
The Myth of Stainless Steel Immunity
Many plant operators assume that specifying stainless steel solves everything. It does not. While 304 stainless steel resists highly diluted organic acids at room temperature, increasing the temperature changes the game entirely. Acetic acid corrodes steel rapidly when the thermal threshold crosses $60^\circ ext{C}$, causing severe pitting. You cannot simply rely on the word "stainless" to protect your infrastructure. The oxide layer is resilient, yes, but specific organic formulations strip it bare, leaving the underlying iron vulnerable to aggressive localized attack.
The Distilled Water Dilution Fallacy
Does lowering the concentration reduce the danger? Paradoxically, no. Diluting a 99% glacial concentration down to a 20% aqueous solution actually increases conductivity and ion mobility. The problem is that water facilitates the dissociation of hydrogen ions, which accelerates the anodic dissolution of the metal matrix. Vinegar acid attack on iron reaches its peak aggressiveness at mid-range dilutions rather than at maximum purity. Believing that a weaker solution is inherently safer is a dangerous trap that leads to catastrophic pipeline failures.
Assuming Uniform Corrosion Rates
Engineers often calculate lifespans based on uniform millimeter-per-year wastage. Except that organic acids rarely behave so predictably. Instead, they trigger localized phenomena like stress corrosion cracking and crevice degradation. A pipe can look pristine on 95% of its surface while a microscopic fissure penetrates the remaining wall thickness. Chemical weathering of steel alloys by volatile organics manifests in hidden zones, making standard ultrasonic thickness gauging insufficient for accurate risk assessment.

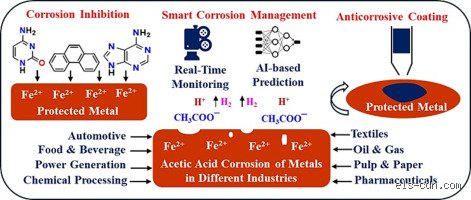

Advanced Metallurgical Mitigation Strategies
Synergistic Inhibition Engineering
How do we stop this insidious degradation without replacing entire networks with exotic titanium alloys? The answer lies in proprietary surfactant chemistry. Introducing organic amines into the stream creates a monomolecular hydrophobic barrier over the metal. This film prevents the acetate ions from interacting with the iron atoms. But we must admit our limits here: these inhibitors fail under high shear stress or turbulent flow regimes where fluid velocity mechanically strips the protective chemical layer away.
The Role of Molybdenum Additions
When standard carbon options fail, upgrading to grade 316 stainless steel provides a massive leap in survivability. The secret is the 2% to 3% molybdenum content within the crystal lattice. This specific element stabilizes the passive film against low-pH organic streams, reducing the rate of ethanoic acid metal destruction by a factor of ten compared to standard 304 grades. Let's be clear: it is an expensive metallurgical upgrade, yet the reduction in unscheduled facility downtime justifies the initial capital expenditure.
Frequently Asked Questions
What is the exact corrosion rate of carbon steel in a 10% acetic acid solution?
At a ambient temperature of $25^\circ ext{C}$, standard AISI 1020 carbon steel experiences a harsh degradation rate averaging between 1.5 and 2.2 millimeters per year. This value spikes exponentially if the fluid velocity exceeds 1.5 meters per second due to erosion-corrosion dynamics. Oxygenation of the solution also doubles these metrics because dissolved oxygen acts as a powerful depolarizer at the cathodic sites. As a result: utilizing unprotected carbon steel in this specific chemical environment guarantees mechanical failure within months.
Can aluminum be used as a budget-friendly alternative to steel for storage?
Aluminum forms a highly stable aluminum oxide film that offers excellent resistance to pure glacial acetic acid at room temperature. However, if water contamination introduces moisture above a 0.2% threshold, this protective passivity dissolves. The metallic vessel will then suffer rapid catastrophic perforation, rendering aluminum incredibly risky for dynamic industrial processes. In short, while it seems like a clever cost-cutting alternative to expensive alloys, it represents a ticking regulatory time bomb.
Does post-weld heat treatment reduce the risk of acid attack?
Yes, thermal stress relief significantly mitigates localized vulnerability around welded joints. Unannealed welds contain high residual tensile stresses and altered grain boundaries that are highly susceptible to intergranular acetic acid alloy corrosion. Heating the fabricated component to $650^\circ ext{C}$ homogenizes the microstructure and disperses chromium carbide precipitates. Which explains why non-treated process piping always fails directly adjacent to the weld seams rather than in the main body of the pipe.
Definitive Engineering Synthesis
We must abandon the archaic notion that organic acids are mild lookalikes of mineral acids. Acetic acid corrodes steel with a sneaky, non-linear progression that mocks traditional safety margins. Choosing the wrong alloy or miscalculating fluid temperatures leads straight to structural disaster. Our firm stance is that relying on carbon steel for anything beyond trace amounts of this chemical is absolute engineering negligence. Industry must mandate molybdenum-bearing alloys or specialized polymeric linings as the baseline standard. Half-measures only guarantee that the corrosive reality of the acetate ion will eventually break your system.
