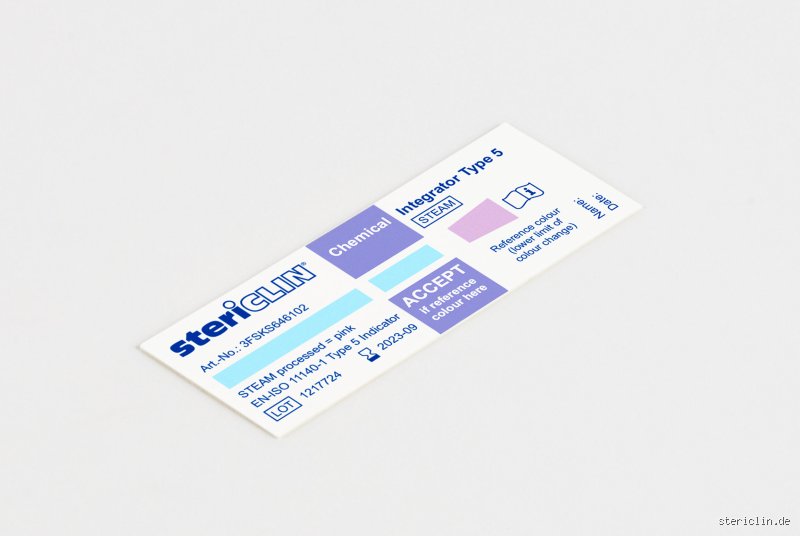

Demystifying the Autoclave Watchdog: Defining the Type 5 Integrating Indicator
Let us be entirely honest here. Most people, even some green hospital technicians fresh out of school, confuse chemical indicators with absolute proof of sterility. They are not the same thing. A Type 5 integrating indicator does not look for live bugs; rather, it evaluates the harsh environment inside the chamber to ensure the bugs could not possibly have survived. ISO 11140-1:2014 standards govern these little strips, classifying them as integrating indicators because they integrate the three critical parameters of steam sterilization into a single visual result.
The Triad of Steam Variables
For a cycle to work, steam must hit a specific temperature, maintain it for a precise duration, and penetrate the load at the correct pressure. If your autoclave reaches 132 degrees Celsius but drops pressure for just forty seconds, the whole batch is compromised. That changes everything. The Type 5 indicator relies on a chemical pellet that melts and migrates along a visible track. This physical movement only completes its journey if the thermal and moisture conditions perfectly mimic the destruction curve of Geobacillus stearothermophilus, the gold-standard reference spore. It is a brilliant piece of analog engineering operating in a digital world.
Why Type 4 and Type 6 Do Not Cut It Here
Where it gets tricky is understanding the hierarchy. Type 4 indicators only react to two variables, which makes them cheap but notoriously unreliable for complex surgical packs. On the flip side, Type 6 emulating indicators are calibrated to very specific, narrow cycles, meaning they lack flexibility. I find the blind reliance on Type 6 indicators in some European clinics quite baffling, given their rigid nature. Type 5 bridges this gap by offering a broad response across a wide spectrum of temperatures, from 121 degrees Celsius to 135 degrees Celsius. It behaves like a biological indicator without the annoying twenty-four-hour incubation delay.
The Physics of the Melt: How Type 5 Sterilization Indicators Actually Work
The magic inside a Type 5 integrating indicator is actually a masterclass in thermodynamics, far removed from the basic color-changing ink you find on cheap grocery store receipts. Imagine a tiny, precision-engineered chemical pellet encapsulated within a steam-permeable membrane. As saturated steam enters the autoclave chamber, it penetrates this pouch. The moisture and heat work in tandem to liquefy the chemical compound at a highly predictable rate. Once melted, the liquid is drawn along a paper wick via capillary action, much like spilled coffee climbing up a paper towel. But the paper towel in this case is a calibrated measuring tape for sterility.
The Kinetics of Chemical Migration
This migration is not random. The chemical formulation is intentionally dialed in to parallel the D-value—the time required to reduce a microbial population by ninety percent—of the toughest bacterial spores known to medicine. Because the steam must pass through the top template layer before it can even touch the pellet, the rate of melting is directly proportional to the quality of the steam. Is the steam too dry? The pellet stays solid. Did the temperature plunge for a minute because of a faulty valve in a hospital basement in Chicago? The liquid stops moving, failing to reach the "Accept" window. The issue remains that if your steam quality drops below 97 percent saturated vapor, the indicator catches the flaw instantly, long before a surgeon makes the first incision.
Reading the Moving Front vs. Color Reversal
People don't think about this enough, but interpreting a sterilization test should not require a degree in fine arts. Older indicator generations relied on subtle color shifts, leading to endless arguments between technicians over whether a strip was "dark blue" or "greenish-black." Type 5 indicators eliminate this human error by utilizing a moving front. The liquid either crosses the line into the safe zone, or it does not. Yet, some old-school practitioners still resist this transition, clinging to subjective color charts because that is how they have done it since 1995. This stubbornness is where nuance contradicts conventional wisdom: the high-tech digital autoclave display might tell you the cycle was perfect, but the physical migration of that tiny chemical pellet is the raw, unvarnished truth.
The Financial and Clinical Calculus of Deploying Type 5 Monitors
Every central sterile supply department operates under a crushing budget, balancing pennies against patient outcomes. A single Type 5 indicator strip costs significantly more than a basic Type 1 process indicator tape. Consequently, some facility administrators look at the line-item expense and flinch. But looking at the raw cost of paper strips is a foolish way to run a hospital. When you factor in the financial catastrophe of a single surgical site infection—which can easily top 50,000 dollars in extended care and legal liabilities—the cost of a premium indicator becomes statistical noise.
Inside the Pack vs. Inside the Chamber
Where should these indicators actually live? Placing a strip on the outside of a wrapped tray tells you absolutely nothing about the conditions inside that tray. It merely proves the package went through the machine. To get real data, technicians must place the Type 5 indicator in the geometric center of the densest pack, buried beneath surgical towels and heavy stainless steel clamps. This is the ultimate stress test. If the steam can find its way to the heart of that linen pack and trigger the indicator, you can rest easy knowing the instruments are truly safe for patient use.
How Type 5 Chemical Indicators Measure Up Against Biological Reality
To truly understand the landscape, we have to compare Type 5 integrating indicators to the undisputed king of sterilization monitoring: the biological indicator. Biological indicators contain actual, live bacterial spores that must be incubated after the cycle to see if anything grows. It is the most definitive test possible, except that it takes time. In a fast-paced medical center, waiting hours for a spore test to cook before releasing an orthopedic tray is an operational nightmare. Hence, the Type 5 indicator steps in as a surrogate surrogate, providing immediate readout clarity that mimics the biological challenge with incredible precision.
The Equivalent Performance Standard
According to international medical guidelines, a Type 5 indicator must demonstrate a performance that correlates directly with the death curve of a biological indicator. This means the chemical reaction is engineered to require a higher dose of sterilization assurance than what is technically needed to kill the spores, providing a built-in safety margin. In short, if the Type 5 passes, the biological indicator almost certainly will too. But honestly, it's unclear why more hospitals don't use them as a dual-verification system for every single load rather than just relying on them for implant cycles. The reality is that while a biological indicator remains the legal standard for releasing implants, the Type 5 integrating indicator provides the real-time operational security that keeps the surgical schedule moving without sacrificing patient safety.
